1971-1976 Mazda Troubleshooting Manual - Rotary Engine with Emission Control

Price $29.00 $23.20 Details W: 8.5 x H: 11 x D: 0.3125 Weight 0.88 lbs. Page Count 100+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45061
Flat US shipping rate: $8.95
Flat International shipping rate: $33.35

---

Description

1971-1976 Mazda Troubleshooting Manual - Rotary Engine with Emission Control System. Original.

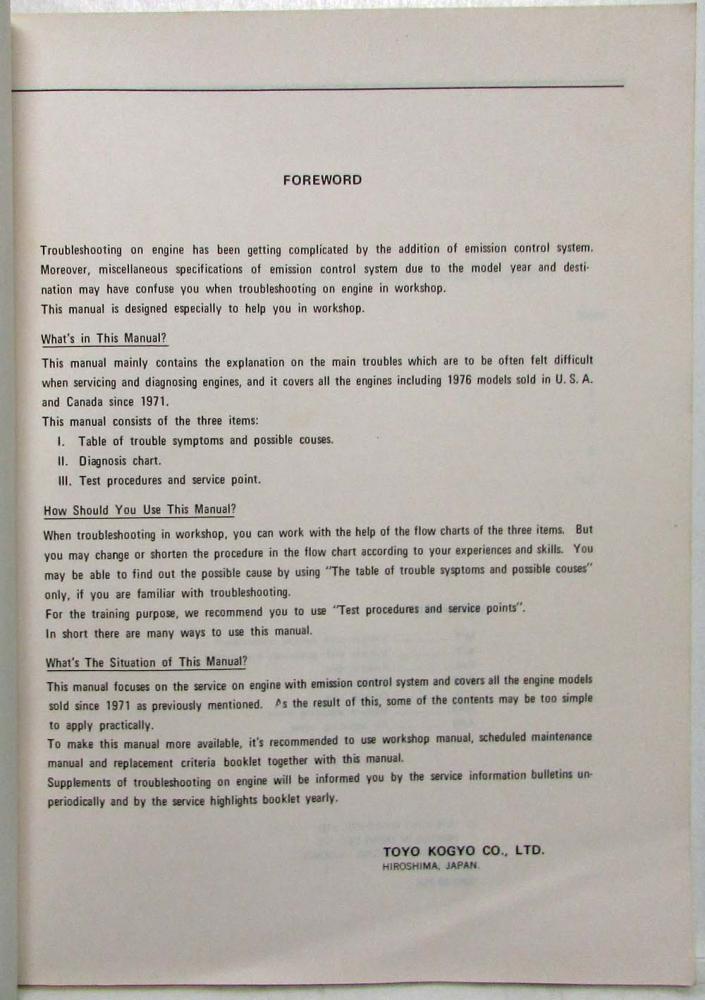

Troubleshooting on engine has been getting complicated by the addition of emission control system. Moreover, miscellaneous specifications of emission control system due to the model year and destination may have confuse you when troubleshooting on engine in workshop.

This manual mainly contains the explanation on the main troubles which are to be often felt difficult when serivicing and diagnosing engines, and it cover all the eingings including the 1976 models sold in the U.S.A. and Canada since 1971.

This manual consists of three items:

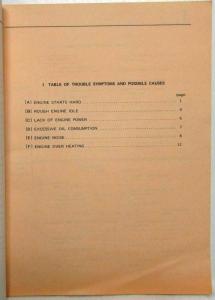

Table of symptoms and possible causes.
Diagnosis Chart
Test procedures and service point.

Contents:

Rotary Engine

Introduction
Apex Seal
Corner Seal
Oil Pump
Water Pump
Thermostat
By-Pass Control Valve
Intake Manifold
Side Housing
Rotor Housing
Distributor
Spark Plug
Rotar, Oil Seal & O-Ring
Stationary Gear
Eccentric Shaft
Thermal Reactor

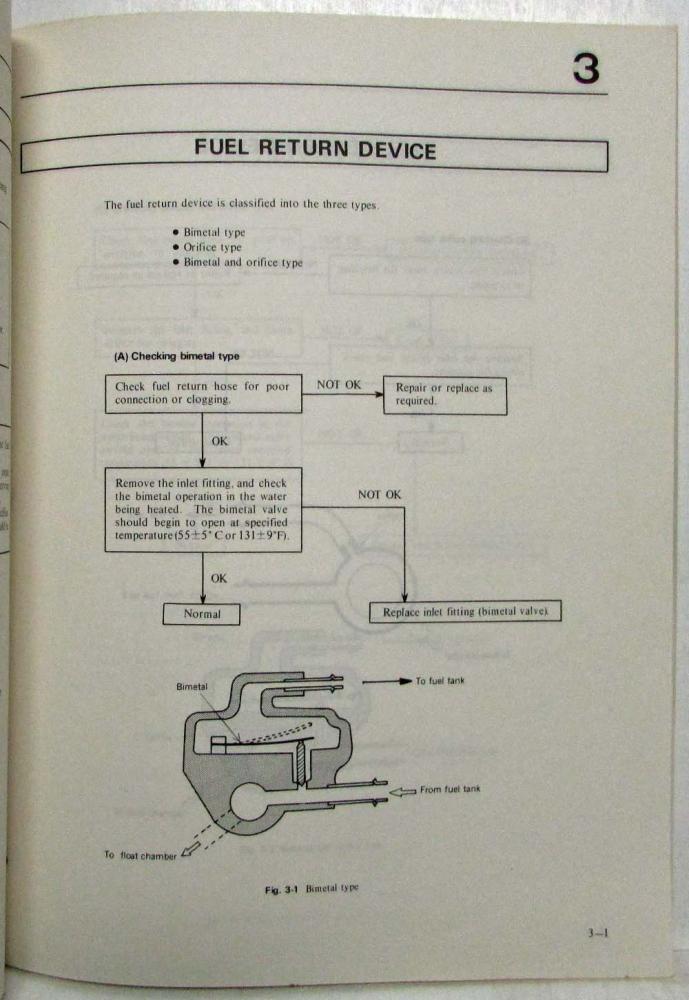

Fuel System

Vacuum Ports and Carburetor
13B - Carburetor
12A - Carburetor

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.

Out of Stock.
