1977 Mazda 808 (1600-1300) Electrical Wiring Diagram

Price $19.00 $15.20 Details W: 8.25 x H: 11.75 x D: 0.125 Weight 0.38 lbs. Page Count 22 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45305 OEM Number 5521-10-76H In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $33.35

Description

1977 Mazda 808 (1600-1300) Electrical Wiring Diagram. Original.

1977 Mazda 808 (1600-1300) Electrical Wiring Diagram. This manual was used by the Mazda Dealership technicians to help diagnose and identify electrical problems on the 808.

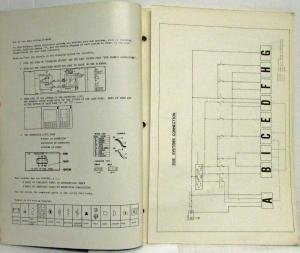

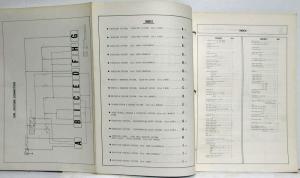

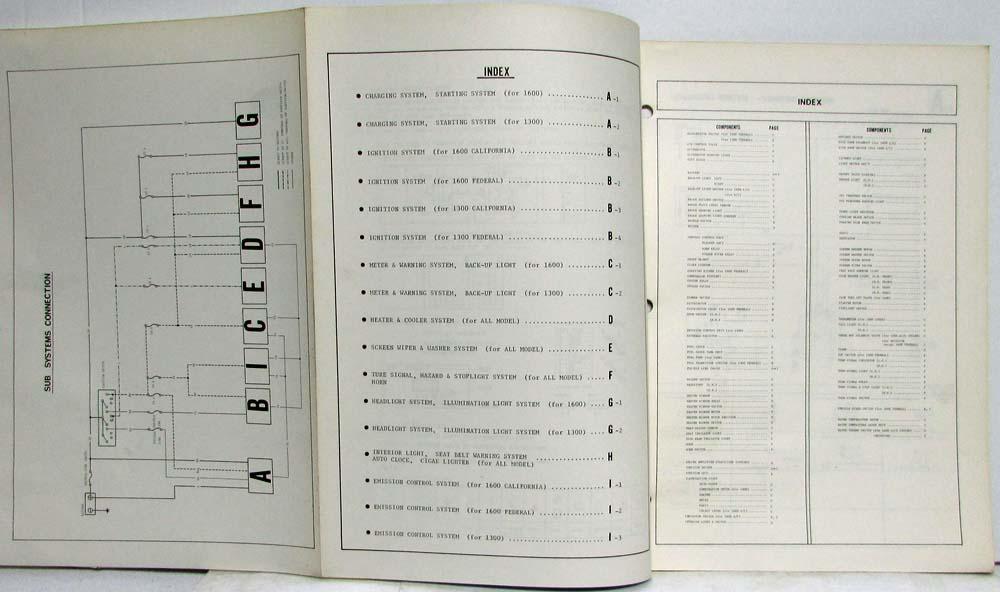

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
