1977 Subaru 1600 Service Shop Repair Manual - Engine & Body - April 1977 Edition

Price $34.05 $27.24 Details W: 8.5 x H: 11 x D: 1.25 Weight 2.88 lbs. Page Count 600+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-51361 OEM Number SML57US April 1977 In Stock
Flat US shipping rate: $14.95
Flat International shipping rate: $79.55

---

Description

1977 Subaru 1600 Service Shop Repair Manual - Engine & Body. MSA-108 April 1977 Edition. Original.

Note: Service manuals can be valuable tools when working on and/or restoring a vehicle. For the uninitiated, keep in mind that these manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments (even today).

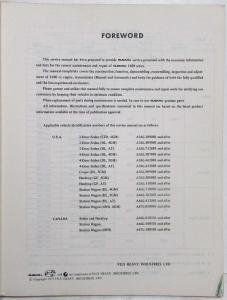

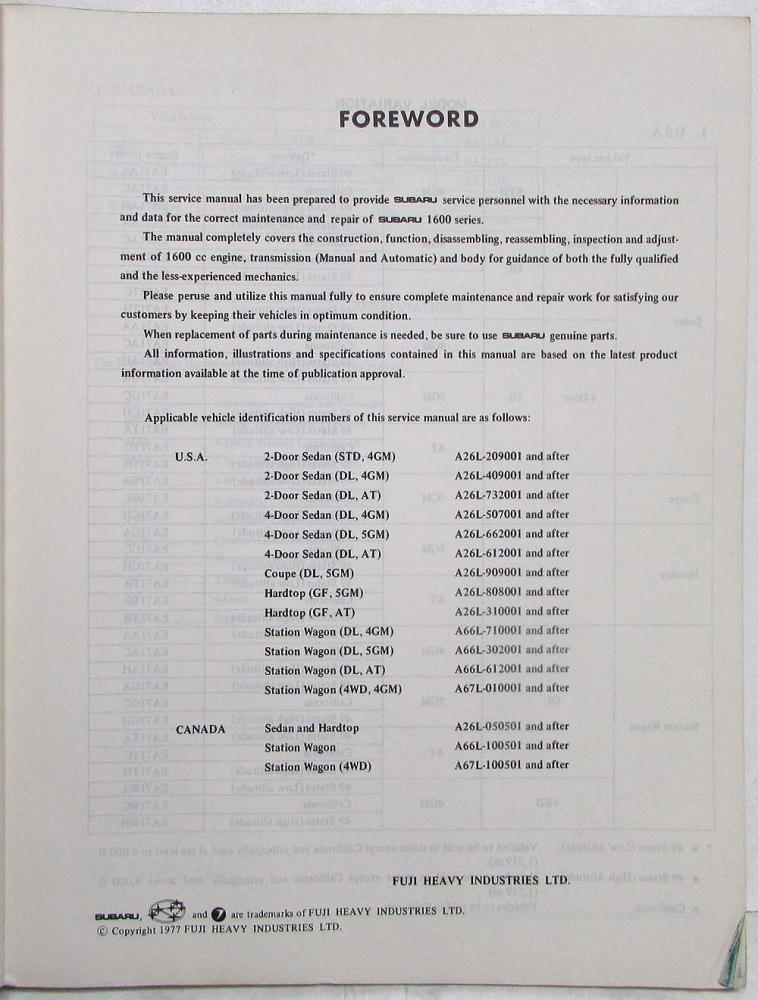

This service manual has been prepared to provide Subaru service personnel with the necessary information and data for the correct maintenance and repair of Subaru 1600 series.
This manual completely covers the construction, function, disassembling, reassembling, inspection and adjustment of engine, transmission (Manual and Automatic) and body for guidance of both the fully qualified and the less-experienced mechanics.

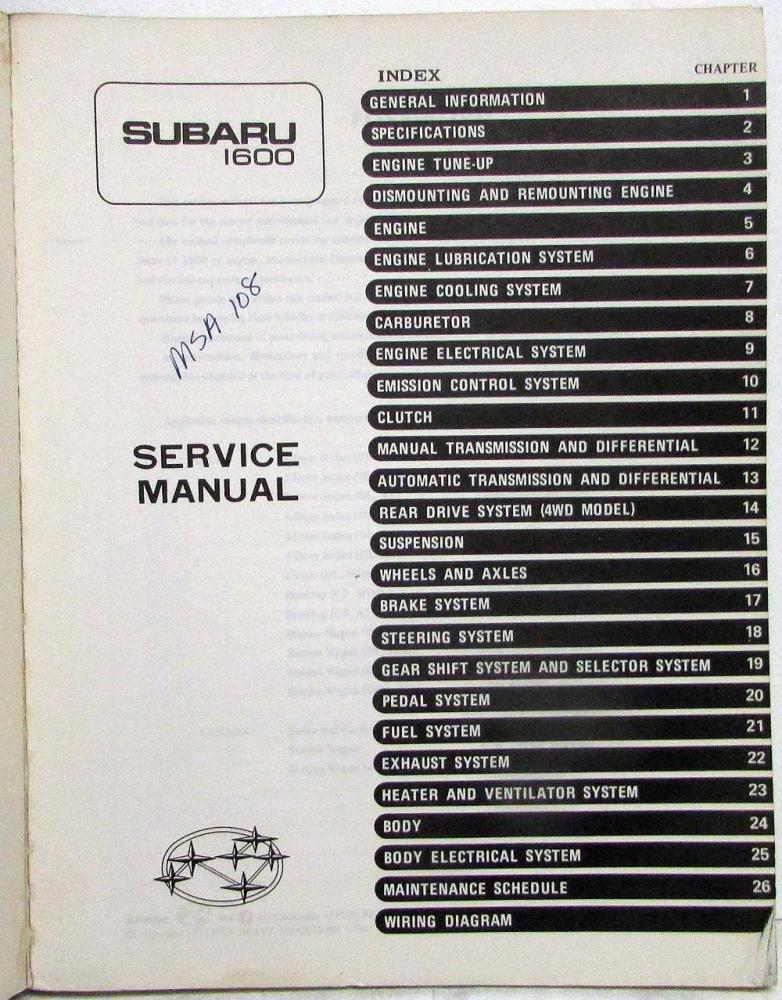

Contents:

General Information
Specifications

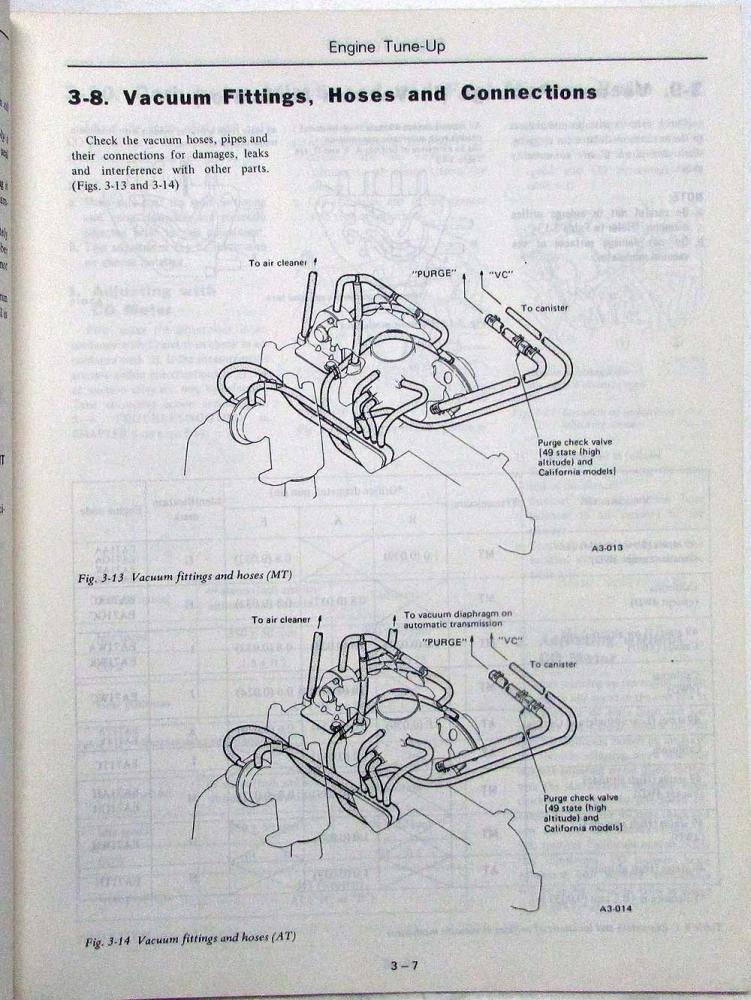

Engine Tune-Up
Dismounting and Remounting Engine
Engine
Engine Lubrication System
Engine Cooling System

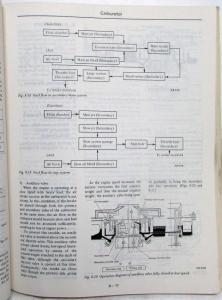

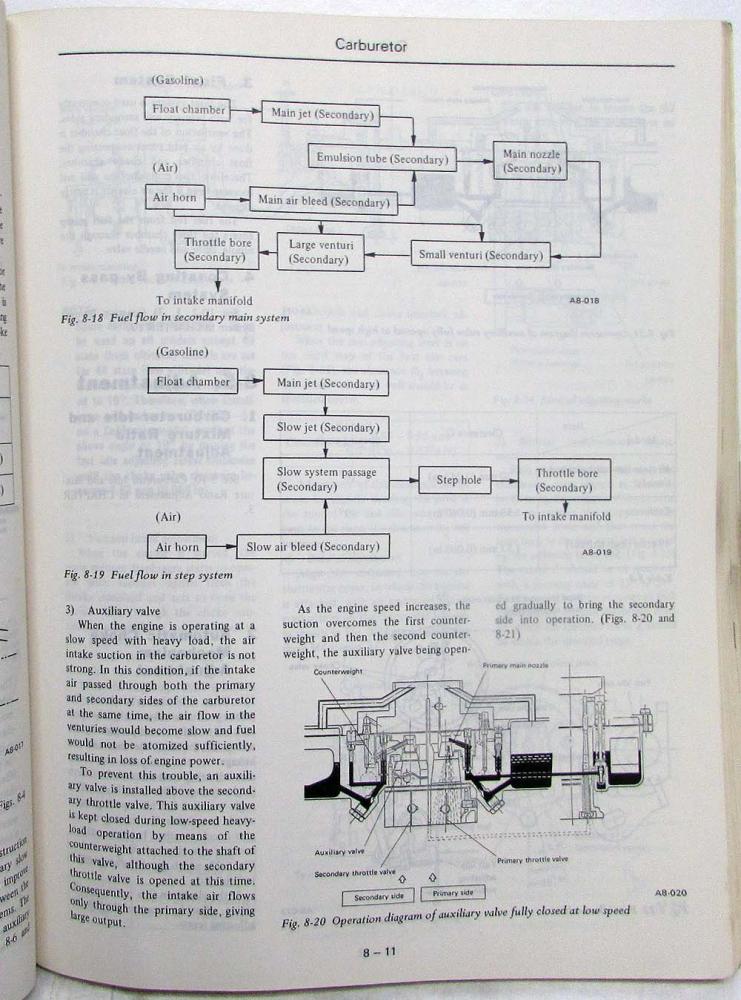

Carburetor
Engine Electrical System
Emission Control System
Clutch

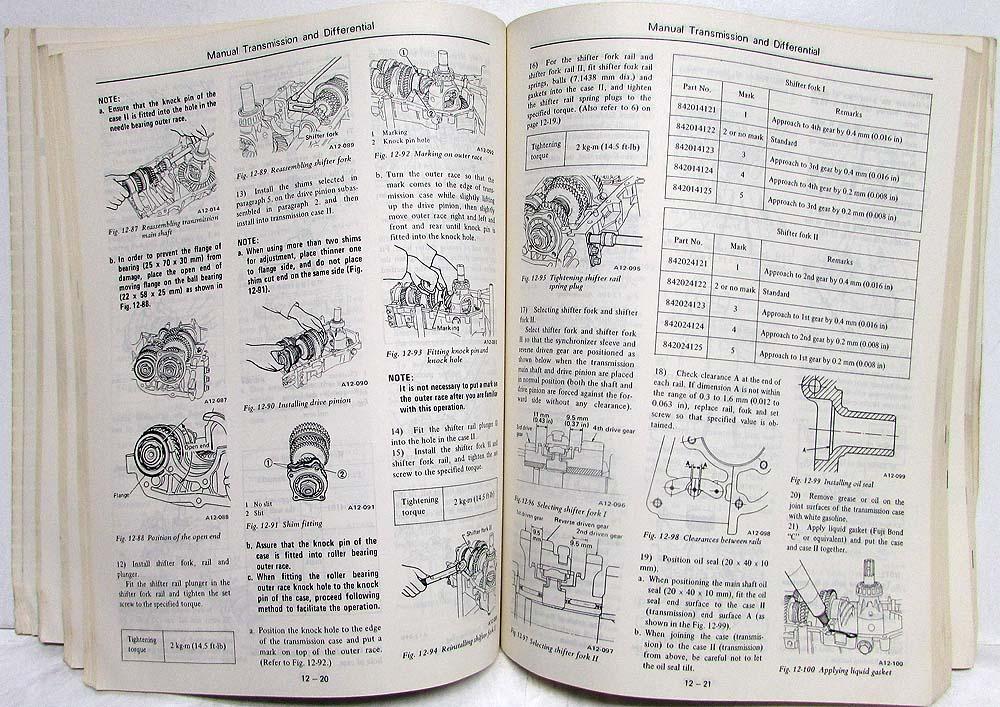

Manual Transmission and Differential
Automatic Transmission and Differential
Rear Wheel Driving System (4WD Model)
Suspension
Wheels and Axles
Brake System
Steering System
Gear Shift System and Selector System
Pedal System
Fuel System
Exhaust System
Heating and Ventilator System
Body
Body Electrical System
Maintenance Schedule
Wiring Diagram

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
