1979 Mazda 626 Wiring Diagram

Price $19.00 $15.20 Details W: 8.25 x H: 11.75 x D: 0.1 Weight 0.25 lbs. Page Count 20 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45068 OEM Number 5564-10-78J In Stock
Flat US shipping rate: $5.95
Flat International shipping rate: $22.00
Description

1979 Mazda 626 Wiring Diagram. Original.

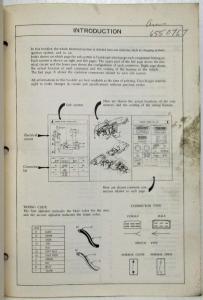

In this booklet, the whole electrical system is divided into sub systems, such as charging system, ignition system, and so on.

Index:
A. Charging System. Starting System

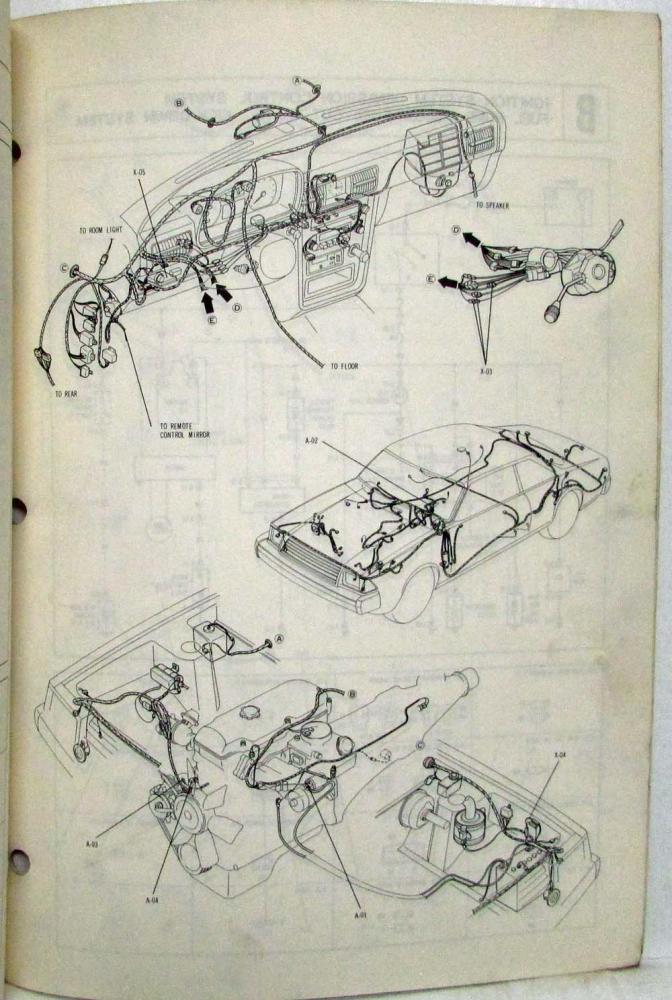

B. Ignition System. Emission Control System. Fuel Pump. Slow Fuel Cut Valve. Kick-Down System.
C. Meter and Warning System
D. Wiper and Washer System.

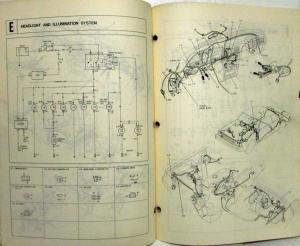

E. Headlight and Illumination System
F. Signal Light System. Horn.
G.Heater System. Heated Window System. Stereo. Radio.
H. Seat Belt Warning System. Room Light. Auto Clock. Luggage Compartment Door Release Motor. Luggage Compartment Light. Cigarette Lighter.
I. Remote Control Mirror.

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
