1983 Honda Prelude Electrical Troubleshooting Service Manual

Price $24.00 $19.20 Details W: 8.5 x H: 11 x D: 0.5 Weight 1.19 lbs. Page Count 175+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-30339 OEM Number 61SB000EL In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $28.20
Description

1983 Honda Prelude Electrical Troubleshooting Service Manual. ORIGINAL.

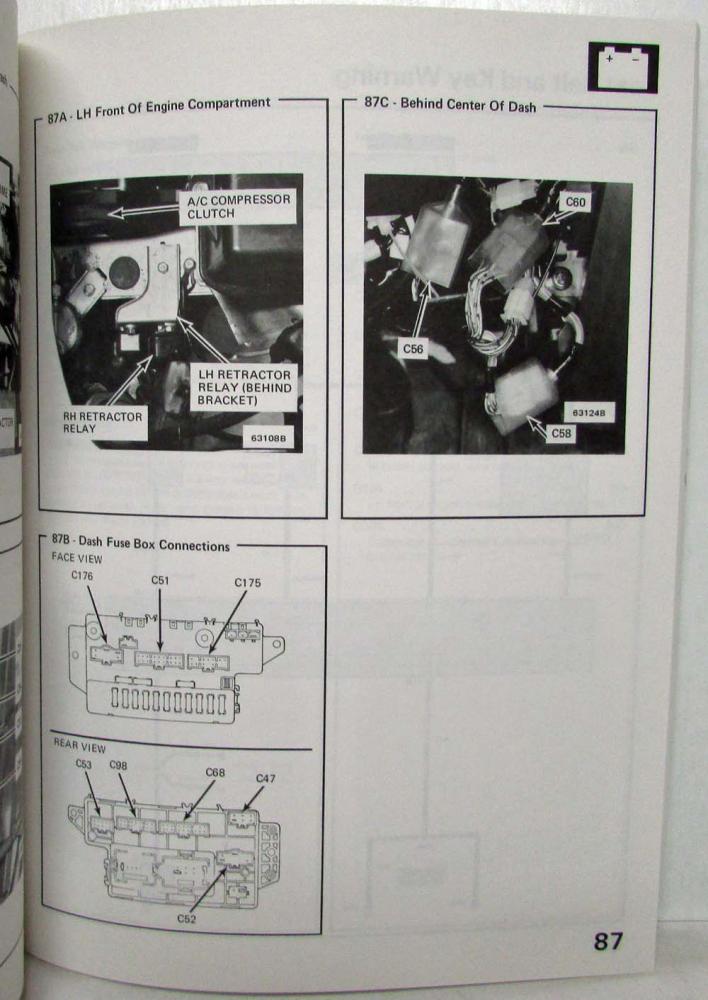

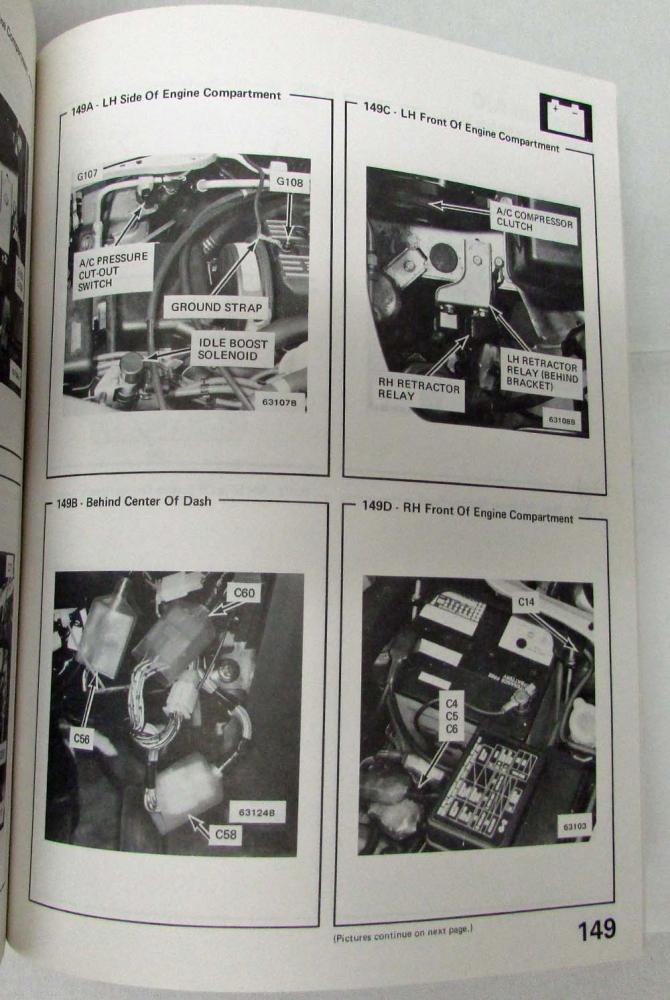

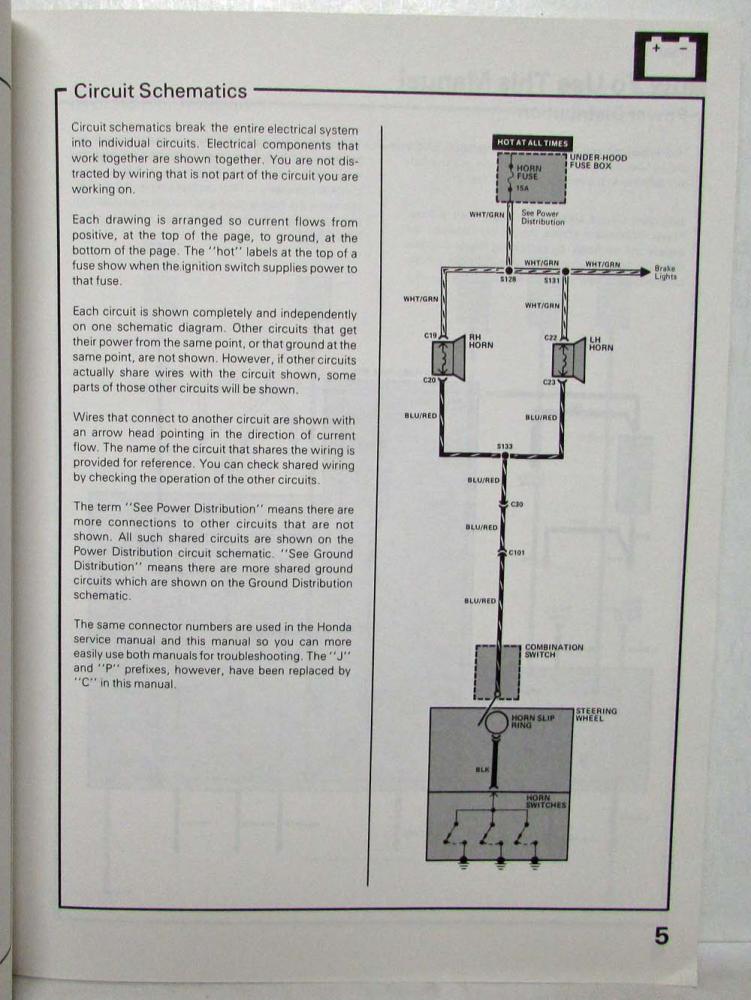

To make troubleshooting easier, this manual divides the Prelude electrical system into separate circuits. The schematic diagram for each circuit is followed by a component location index, and photographs that show the location of components on the car. Complicated circuits also include a description of how the circuit works.

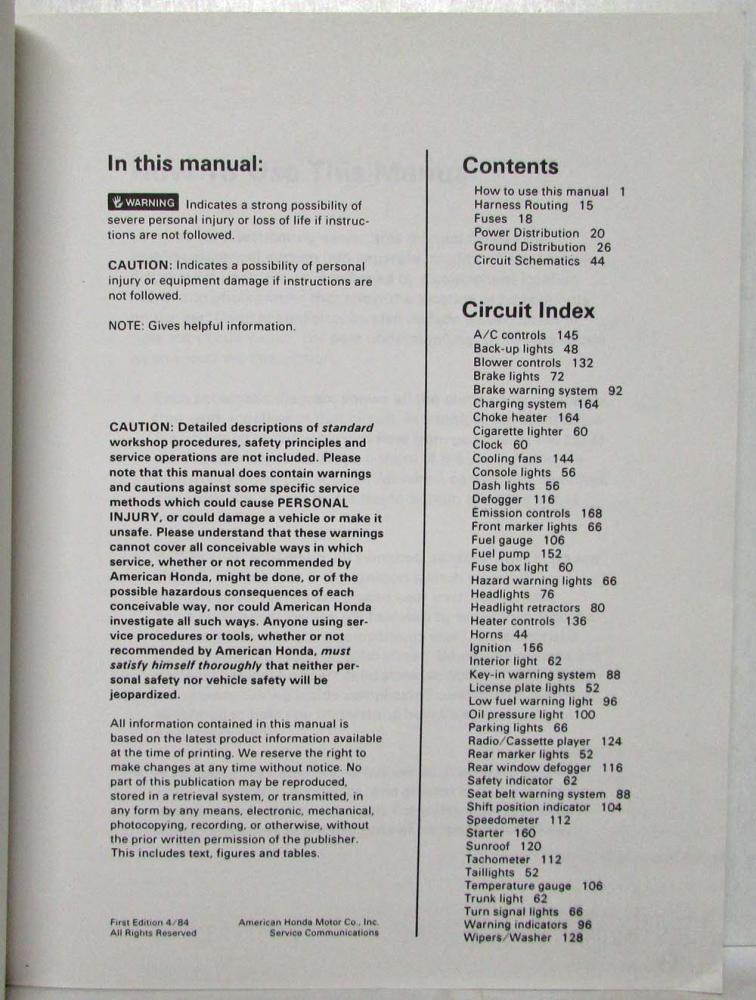

Contents:
How to use this manual
Harness Routing
Fuses
Power Distribution
Ground Distribution
Circuit Schematics

Condition: Service Manuals have been used in Dealerships, Independent Garages and in Fleet Environments and thus reflect such use, most often showing signs of soiling and may show other signs of age and wear, but the information within is still legible and can give valuable insight in the care and maintenance of vehicles. This copy has some scuffing on the cover, mostly on the back. And someone has put permanent marker over one of the numbers on the back cover. The images shown are reflective of the of kind of condition one might find of manuals that are shipped.
