1984-1986 Audi CIS Electronic Fuel Injection Service Training Information 2nd Ed

Price $29.00 $23.20 Details W: 8.5 x H: 11 x D: 0.1875 Weight 0.50 lbs. Page Count 68 Condition Used Original - Good Item Type Promotional Material Inventory Number SM-56404 OEM Number WSP 521-142-00 Printed 6/86
Flat US shipping rate: $8.95
Flat International shipping rate: $34.00

---

Description

1984-1986 Audi CIS Electronic Fuel Injection Service Training Information. 2nd Edition. Original.

Contents:

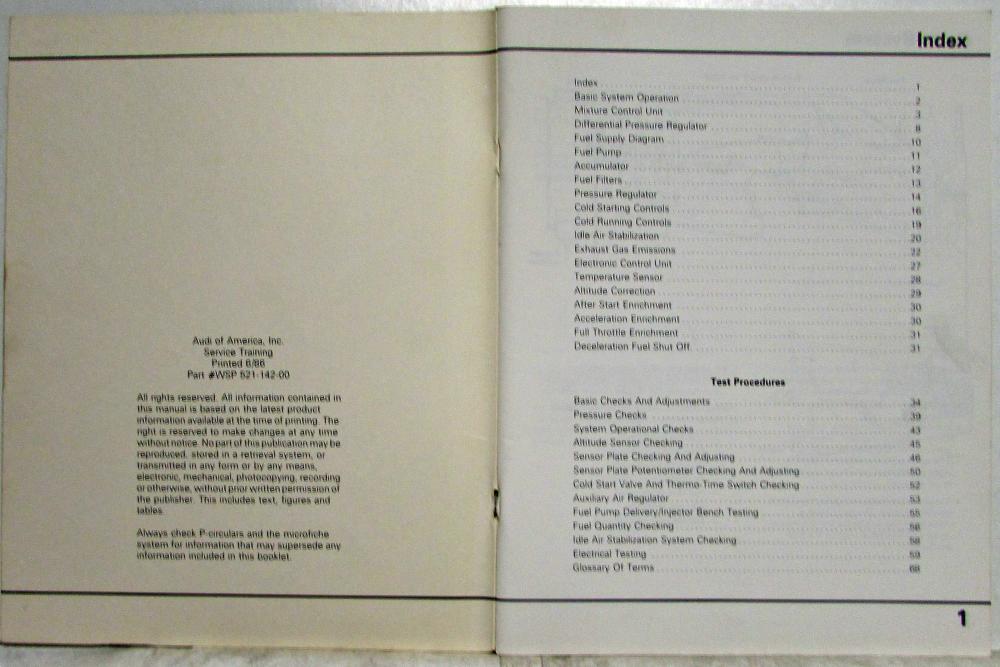

Index
Basic System Operation
Mixture Control Unit
Differential Pressure Regulator
Fuel Supply Diagram
Fuel Pump
Accumulator
Fuel Filters
Pressure Regulator
Cold Starting Controls
Cold Running Controls
Idle Air Stabilization

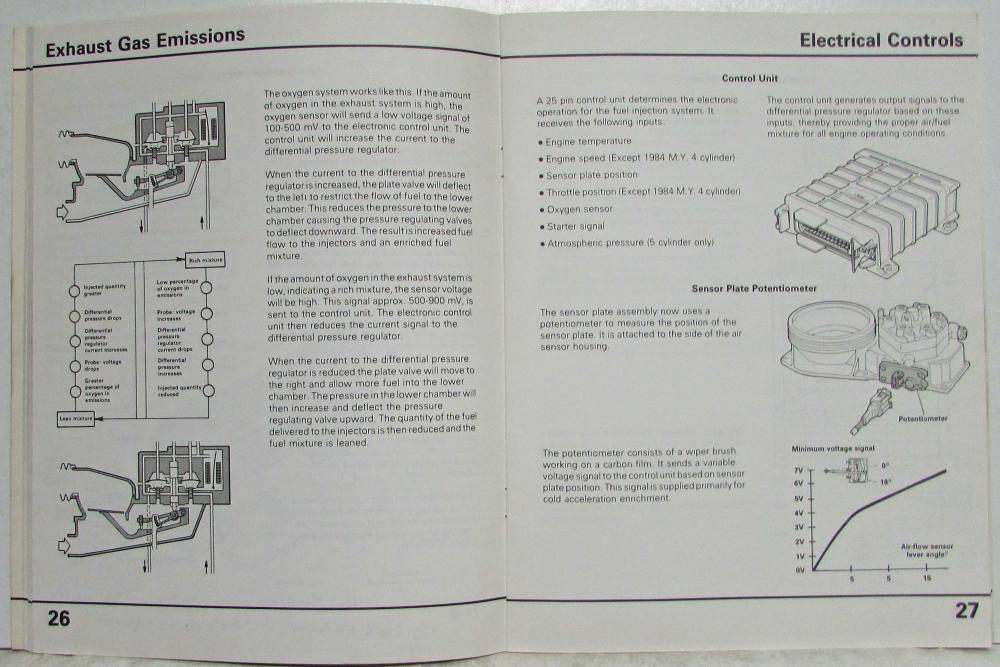

Exhaust Gas Emissions
Electronic Control Unit
Temperature Sensor
Altitude Correction
After Start Enrichment
Acceleration Enrichment
Full Throttle Enrichment
Deceleration Fuel Shut Off

Test Procedures

Basic Checks and Adjustments
Pressure Checks
System Operational Checkes
Altitude Sensing Checking
Sensor Plate Checking and Adjusting
Sensor Plate Potentiometer Checking and Adjusting
Cold Start Valve and Thermo-Time Switch Checking
Auxiliary Air Regulator
Fuel Pump Delivery/Injector Bench Testing
Fuel Quantity Checking
Idle Air Stabilization System Checking
Electrical Testing
Glossary of Terms

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
