1987 Acura Legend Coupe SRS Service Manual Supplement

Price $19.00 $15.20 Details W: 8.5 x H: 11 x D: 0.125 Weight 0.25 lbs. Page Count 40+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-30712 OEM Number 61SG000Z In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $28.20

---

Description

1987 Acura Legend Coupe SRS Service Manual Supplement. ORIGINAL.

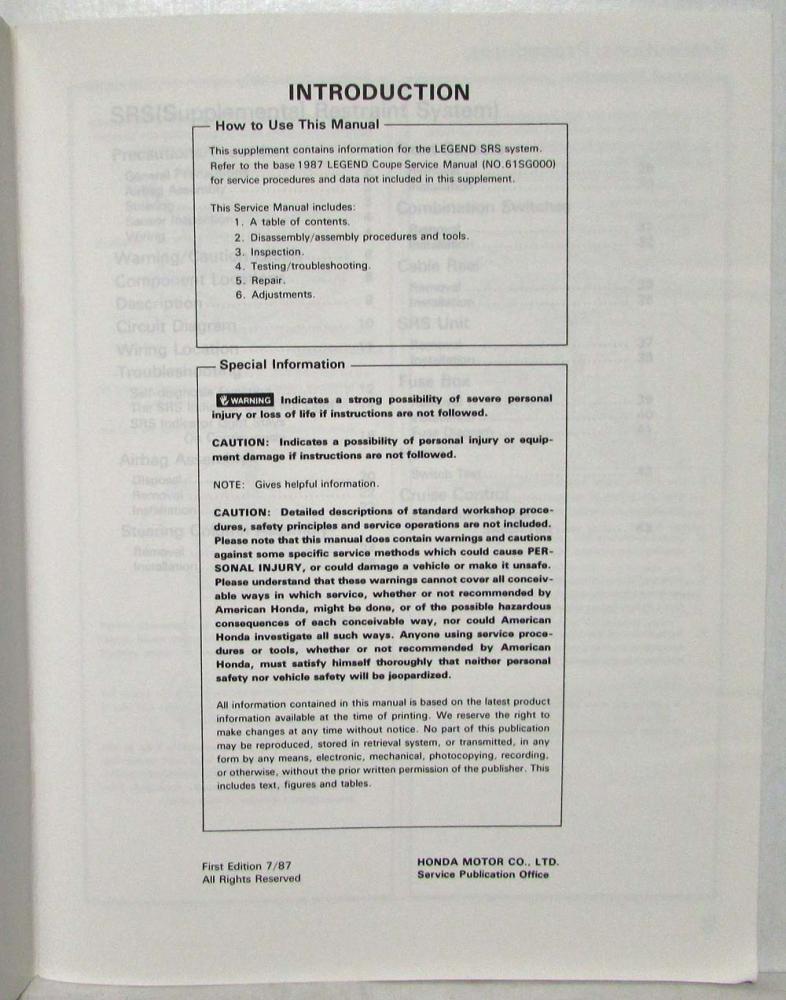

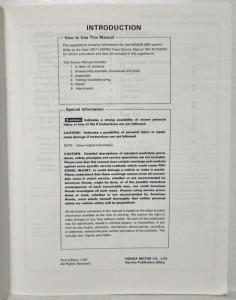

This supplement contains information for the Legend SRS system. Refer to the base 1987 Legend Coupe Service Manual 61SG000 for service procedures and data not included in this supplelment.

The service manual includes:

1. A table of contents
2. Disassembly/assembly procedures and tools
3. Inspection
4. Testing/Troubleshooting
5. Repair
6. Adjustments

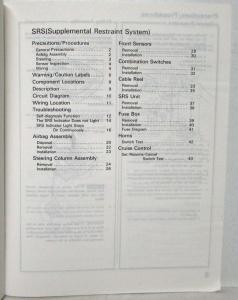

SRS Contents:
Precautions/Procedures
Warning/Caution Labels
Component Locations
Description

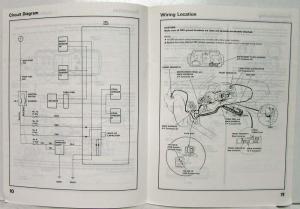

Circuit Diagram
Wiring Location
Troubleshooting
Airbag Assembly
Steering Column Assembly
Front Sensors
Combination Switches
Cable Reel
SRS Unit
Fuse Box
Horns
Cruise Control

Condition: Service Manuals have been used in Dealerships, Independent Garages and in Fleet Environments and thus reflect such use, most often showing signs of soiling and may show other signs of age and wear, but the information within is still legible and can give valuable insight in the care and maintenance of vehicles. There is some light soiling on the cover. Dealer label on back. The images shown are reflective of the of kind of condition one might find of manuals that are shipped.
