1987 VW Electrical Wiring Diagrams - Cabriolet Fox Golf GTI Jetta Scirocco

Price $49.00 $39.20 Details W: 9 x H: 11 x D: 0.5625 Weight 1.94 lbs. Page Count 302 Condition Used Original - Good Item Type Factory Manual Inventory Number WD-56339 OEM Number W42 001 142 1 Printed 11/87 In Stock
Flat US shipping rate: $9.95
Flat International shipping rate: $54.95
Description

1987 Volkswagen VW Electrical Wiring Diagrams. Original.

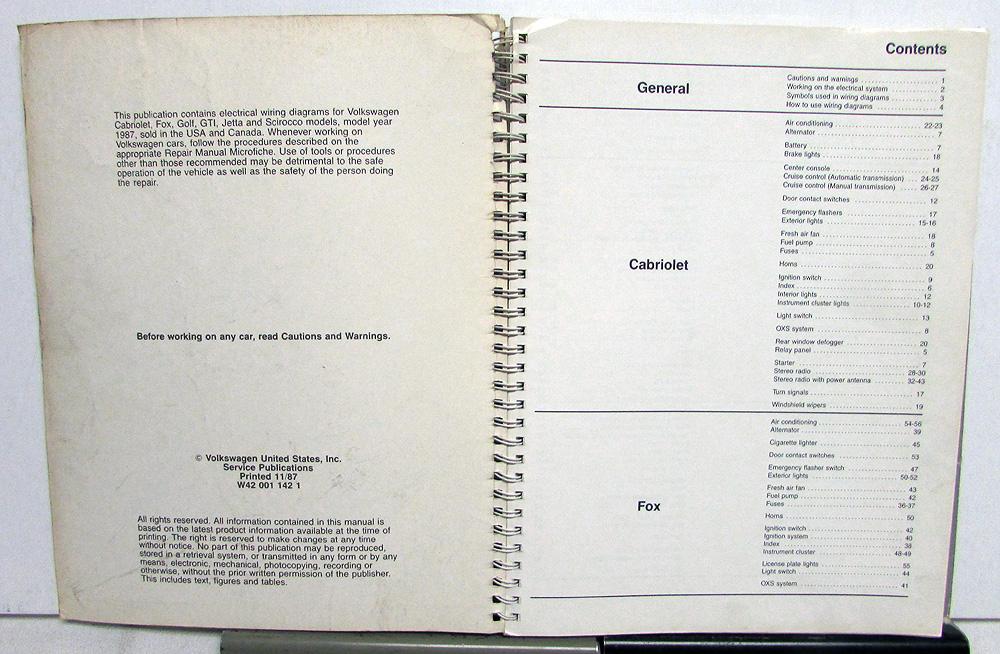

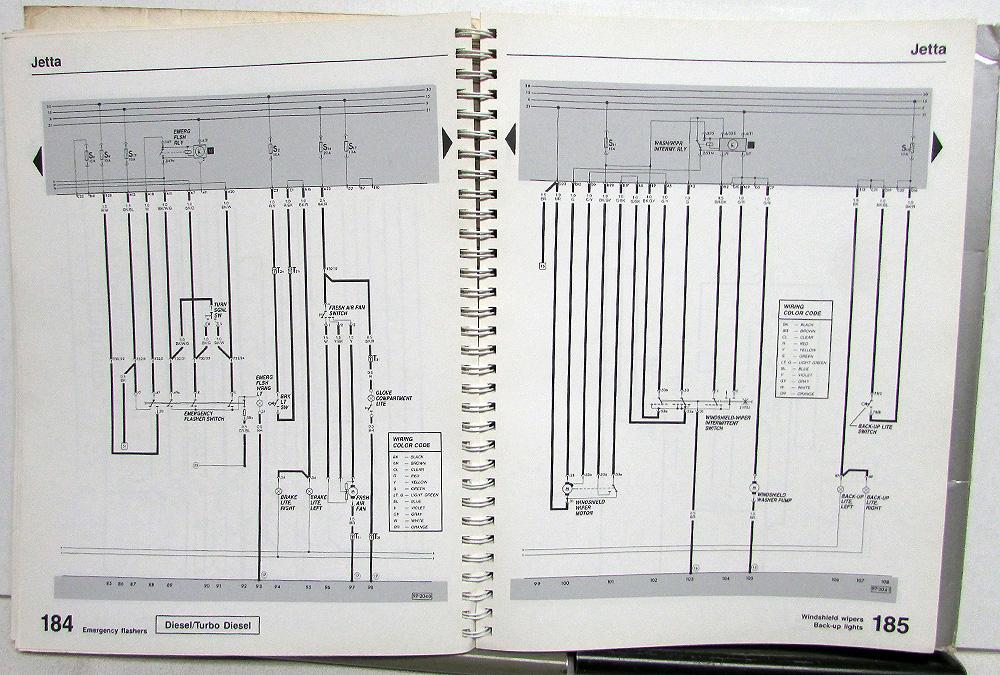

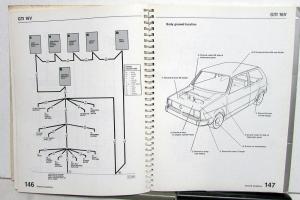

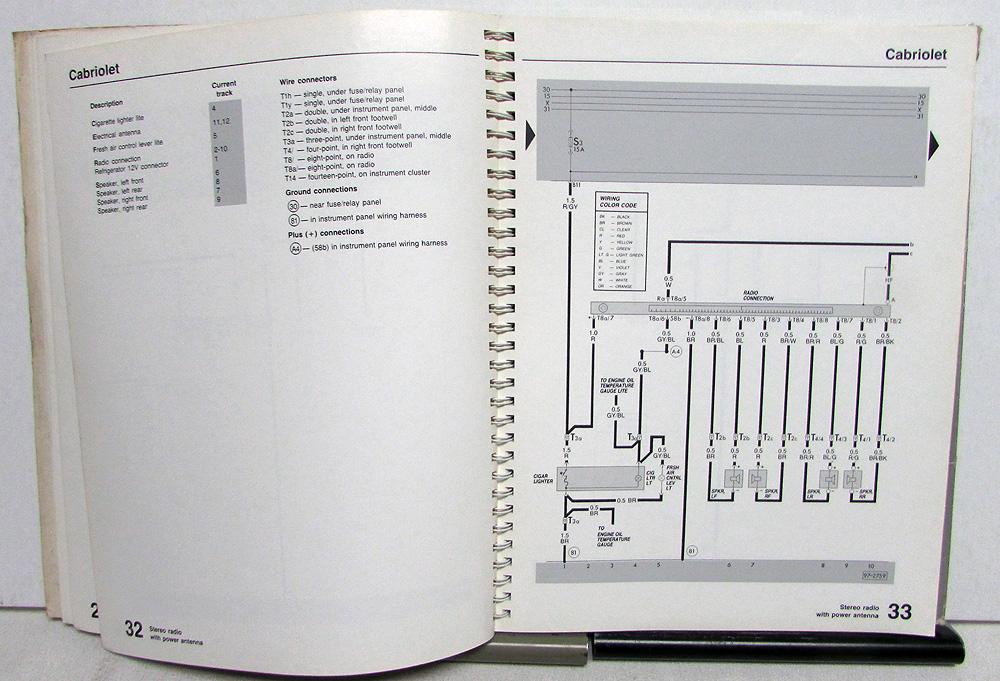

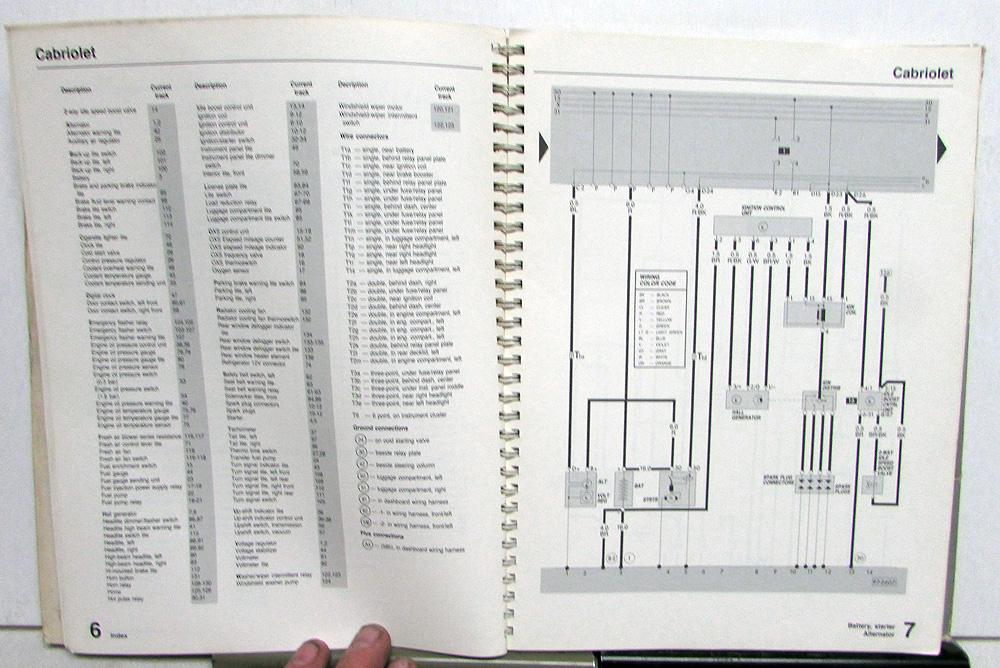

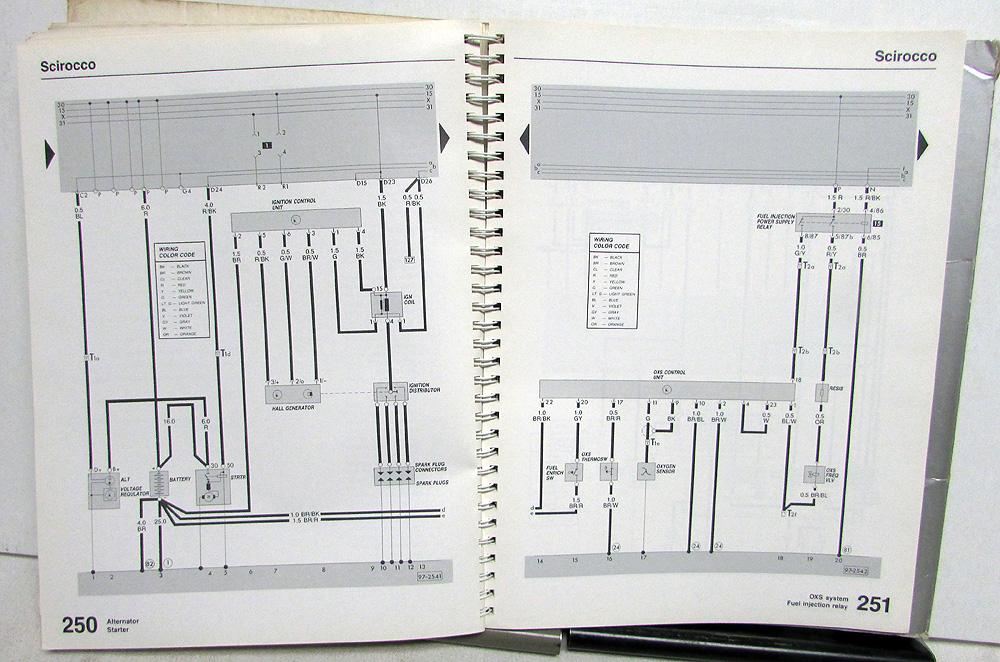

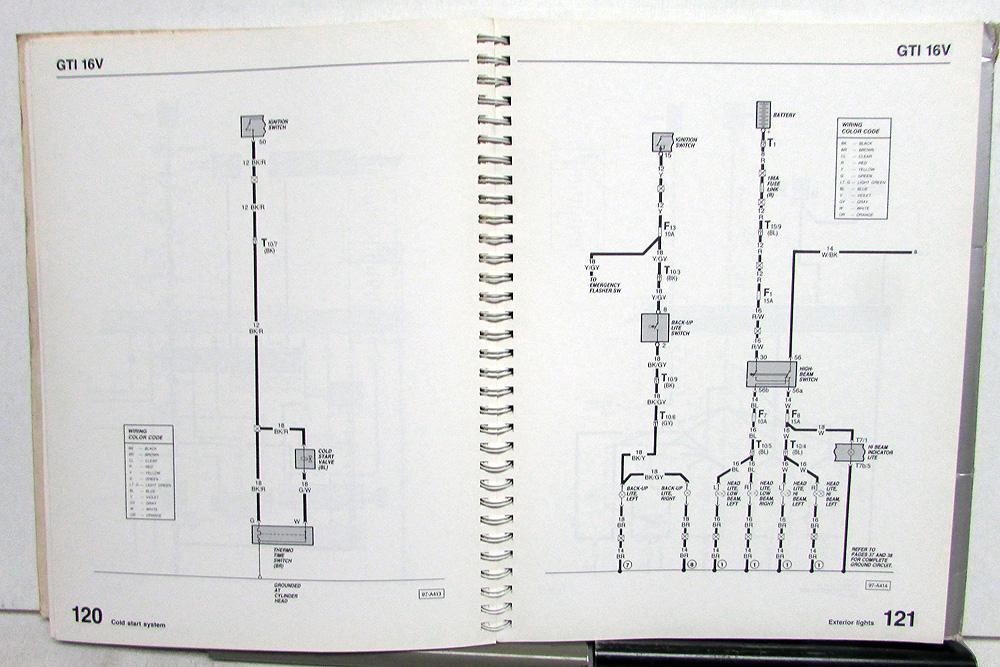

This publication contains electrical wiring diagrams for the Volkswagen Cabriolet, Fox, Golf, GTI, Jetta and Scirocco models, model year 1987 sold in the USA and Canada.

Good condition with some wear and soiling.
