1988 Ford Engine Emissions Diagnosis Service Manual Car-Truck With Revised Vol H

Price $109.05 $87.24 Details W: 8.5 x H: 11 x D: 2.75 Weight 6.44 lbs. Page Count 1000+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-52632 OEM Number FPS-12106-88H In Stock
Flat US shipping rate: $14.95
Flat International shipping rate: $119.95

---

Description

1988 Ford Engine Emissions Diagnosis Service Manual Car-Truck. FPS-12106-88H. ORIGINAL.

This 1988 Car/Truck Shop Manual provides information covering Emissions for all 1988 Ford Motor Company Passenger Cars and Trucks manufactured in the United States and Canada. Complete emissions related diagnostic procedures for all affected systems or components are covered in this manual.

This is the NOS Contents of this Manual still sealed in the original plastic and is loose pages with no binder.

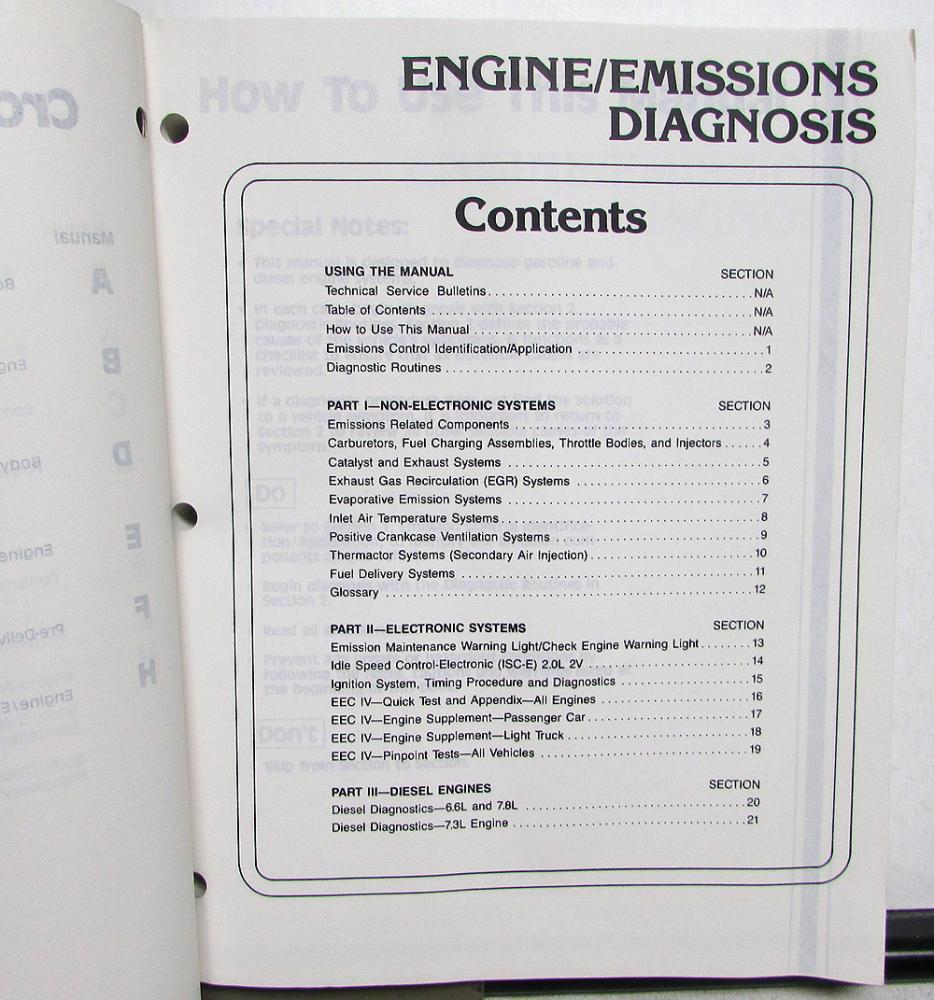

Contents:

Table of Contents
How to Use This Manual
Emissions Controls Identification/Application

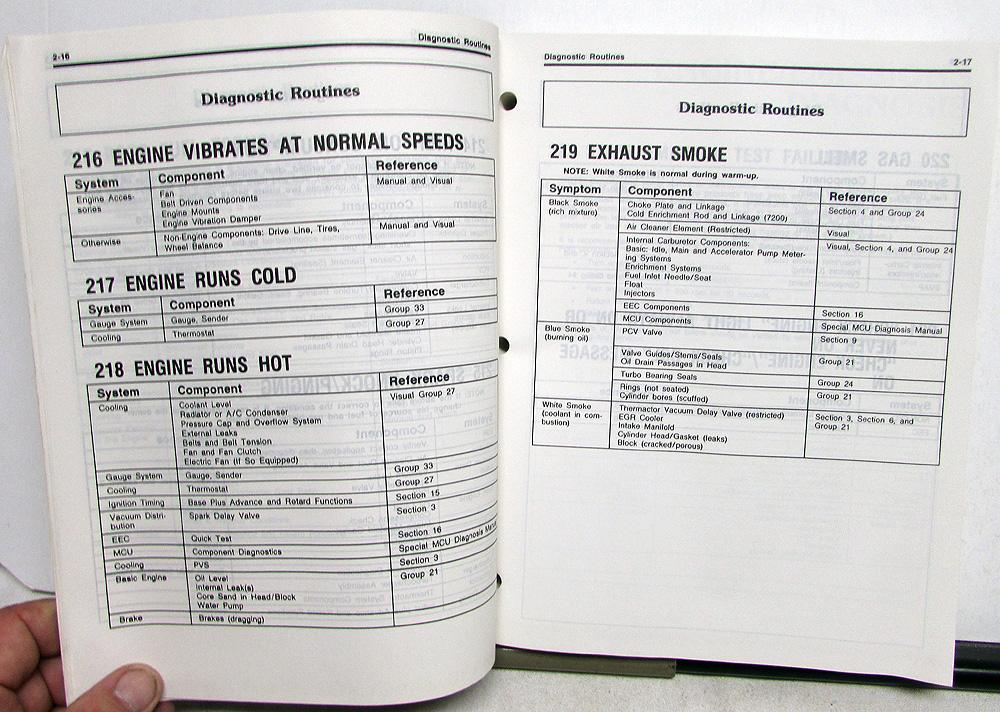

Diagnostic Routines

Part I - Non-Electronic Systems

Emissions Related Components

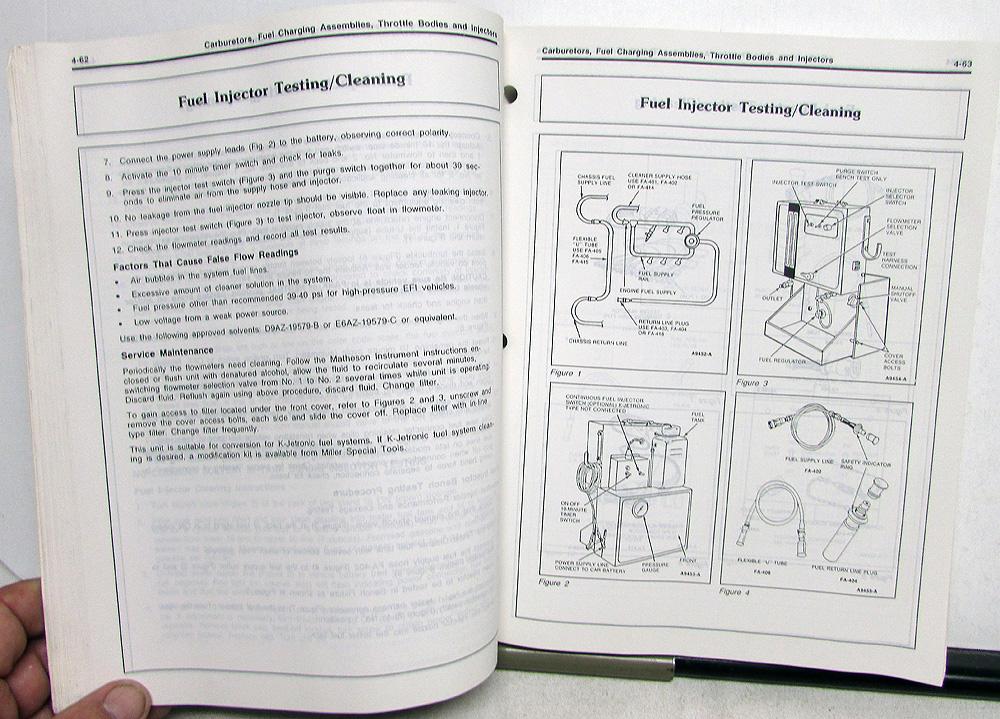

Carburetors, Fuel Charging Assemblies, Throttle Bodies, and Injectors
Catalyst and Exhaust Systems
Exhaust Gas Recirculation (EGR) Systems
Evaporative Emissions Systems
Inlet Air Temperature Systems
Positive Crankcase Ventilation Systems
Thermactor Systems (Secondary Air Injection)
Fuel Delivery Systems
Glossary

Part II - Electronic Systems

Emission Maintenance Warning Light/Check Engine Warning Light
Idle Speed Control-Electronic (ISC-E) 2.0L 2V

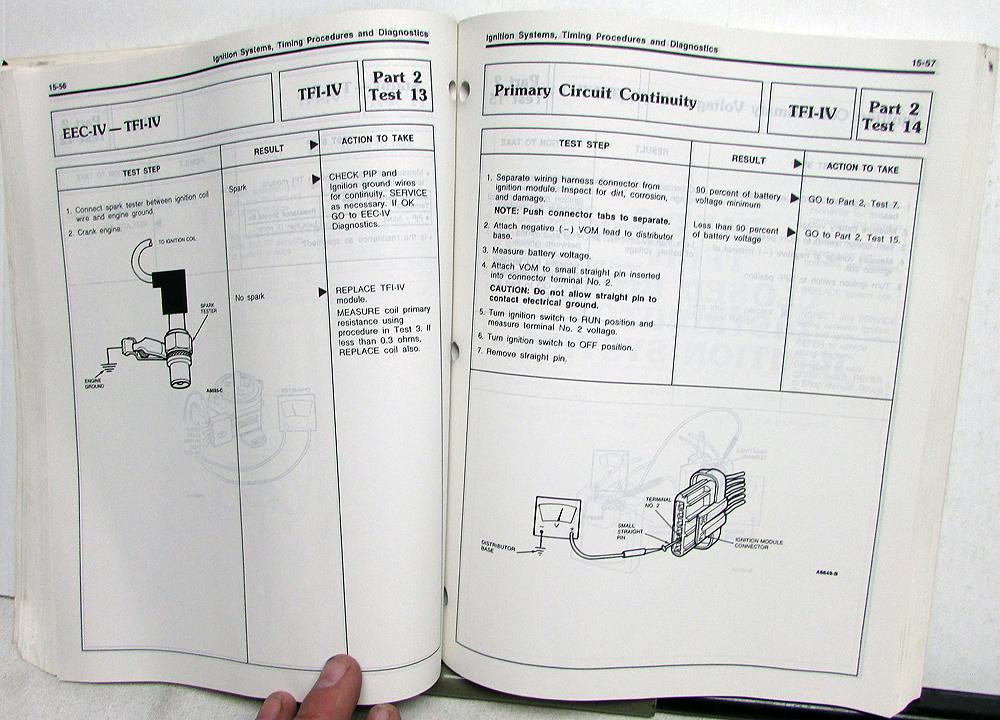

Ignition System, Timing Procedures and Diagnostics
EEC IV - Quick Test and Appendix - All Enginies
EEC IV - Engine Supplement - Passenger Car
EEC IV - Engine Supplement - Light Truck

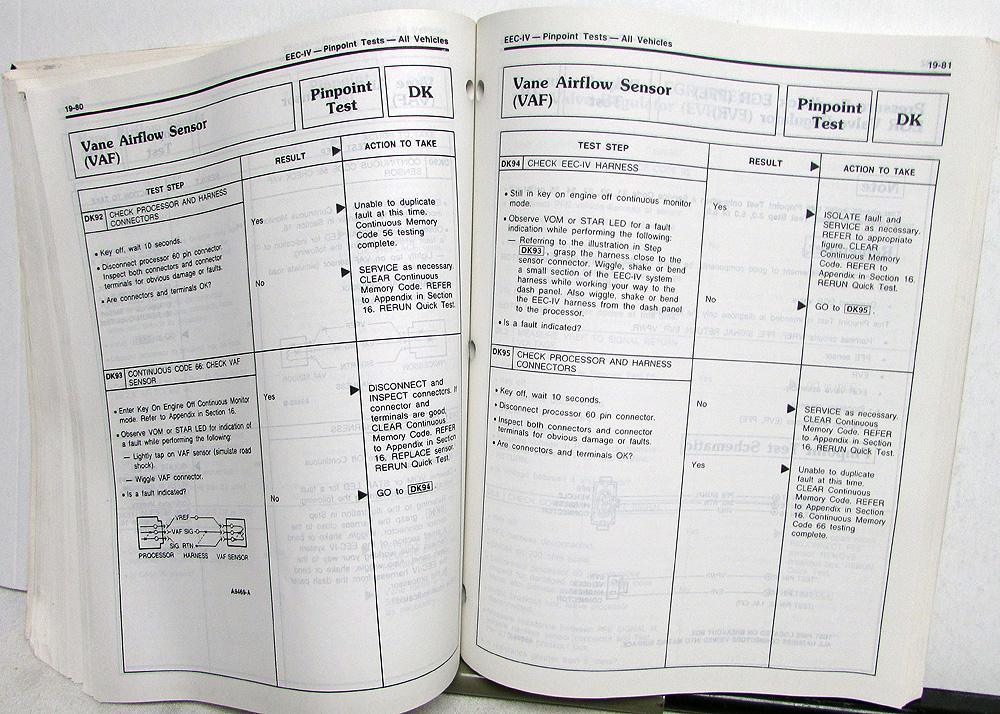

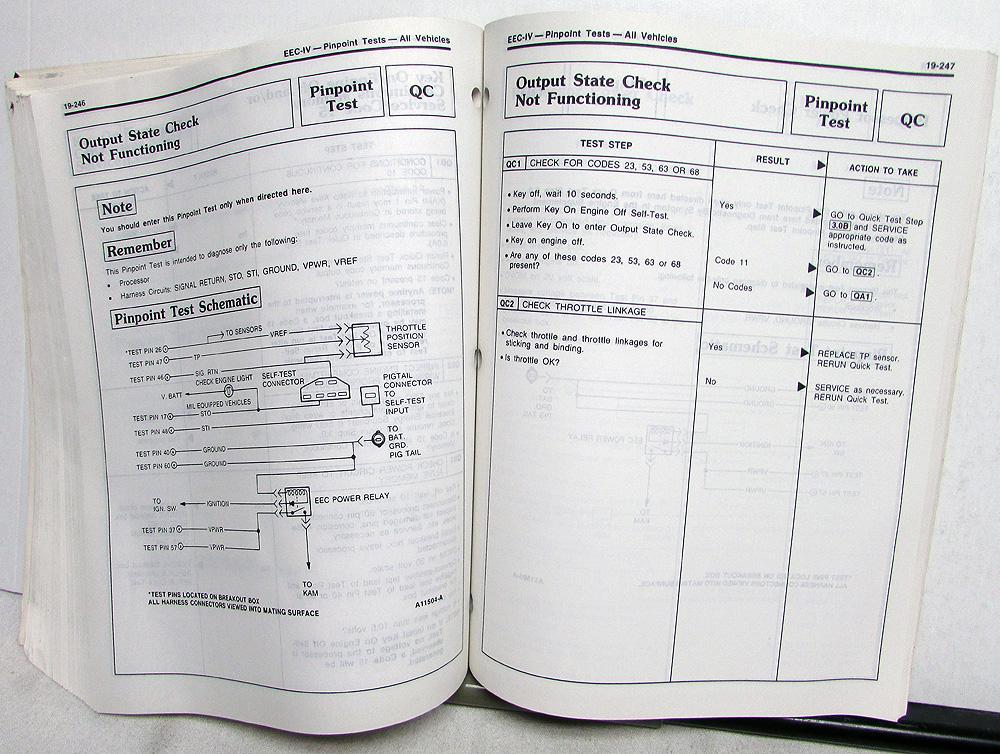

EEC IV - Pinpoint Tests - All Vehicles

Part III - Diesel Engines

Diesel Diagnostics - 6.6L and 7.8L
Diesel Diagnositcs - 7.3L Engine

Also included is the Revised version of this Manual in Book form. It is in very good condition with minor wear. Please see photos for contents and condition of this set.
