1988 Mazda 323 Station Wagon Electrical Wiring Diagram

Price $34.00 $27.20 Details W: 8.5 x H: 11 x D: 0.125 Weight 0.44 lbs. Page Count 51 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45167 OEM Number 5102-10-87G In Stock
Flat US shipping rate: $5.95
Flat International shipping rate: $33.35

Description

1988 Mazda 323 Station Wagon Electrical Wiring Diagram. Original.

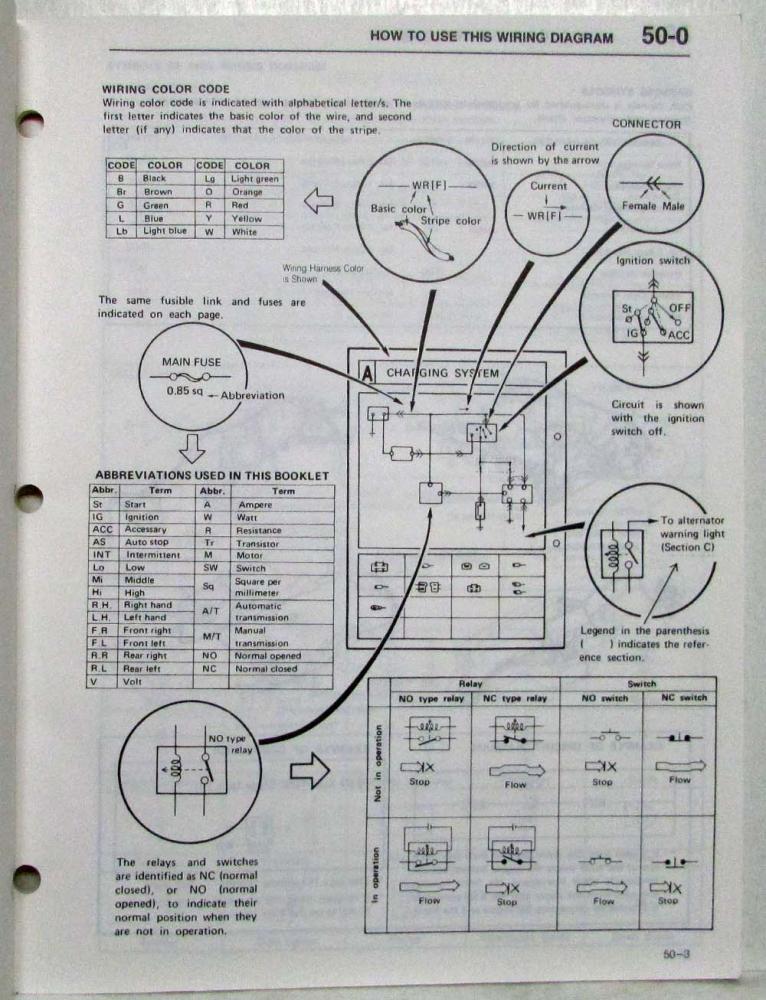

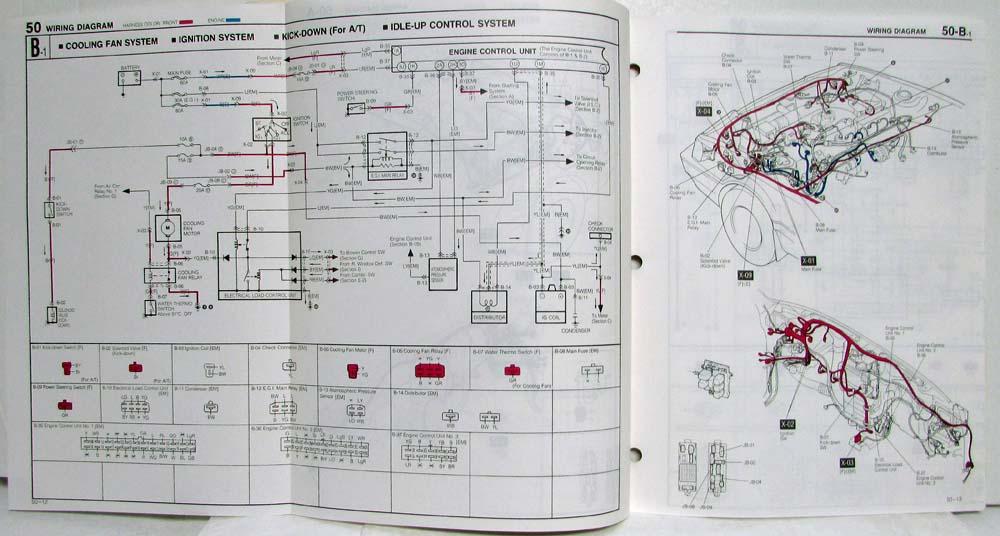

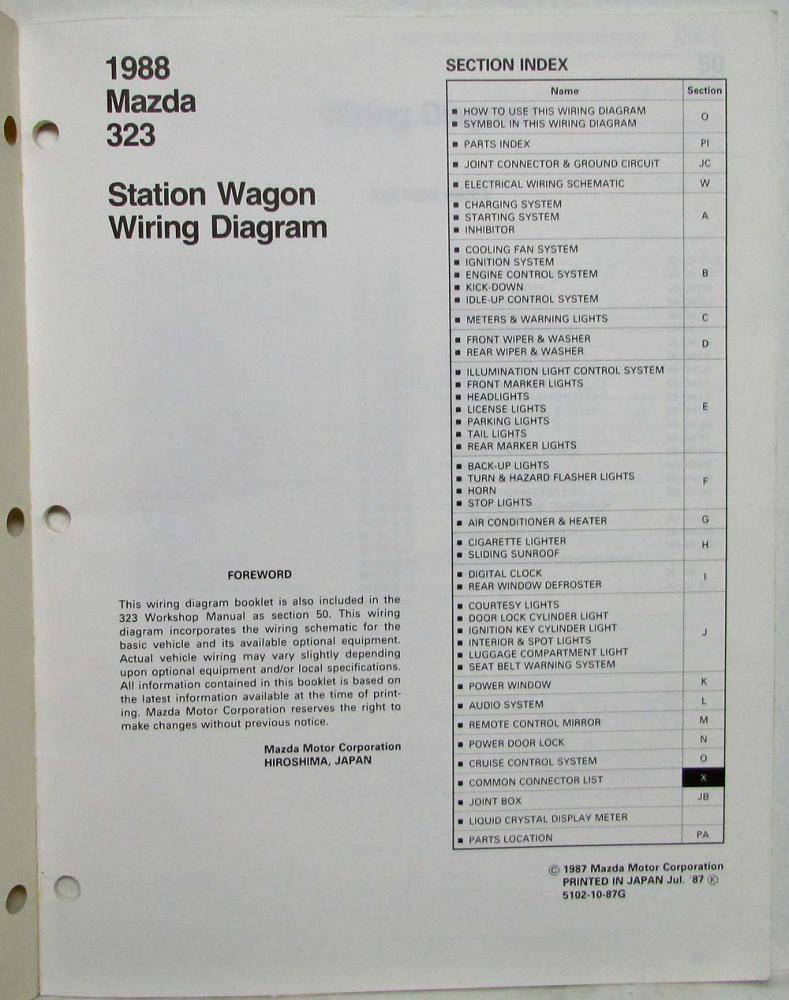

1988 Mazda 323 Station Wagon Electrical Wiring Diagram Service Manual. This wiring diagram booklet is also included in the 323 Workshop Manual (NOT included) as section 50. This wiring diagram incorporates the wiring schematic for the basic vehicle and its available optional equipment. Actual vehicle wiring may vary slightly depending upon optional equipment and/or local specifications. This manual was used by the Mazda Dealership technicians to help diagnose and identify electrical problems on the 323 Station Wagon.

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
