1989-1991 Ford E4OD Transmission Reference Manual TSTS 1705-204 F-Series Bronco

Price $59.00 $47.20 Details W: 10.25 x H: 11.75 x D: 1.5 Weight 3.06 lbs. Page Count 200+ Condition Used Original - Good Item Type Promotional Material Inventory Number SM-56153 OEM Number TSTS 1705-204 1989-1991 In Stock
Flat US shipping rate: $14.95
Flat International shipping rate: $74.00

---

Description

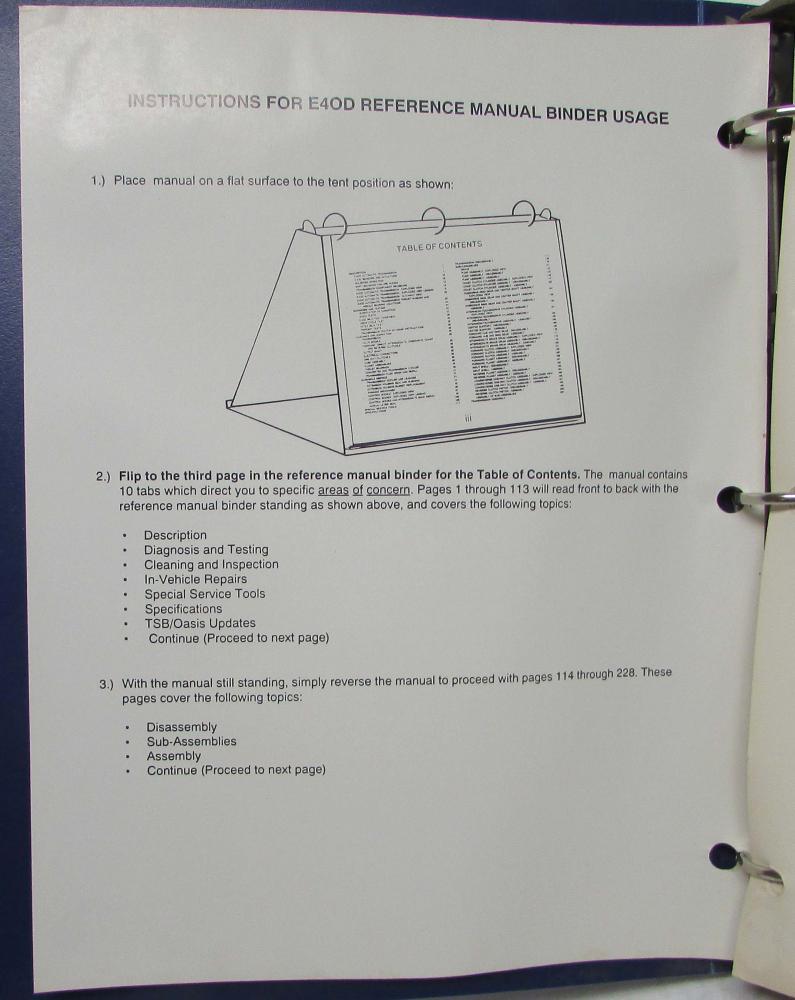

1989-1991 Ford E4OD Transmission Reference Manual TSTS 1705-204. Original. Tent style manual makes for handy use.

Looks as though it is applicable to the 1989-1991 Ford F-Series, Econoline, Bronco and F-Super Duty Motorhome.

Sections:
Description

The Ford E4OD transmission is a fully automatic, electronically controlled, four-speed unit with a locking torque converter. The main operating components of the E4OD transmission include a converter clutch, six multiple-disc friction clutches, one band, two sprag one-way clutches and a roller one-way clutch which provides for the desired function of three gearsets.

Diagnosis/Testing

This section provides information which must be used in both determining the actual cause of customer concerns and performing the appropriate service procedures.

Cleaning/Inspection

Clean all parts with a suitable solvent. Use moisture-free compressed air to dry off all parts and clean out fluid passages.

In-Vehicle Service

When fluid leakage is found at the oil cooler, the cooler must be replaced.

Special Tools

Lists special service tools, gives tool number, description and original release.

Specifications

Description. Torque.

TSS/Oasis Updates

This section has no pages/updates in it.
