1990-1998 Isuzu Airbags Service Shop Repair Manual Student Guide

Price $69.00 $55.20 Details W: 8.5 x H: 11 x D: 1.5 Weight 3.75 lbs. Page Count 700+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-44589 OEM Number ST-ELE-T12-LV In Stock
Flat US shipping rate: $14.95
Flat International shipping rate: $88.80

---

Description

1990-1998 Isuzu Airbags Service Shop Repair Manual Student Guide. Original.

This Technician Guide introduces and descibes the operation and servicd of the 1990-Present (at the time) Isuzu Supplemental Restraint System (SRS), or Air Bag Systems. However, it is NOT intended to substitute the appropriate Workshop Manual(s) normally used on the job. The range of specifications and variations in procedures between models requires reference to the specific Isuzu Service Publication(s) when performing certain operations.

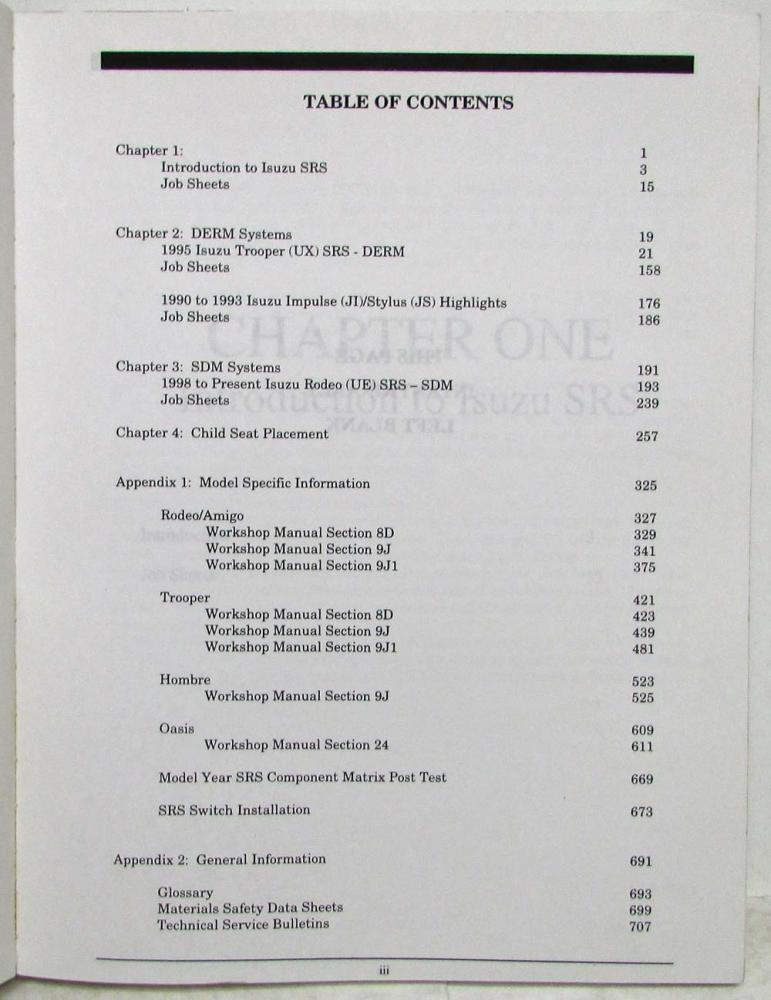

Contents:
Chapter 1

Introduction to Isuzu SRS
Job Sheets

Chapter 2: DERM Systems

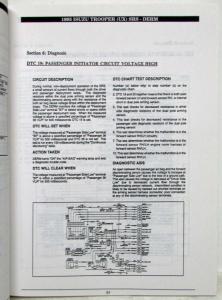

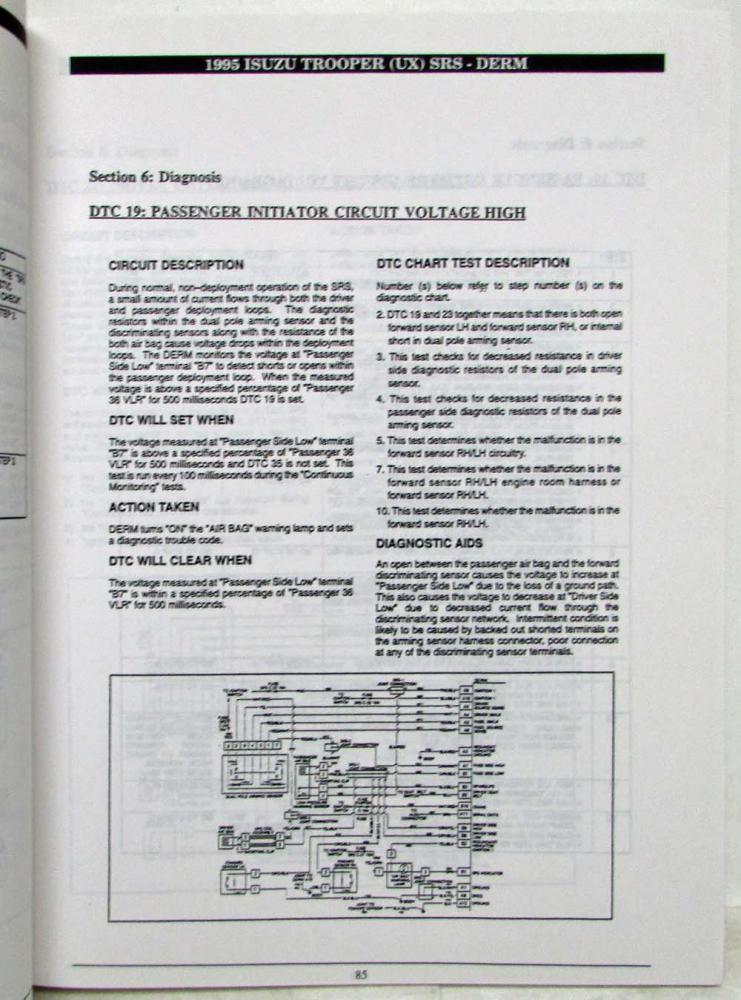

1995 Isuzu Trooper (UX) SRS - DERM
Job Sheets

1990 to 1993 Isuzu Impulse (JI)/Stylus (JS) Highlights
Job Sheets

Chapter 3: SDM Systems

1998 to Present Isuzu Rodeo (EUS) SRS - SDM
Job Sheets

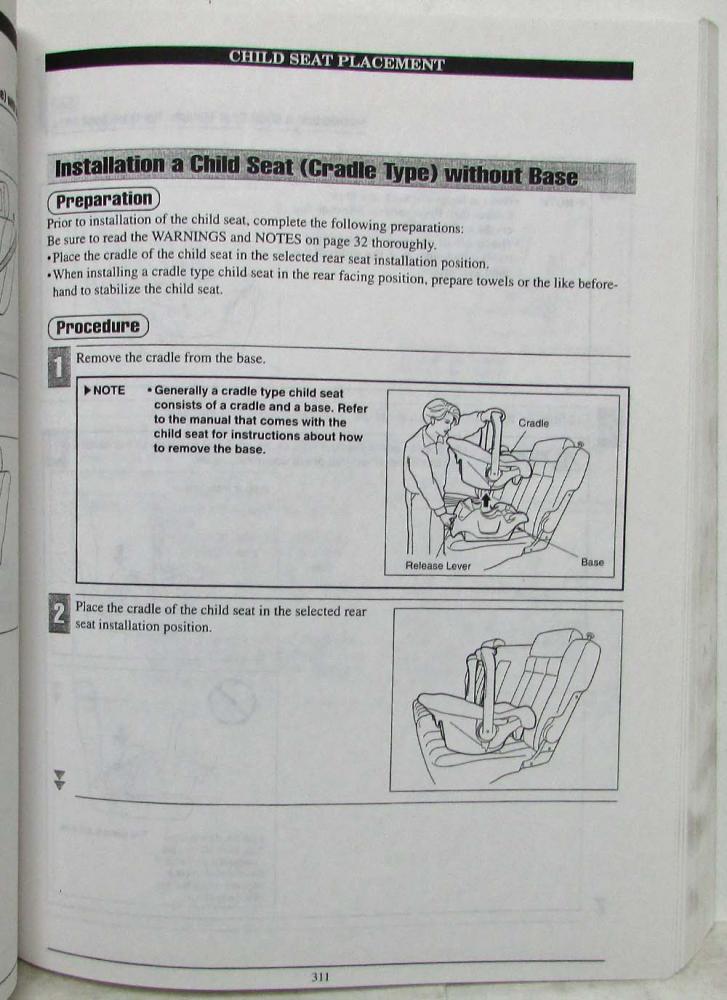

Chapter 4: Child Seat Placement

Appendix 1: Model Specific Information

Rodeo/Amigo

Workshop Manual Section 8D
Workshop Manual Section 9J
Workshop Manual Section 9J1

Trooper

Workshop Manual Section 8D
Workshop Manual Section 9J
Workshop Manual Section 9J1

Hombre

Workshop Manual Section 9J

Oasis

Workshop Manual Section 9J

Model Year SRS Component Matrix Post Test
SRS Switch Installation

Appendix 2: General Information

Glossary
Materials Safety Data Sheets
Technical Service Bulletins

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
