1990 Mazda 323 Service Shop Repair Manual

Price $49.00 $39.20 Details W: 6 x H: 8.25 x D: 2.125 Weight 3.00 lbs. Page Count 750+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45486 OEM Number 1195-10-89S 9999-950017S-90 In Stock
Flat US shipping rate: $14.95
Flat International shipping rate: $80.75

Description

1990 Mazda 323 Service Shop Repair Manual. Original.

This workshop manual is intended for use by service technicians of Authorized Mazda Dealers to help them service Mazda vehicles. It can also be useful to owners and operators of Mazda vehicles in diagnosing some problems and performing limited repair and maintenance on Mazda vehicles.

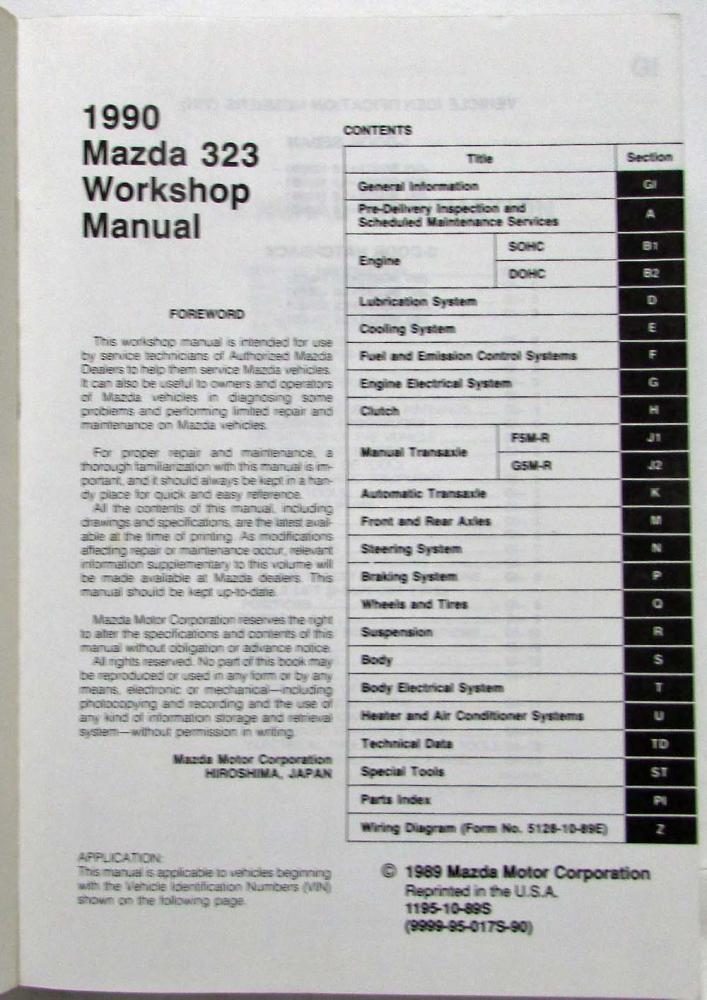

Contents:
General Information
Pre-Delivery Inspection and Scheduled Maintenance Services
Engine

SOHC

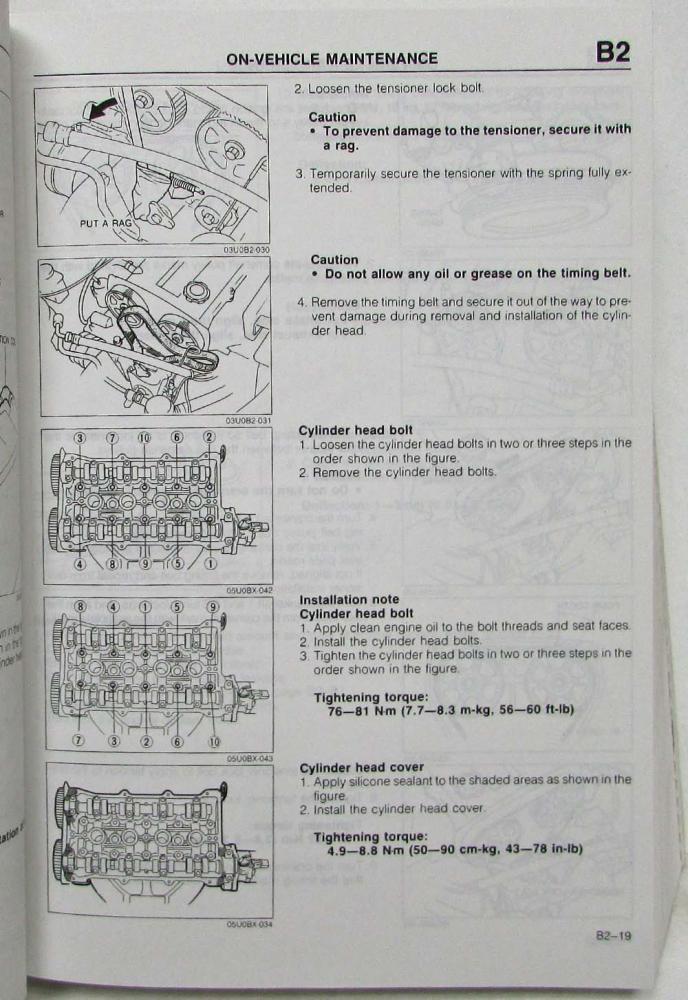

DOHC

Lubrication System
Cooling System
Fuel and Emission Control Systems
Engine Electrical System
Clutch

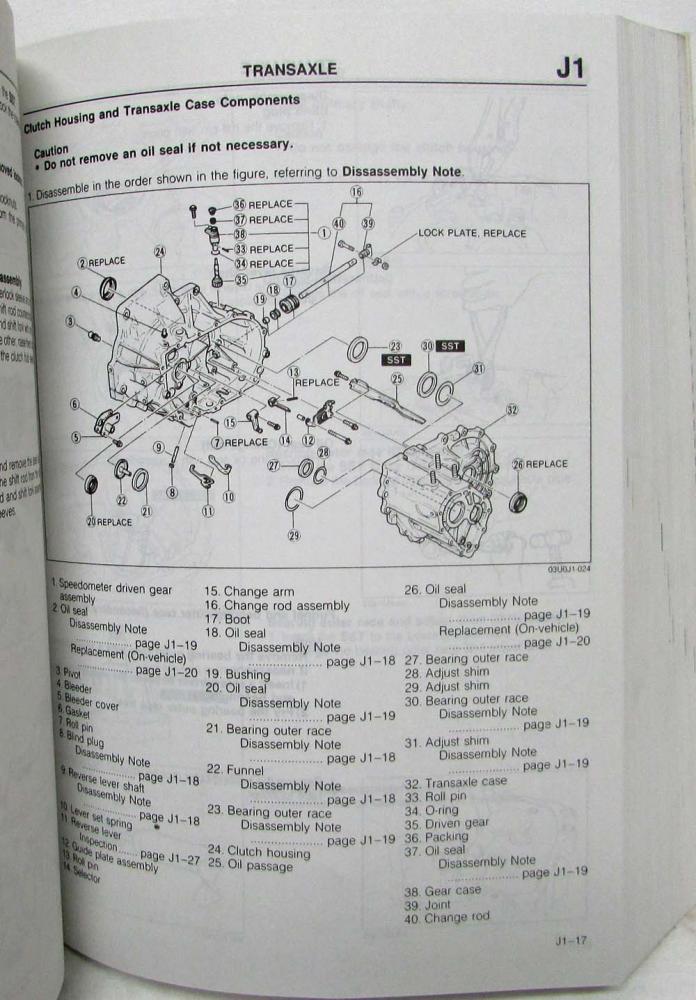

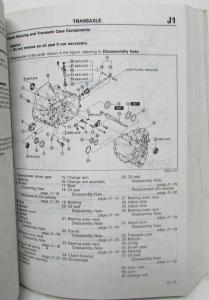

Manual Transaxle

F5M-R
G5M-R

Automatic Transaxle
Propeller Shaft
Front and Rear Axles
Steering System
Braking System
Wheels and Tires
Suspension
Body
Body Electrical System
Heater and Air Conditioner Systems
Technical Data
Special Tools
Parts Index
Wiring Diagram (Form No. 5128-10-89E) - MISSING

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
