1990 Mazda MPV Service Shop Repair Manual in Binder

Price $49.00 $39.20 Details W: 12.5 x H: 11.5 x D: 5.25 Weight 11.06 lbs. Page Count 1000+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45511 OEM Number 1201-10-89F In Stock
Flat US shipping rate: $19.95
Flat International shipping rate: $136.60

---

Description

1990 Mazda MPV Service Shop Repair Manual. Original.

This workshop manual is intended for use by service technicians of authorized Mazda Dealers to help them service Mazda vehicles. It can also be useful to owners and operators of Mazda vehicles in diagnosing some problems and performing limited repair and maintenance on Mazda vehicles.

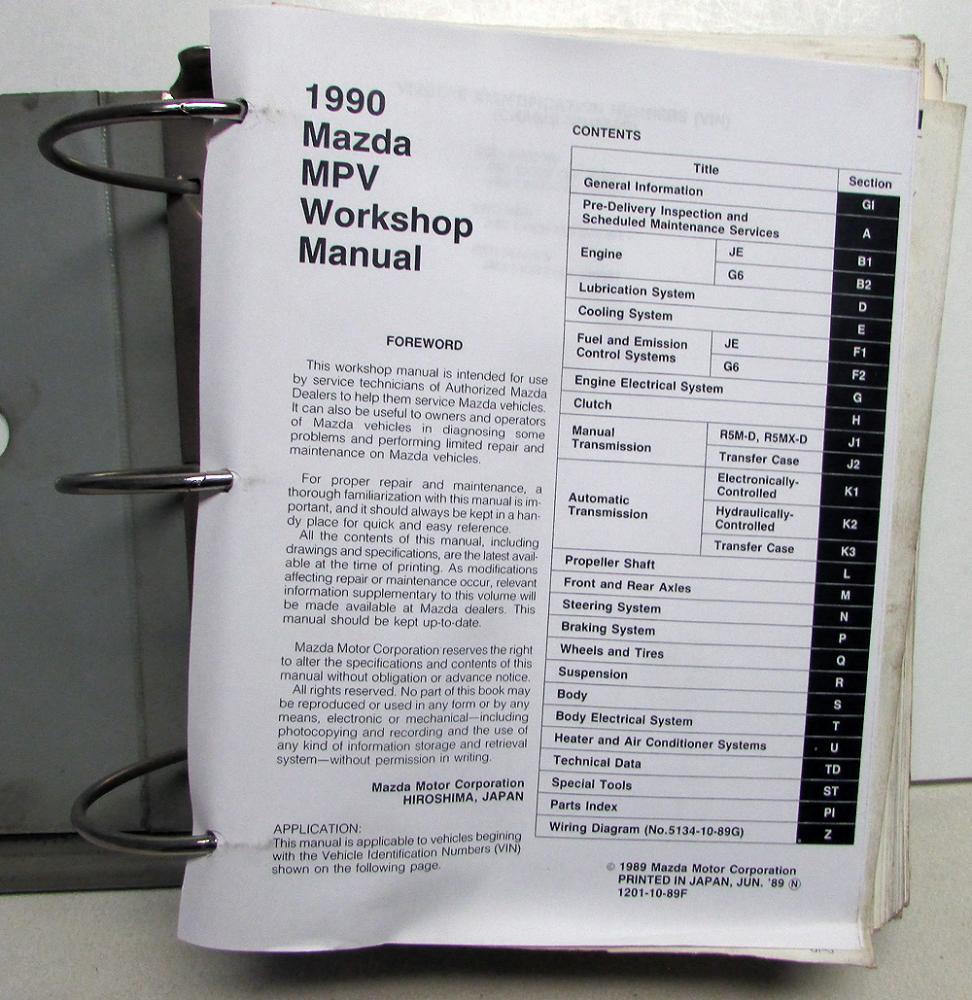

Contents:
General Information
Pre-Delivery Inspection and Scheduled Maintenance Services

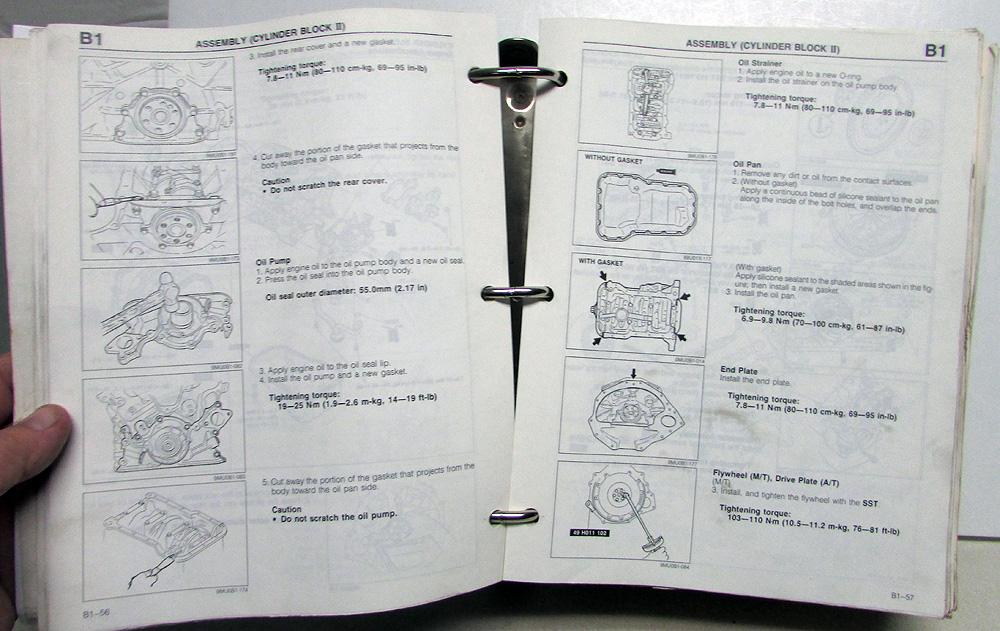

Engine

JE
G6

Lubrication System

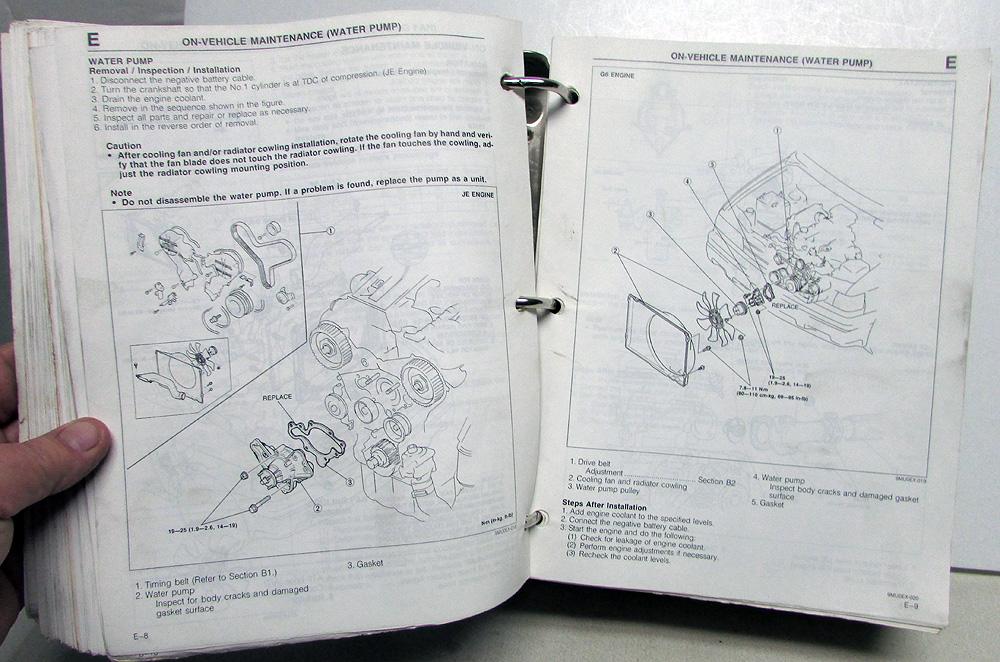

Cooling System

Fuel and Emission Control Systems

JE
G6

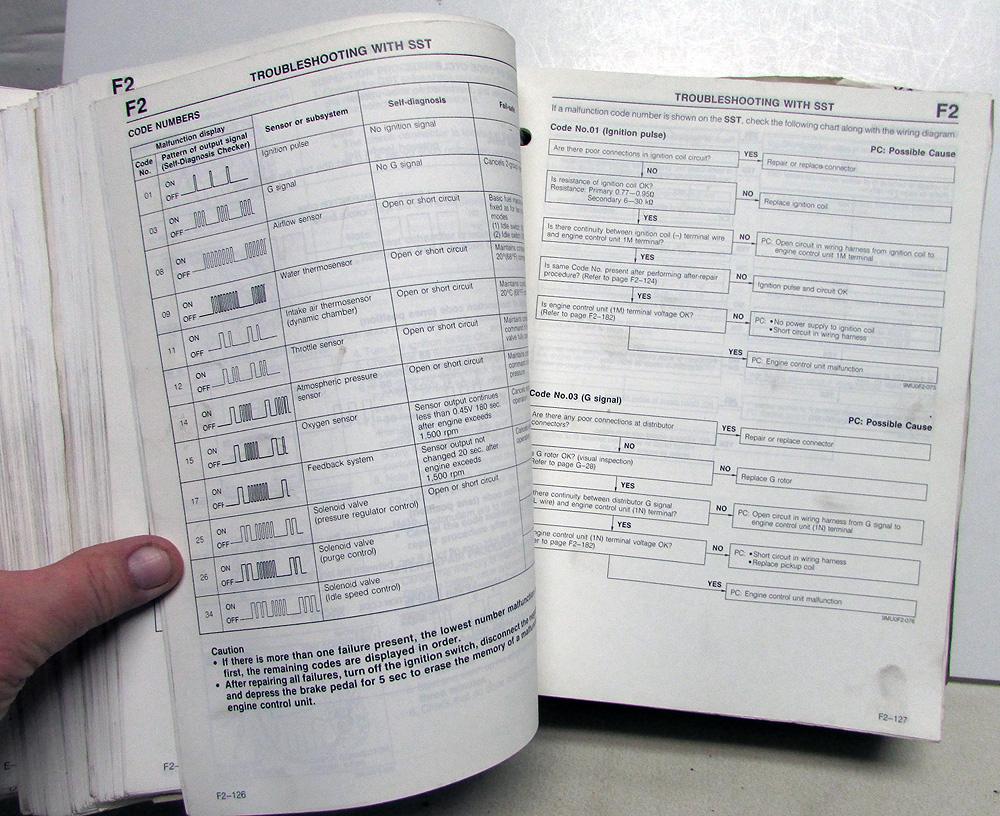

Engine Electrical System
Clutch
Manual Transmission

R5M-D, R5MX-D
Transfer Case

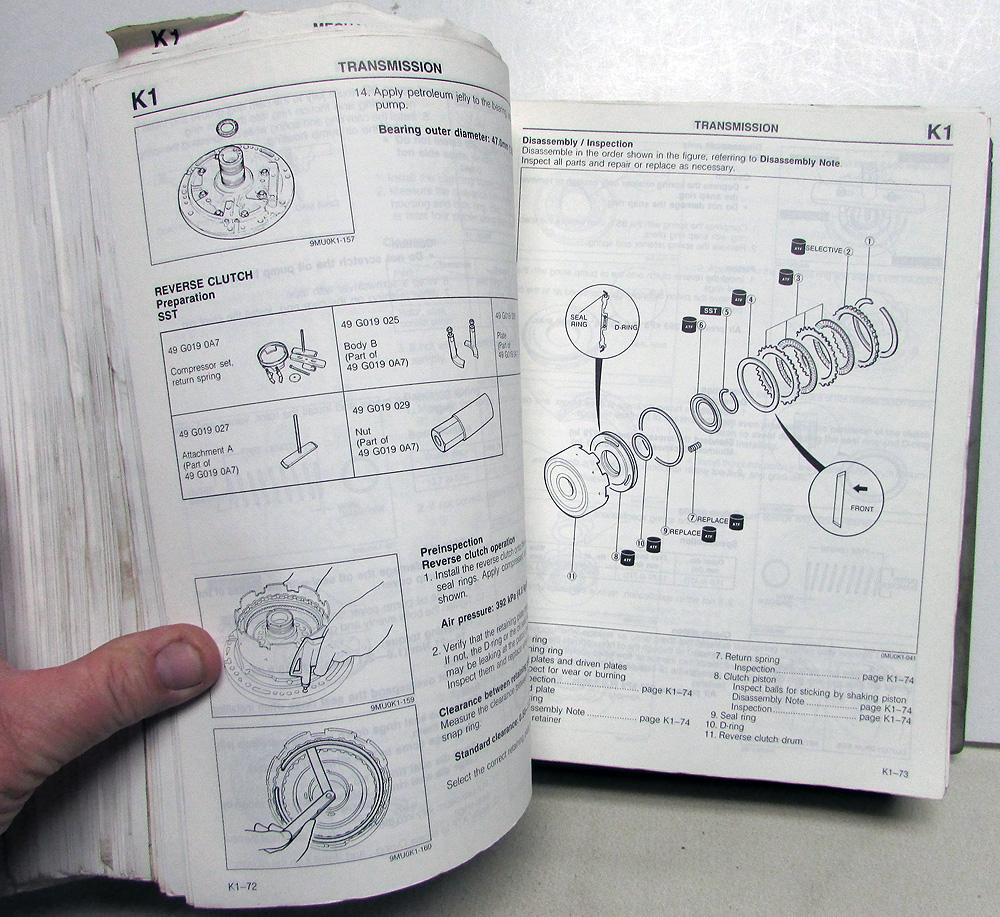

Automatic Transmission

Electronically-Controlled

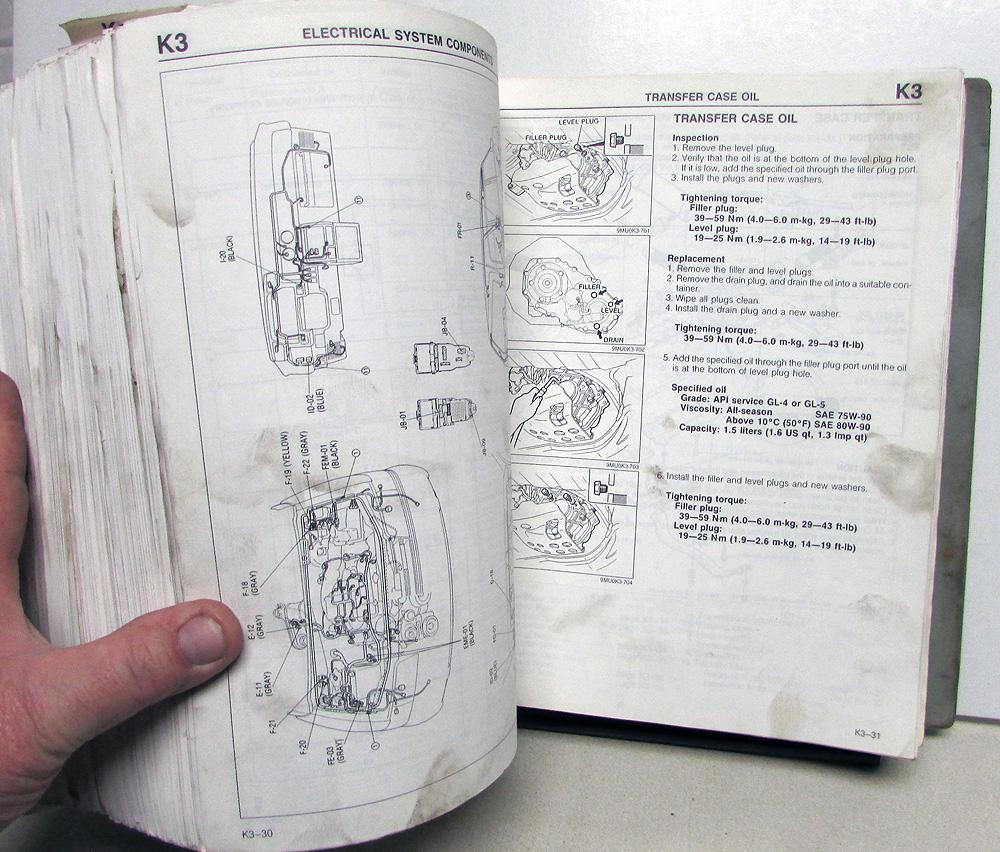

Transfer Case

Propeller Shaft
Front and Rear Axles
Steering System
Braking System
Wheels and Tires

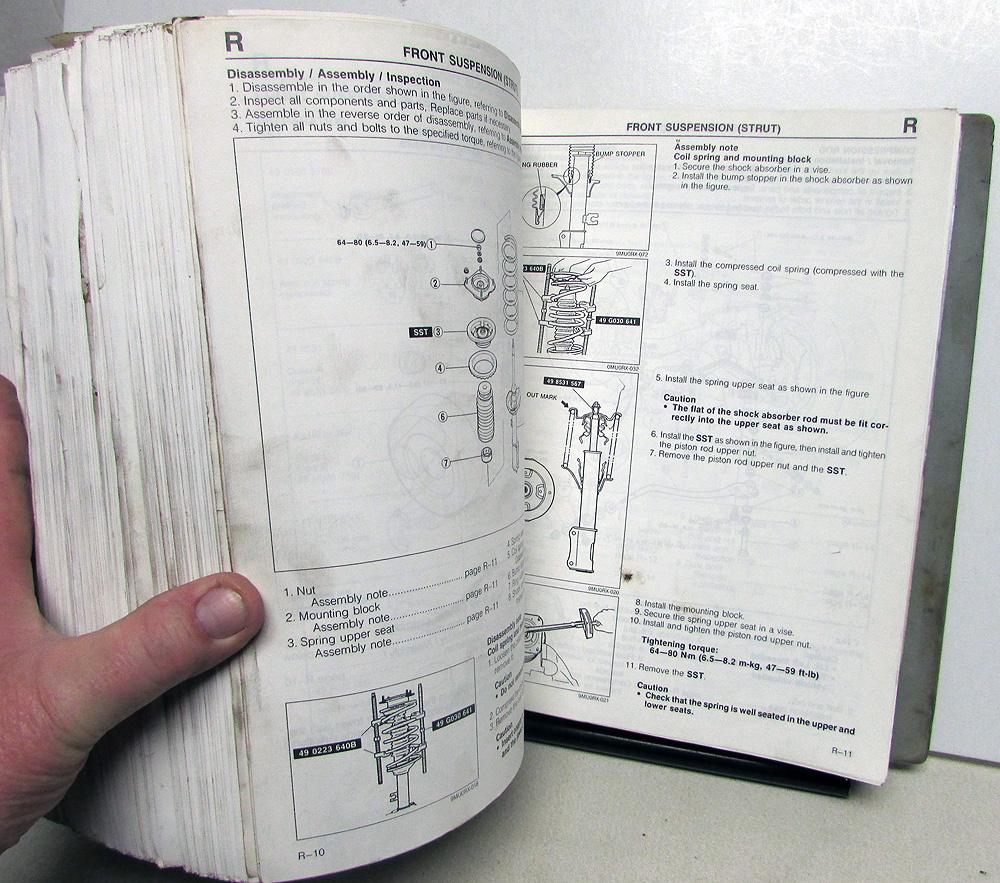

Suspension
Body
Body Electrical System
Heater and Air Conditioner System
Technical Data
Special Tools
Parts Index
Wiring Diagram (No. 5134-10-89G) MISSING

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
