1992-1996 Mitsubishi Diamante Service Shop Repair Manual - 2 Volume Set

Price $74.00 $59.20 Details W: 8.5 x H: 11 x D: 3.125 Weight 8.50 lbs. Page Count 2000+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-51264 OEM Number MSSP-005B-96 (1/2) MSSP-005B-96 (2/2) Printed in Japan In Stock
Flat US shipping rate: $19.95
Flat International shipping rate: $121.55

---

Description

1992-1996 Mitsubishi Diamante Service Shop Repair Manual. Original. 2 Volume Set.

This Service Manual was prepared with the latest servicing information at the time of publication. It is subdivided into various group categories and each section contains diagnosis, disassembly, repair, and installation procedures along with complete specifications and tightening references. Use of this manual is an aid in properly performing any servicing necessary to maintain or restore the high levels of performance and reliability designed into the vehicles.

Note: Service manuals can be valuable tools when working on and/or restoring a vehicle. For the uninitiated, keep in mind that these manuals were never actually meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments (even today).

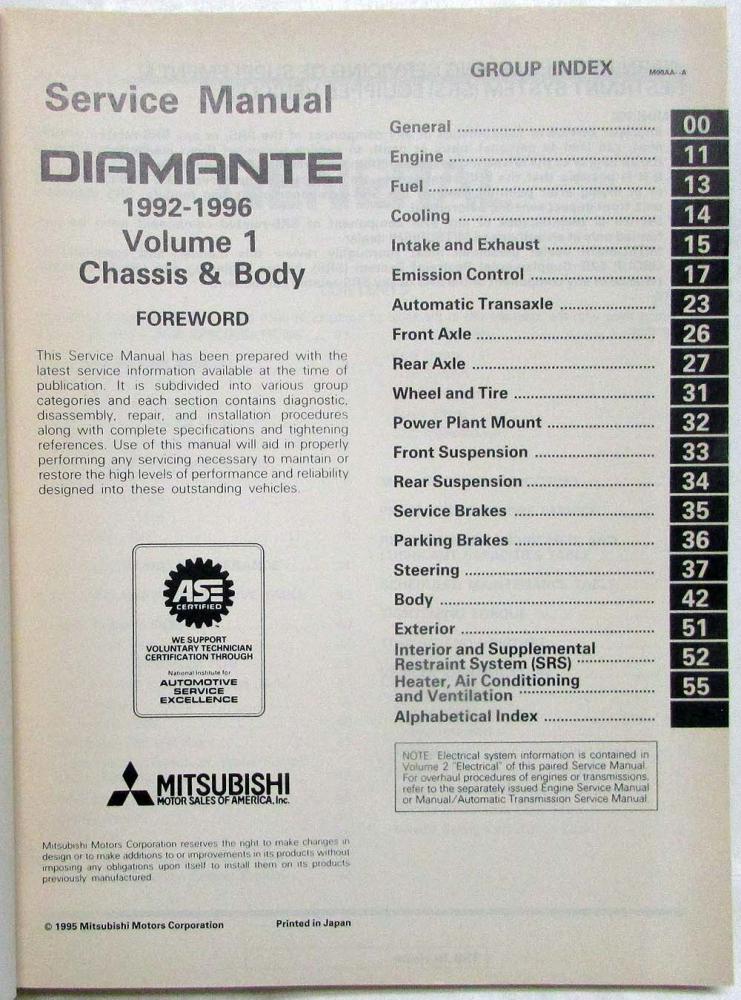

Volume 1 Chassis and Body Contents:

General
Engine
Fuel
Cooling
Intake and Exhaust
Emission Control
Automatic Transaxle
Front Axle
Rear Axle
Wheel and Tire
Power Plant Mount
Front Suspension
Rear Suspension
Service Brakes
Parking Brakes
Steering
Body
Exterior
Interior and Supplemental Restraint System (SRS)
Heater, Air Conditioning and Ventilation
Alphabetical Index

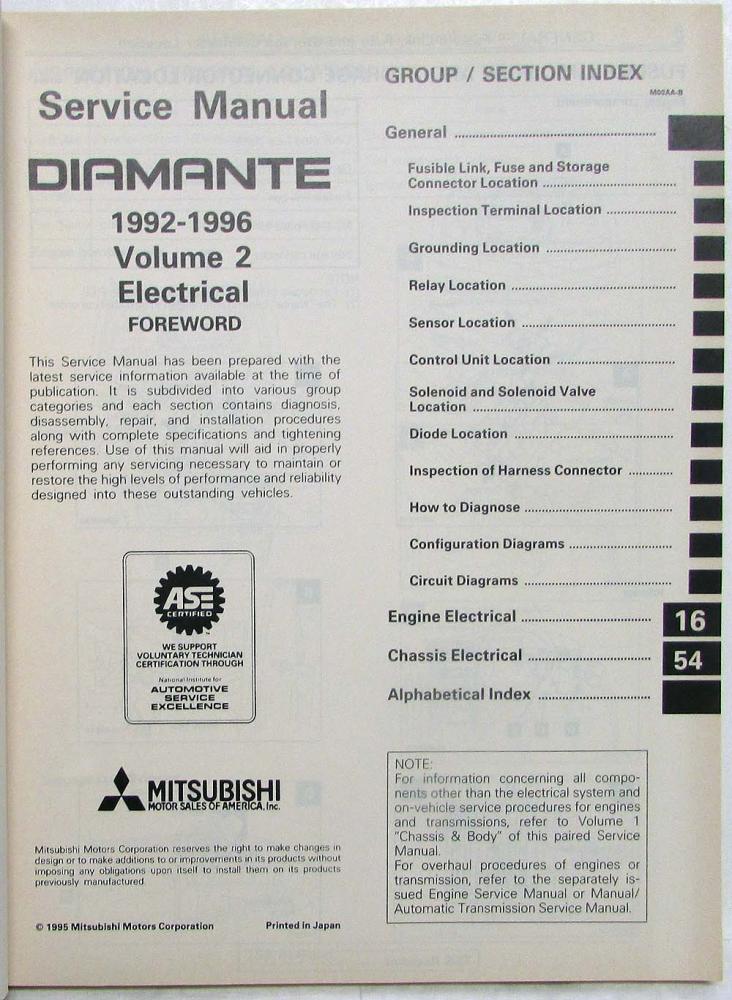

Volume 2 Electrical Contents:

General
Engine Electrical
Chassis Electrical
Alphabetical Index

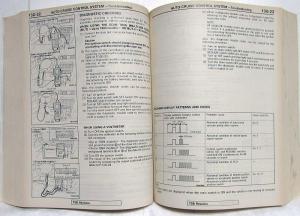

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
