1992 Ford Powertrain Control Emissions Diagnosis Service Manual Car-Truck

Price $109.05 $87.24 Details W: 10 x H: 11.75 x D: 4.25 Weight 10.50 lbs. Page Count 1000+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-57817 OEM Number FPS-12106-92 In Stock
Flat US shipping rate: $24.95
Flat International shipping rate: $144.15

---

Description

1991 Ford Powertrain Control Emissions Diagnosis Service Manual. ORIGINAL.

Note: On Board Diagnostics II (OBD-II or ODB2) is an advanced/improved technology to ODB-I (OBD1). OBD-II provides better and more standardized vehicle protocols and system checks data. OBD-I needs a corded connection and the port is usually found under the hood, while an OBD-II port is usually located within a couple of feet of the steering wheel and data will often be accessed via an ODB-II adapter that supports Bluetooth or Wi-Fi connectivity. These older manuals are OBD-I and did not differentiate in the title/on the cover as there wasn't an OBD-II spec at the time.

Information contained within this official Ford Motor Company reference manual provides the user a step-by-step approach for diagnosing drivability, emission and power train control system symptoms. This manual should be used in conjunction with the Shop Manual and Wiring Diagram, which are NOT included.

Appropriate service methods and procedures are essential for the safe, reliable operation of all motor vehicles as well as the personal safety of the individual doing the work. This manual provides general directions for performing service with tested, effective techniques. Following them will help assure reliability. There are numerous variations in procedure, techniques, tools and parts for servicing vehicles, as well as in the skill of the individual doing the work. This manual cannot possibly anticipate all such variations and provide advice or cautions as to each. The descriptions and specifications contained in the manual were in effect at the time of publication. Note: These manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments.

Applicable models:
Ford: Escort, Tempo, Mustang, Thunderbird, Taurus, Crown Victoria, Ranger, Explorer, Aerostar, Econoline, F-Series, Probe
Lincoln: Continental, Mark VII, Town Car
Mercury: Tracer, Topaz, Cougar, Sable, Grand Marquis

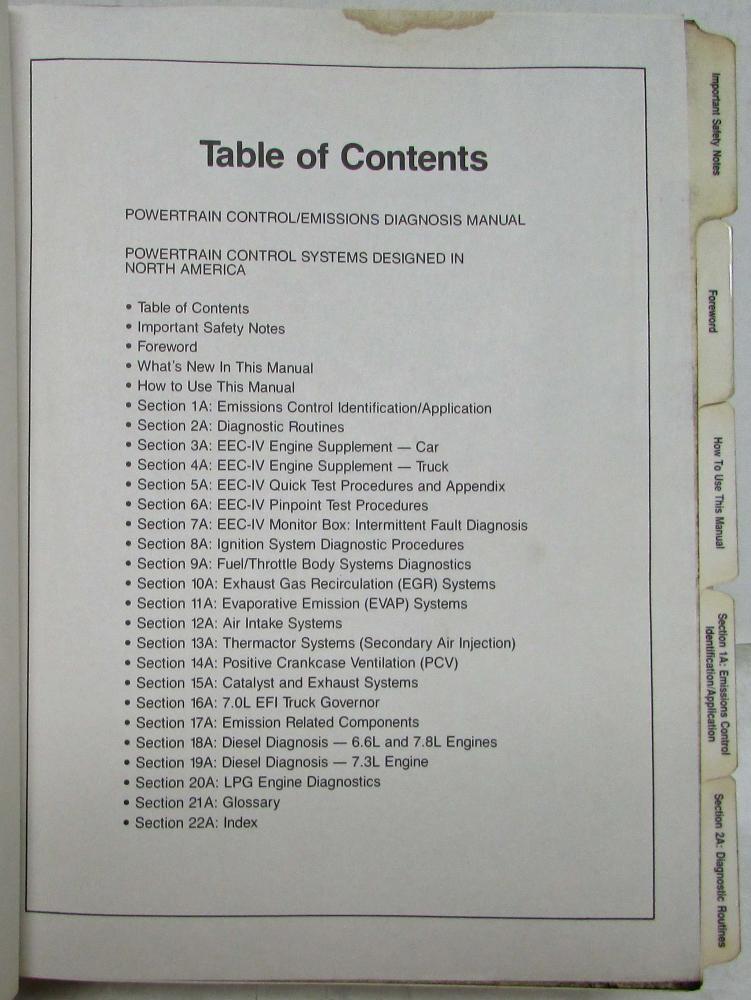

Contents:

Table of Contents
Important Safety Notes

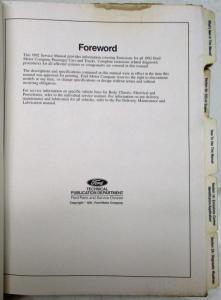

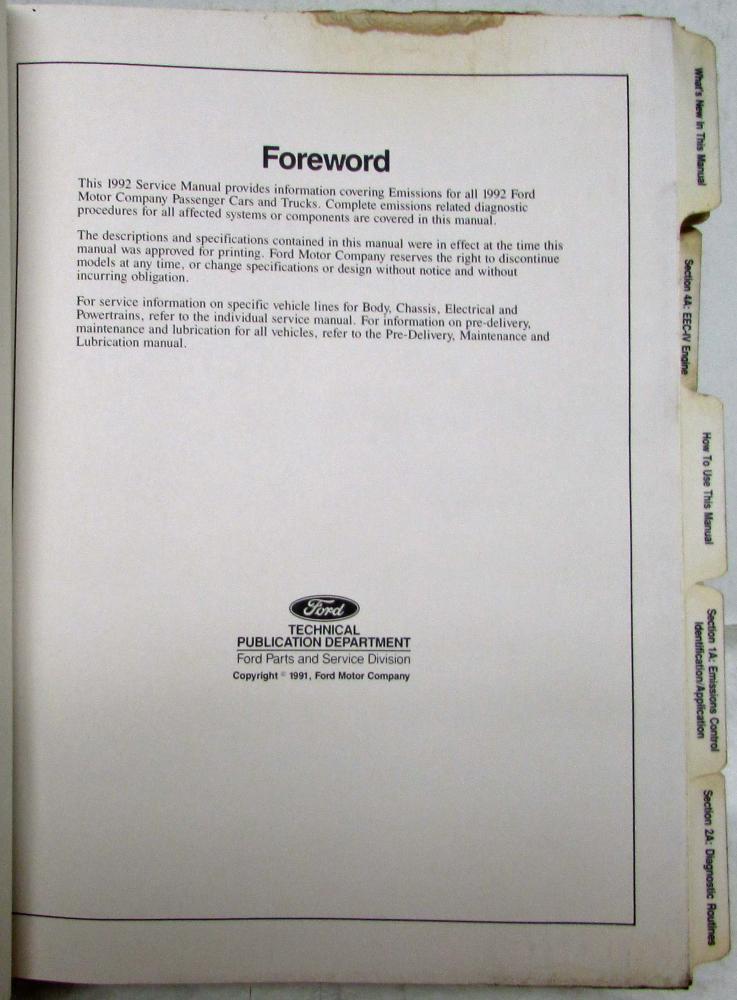

Forward
What's New in This Manual
How to Use this Manual
Section 1A: Emissions Control Identification/Application
Section 2A: Diagnostics Routines

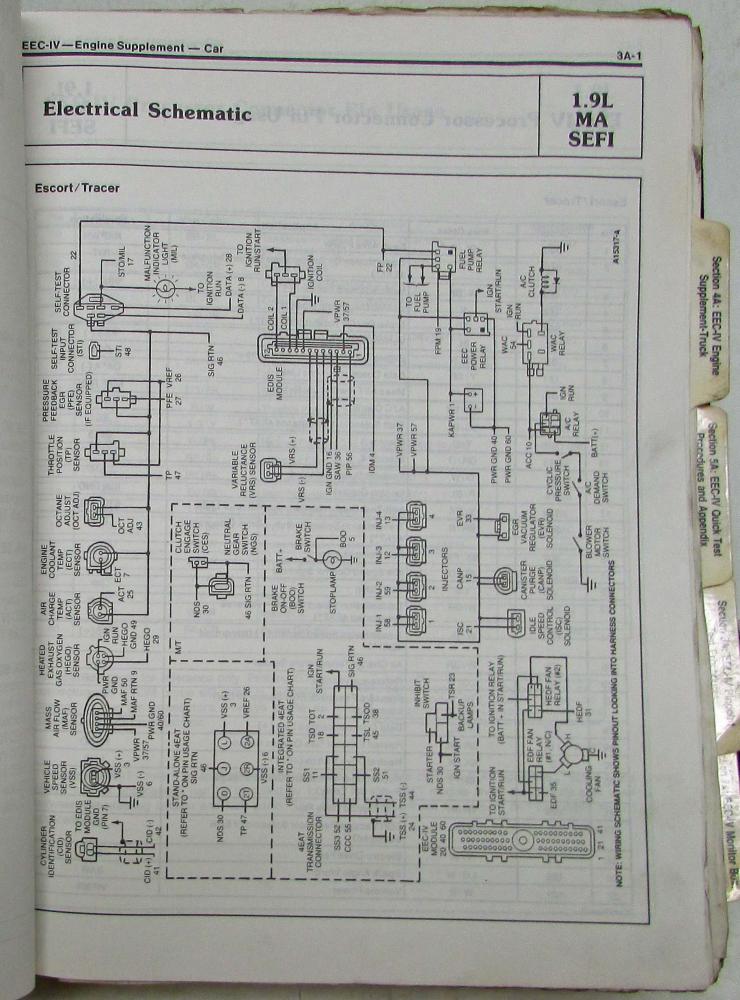

Section 3A: EEC-IV Engine Supplement - Car
Section 4A: EEC-IV Engine Supplement - Truck
Section 5A: EEC-IV Quick Test Procedures and Appendix

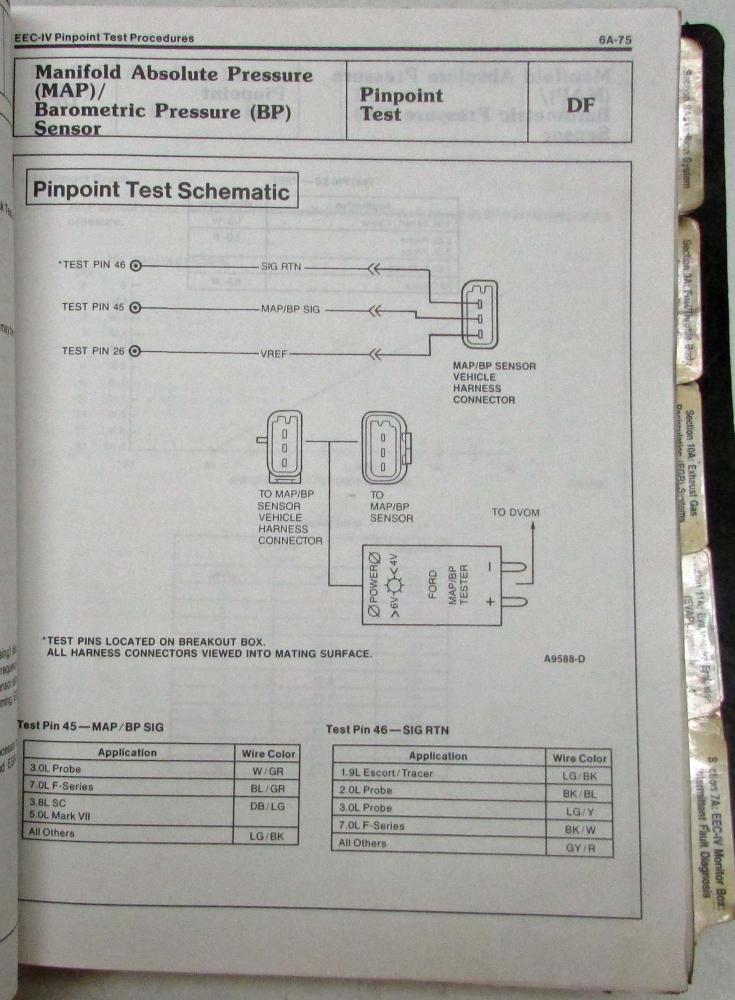

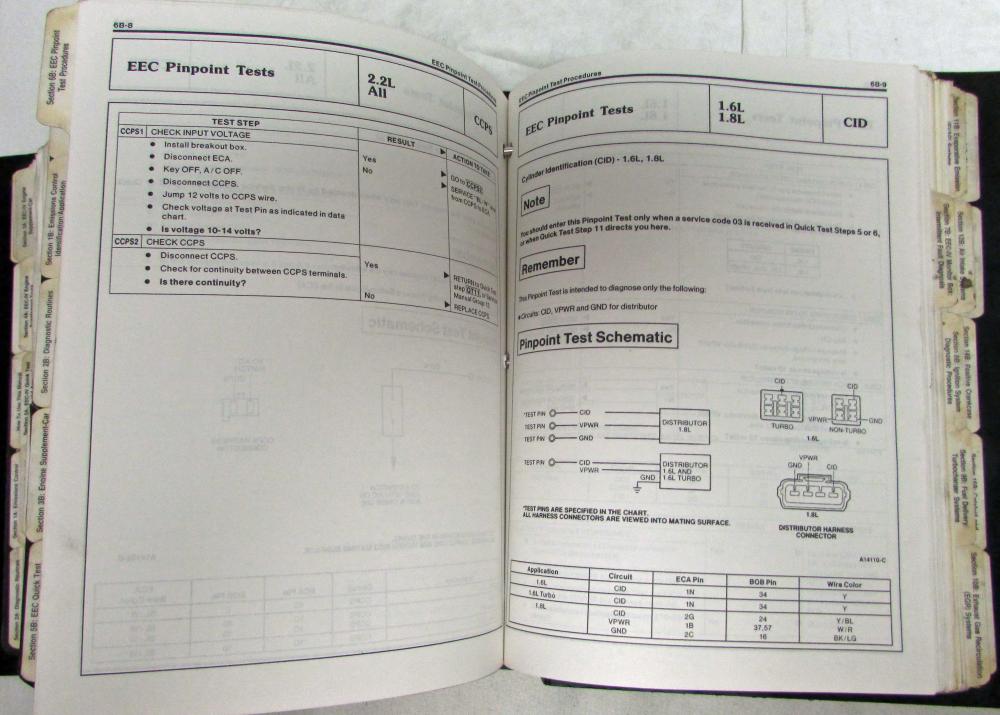

Section 6A: EEC-IV Pinpoint Test Procedures
Section 7A: EEC-IV Monitor Box: Intermittent Fault Diagnosis
Section 8A: Ignition System, Diagnostic Procedures

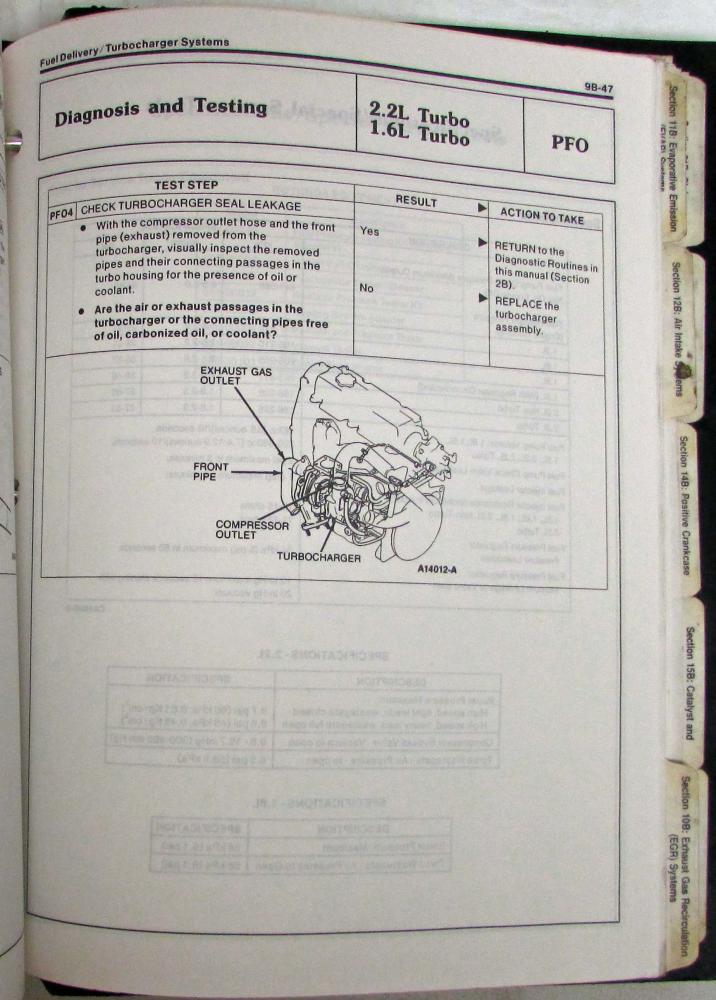

Section 9A: Fuel/Throttle Body Systems Diagnosis
Section 10A: Exhaust Gas Recirculation (EGR) Systems
Section 11A: Evaporative Emission (EVAP) Systems
Section 12A: Air Intake Systems
Section 13A: Thermactor Systems (Secondary Air Injection)
Section 14A: Positive Crankcase Ventilation (PCV)
Section 15A: Catalyst and Exhaust Systems
Section 16A: 7.0L EFI Truck Governor
Section 17A: Emission Related Components
Section 18A: Diesel Diagnosis - 6.6L and 7.8L Engines
Section 19A: Diesel Diagnosis - 7.3L Engine
Section 20A: LPG Engine Diagnostics
Section 21A: Glossary

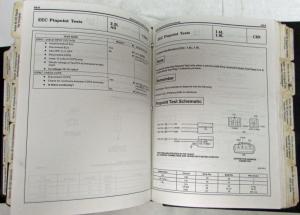

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. This is not a coffee table book. With this type of book, it is the content that reigns supreme and the information within is still legible and can give valuable insight into the care and maintenance of a vehicle. The images shown are representative of what is shipped.
