1993 Mazda MX-3 Body Electrical Troubleshooting Manual Service Shop Repair Book

Price $29.95 $23.96 Details W: 8.5 x H: 11 x D: 0.9375 Weight 2.12 lbs. Page Count 300+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45389 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $51.60
Description

1993 Mazda MX-3 Body Electrical Troubleshooting Manual. Original.

This manual is intended as an aid for repairing the body electrical systems of the vehicle.

Note: These manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments.

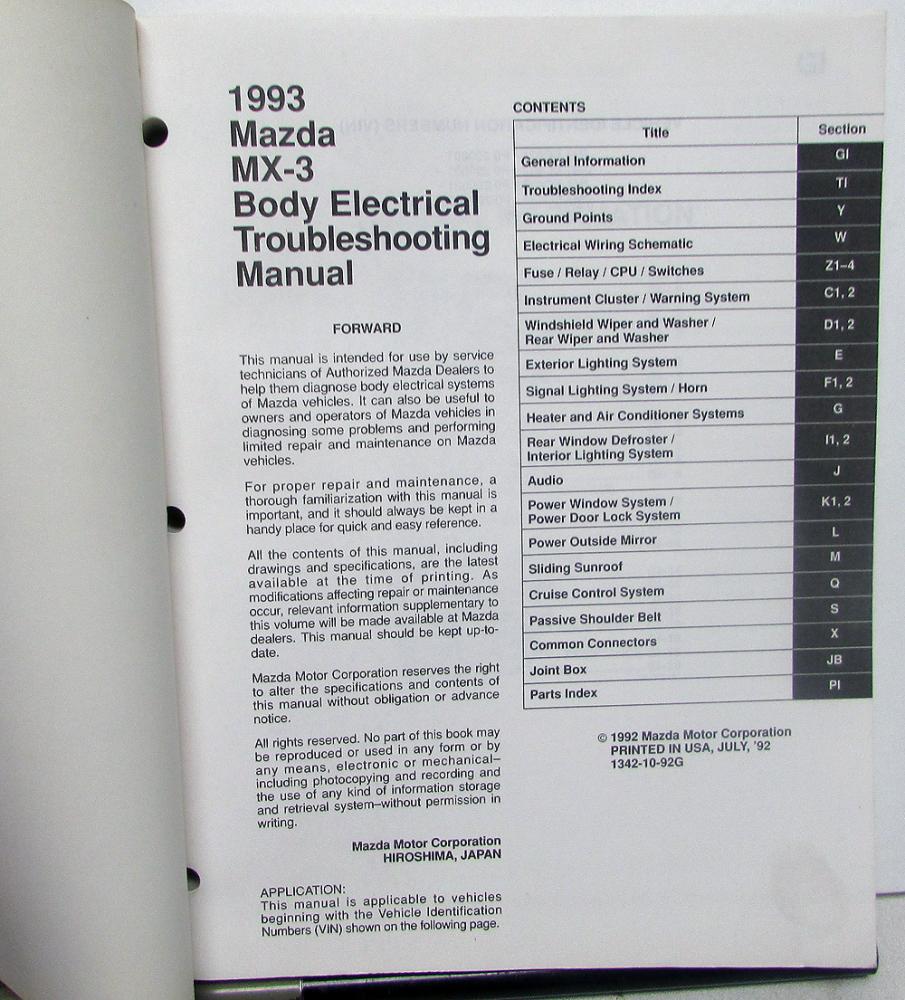

Contents:

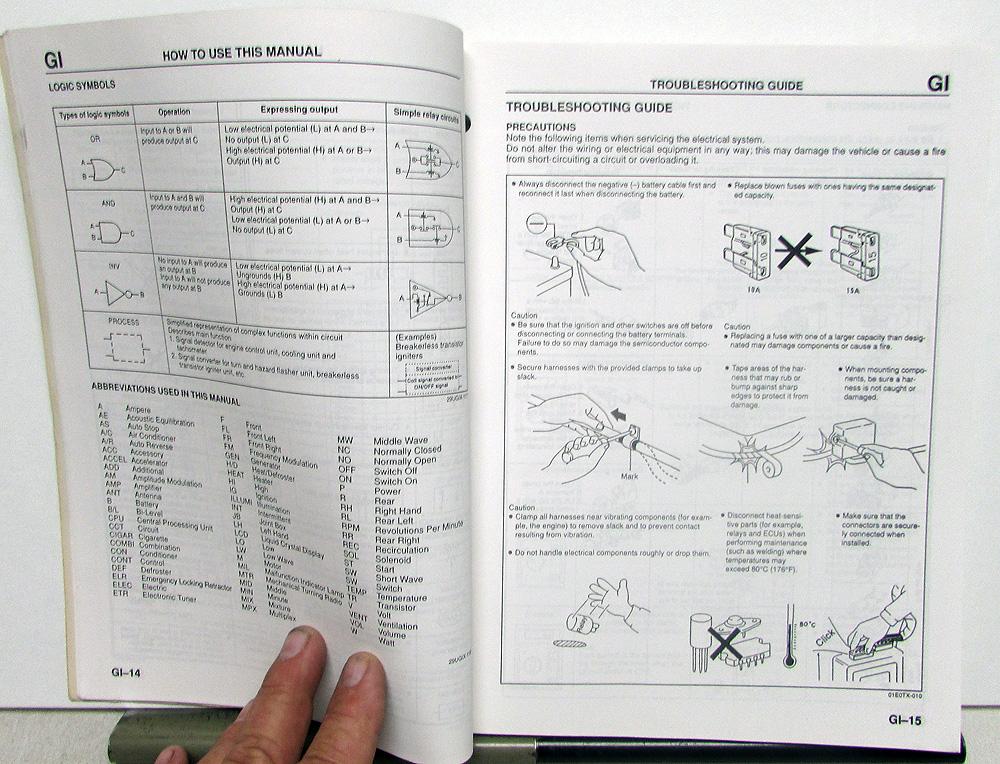

General Information
Troubleshooting Index
Ground Points
Electrical Wiring Schematic
Fuse/Relay/CPU/Switches
Instrument Cluster/Warning System

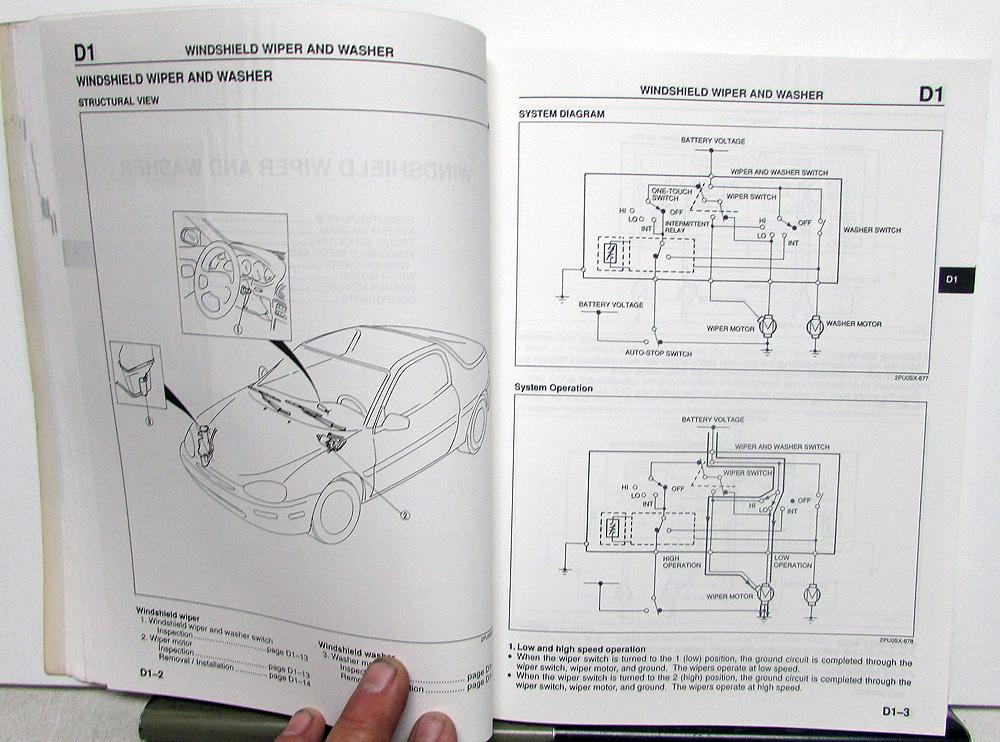

Windshield Wiper and Washer/Rear Wiper and Washer
Exterior Lighting System

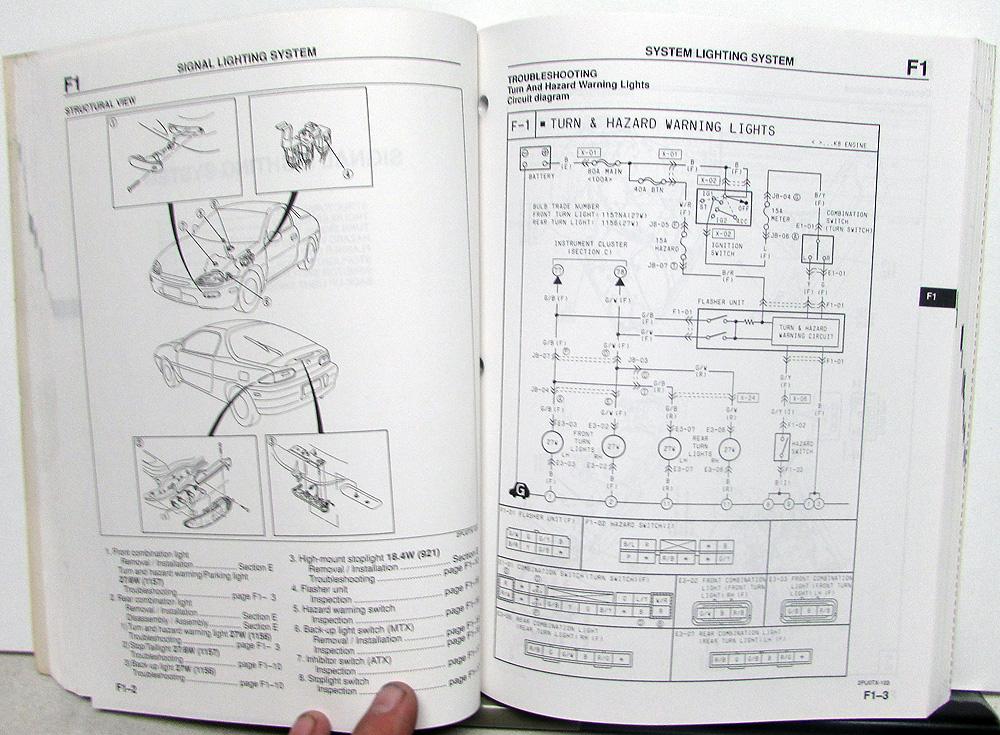

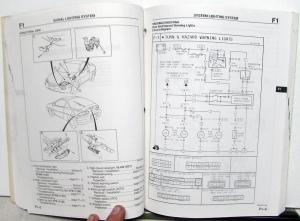

Signal Lighting System/Horn

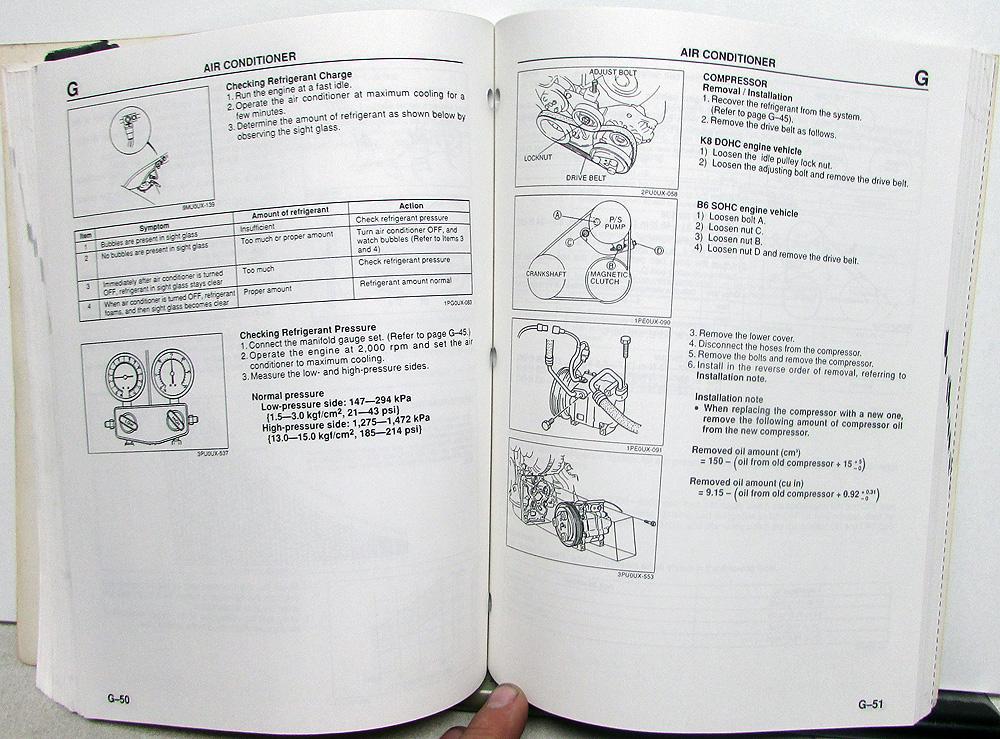

Heater and Air Conditioner Systems
Rear Window Defroster/Interior Lighting System
Audio
Power Window System/Power Door Lock System

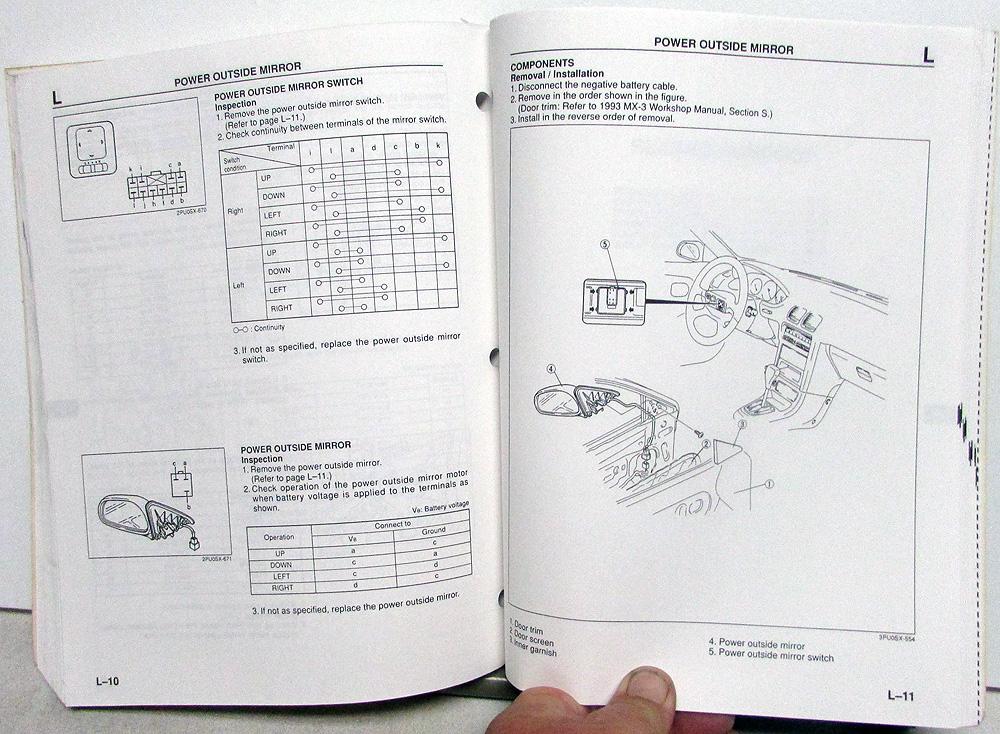

Power Outside Mirror
Sliding Sunroof
Cruise Control System
Passive Shoulder Belt
Common Connectors
Joint Box
Parts Index

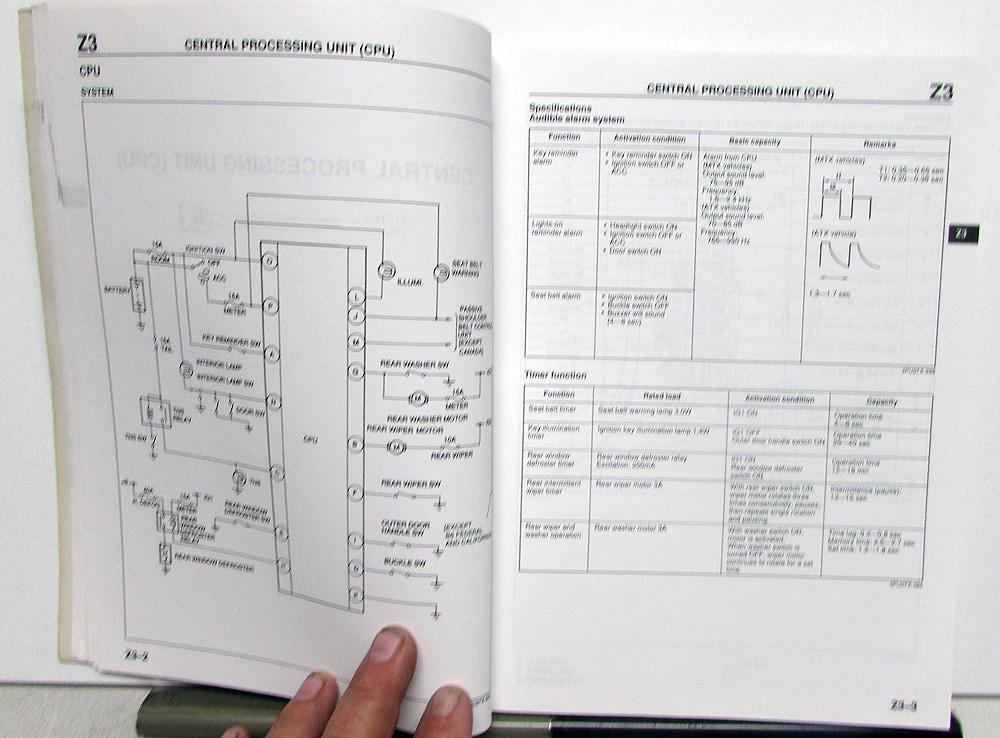

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
