1994-1998 Ford E4OD Transmission Reference Manual PTB-802 F-Series Bronco Van

Price $76.95 $61.56 Details W: 11.75 x H: 11.5 x D: 3 Weight 6.25 lbs. Page Count 250+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-60337 OEM Number PTB-802
Flat US shipping rate: $19.95
Flat International shipping rate: $119.95

---

Description

1994-1998 Ford E4OD Transmission Reference Manual PTB-802. Original.

Looks as though it is applicable to the 1994-1998 Ford F-Series (F150-F350), Econoline (E150-E350), Bronco.

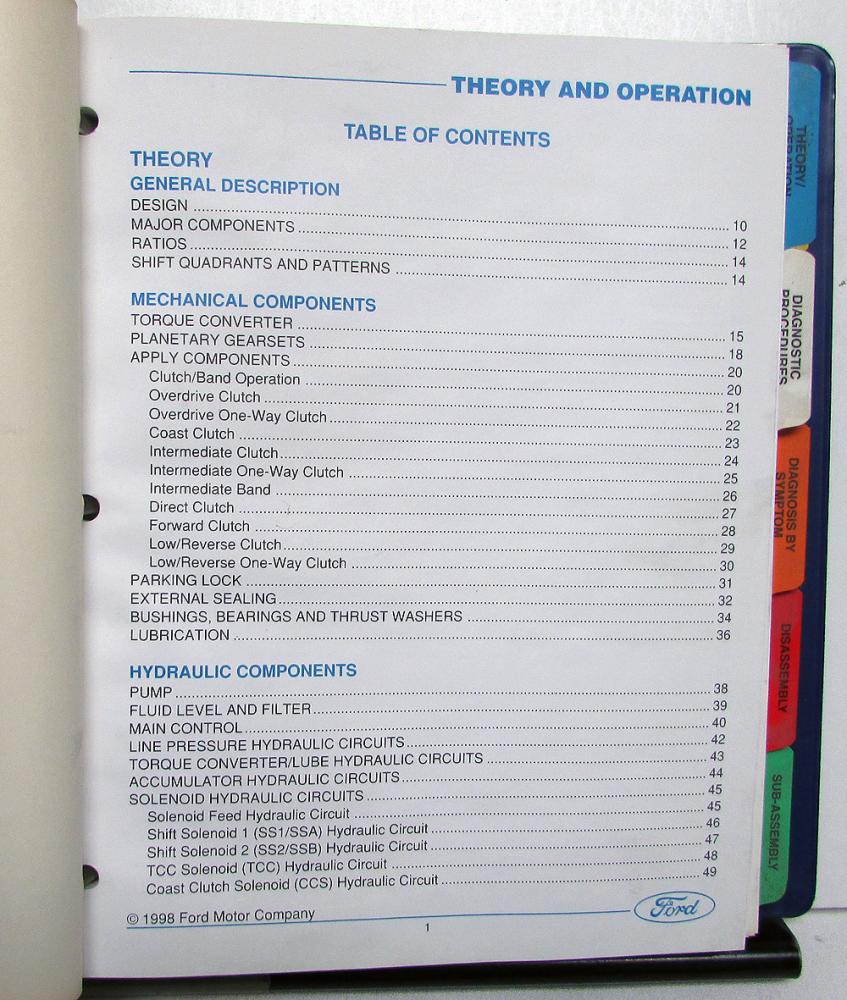

Sections:

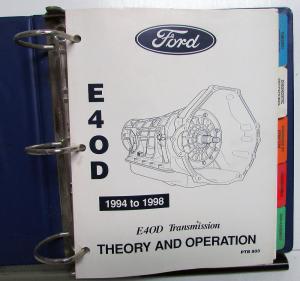

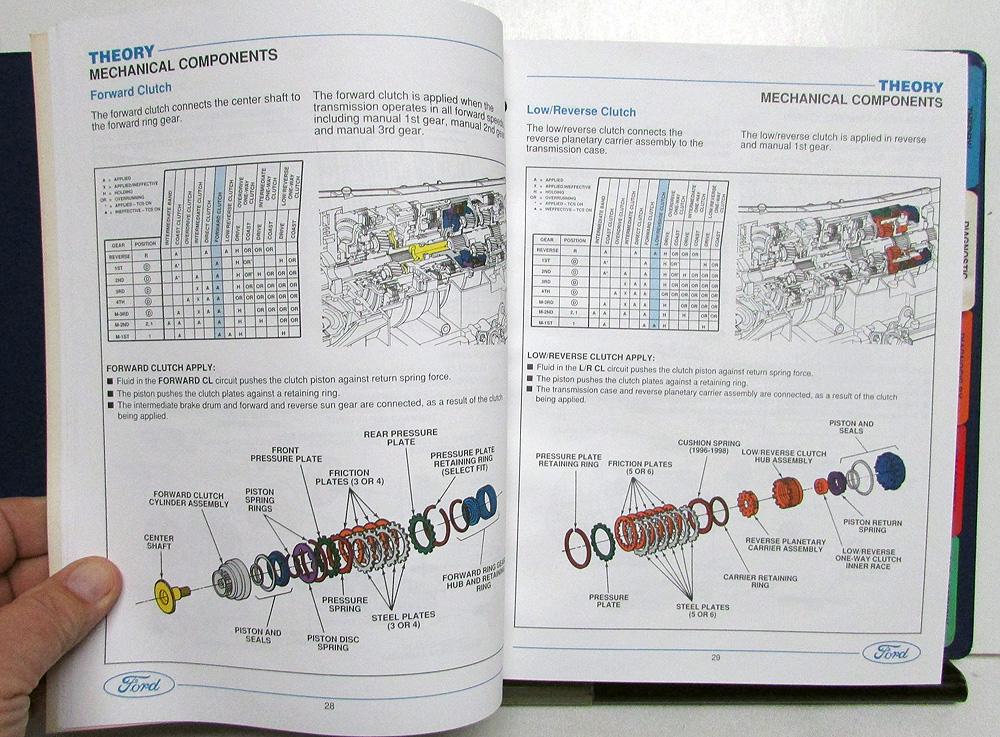

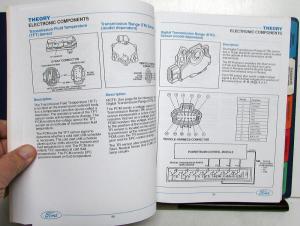

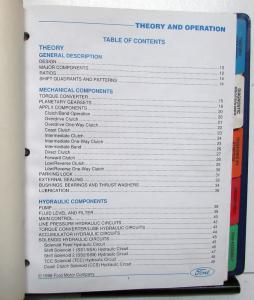

Theory/Operation

The Ford E4OD transmission is a fully automatic, electronically controlled four-speed unit with a three-element locking torque converter. The main operating components of the E4OD transmission include a converter clutch, six multiple-disc friction clutches, one band, two sprag one-way clutches and a roller one-way clutch providing the desired function of the three planetary gearsets.

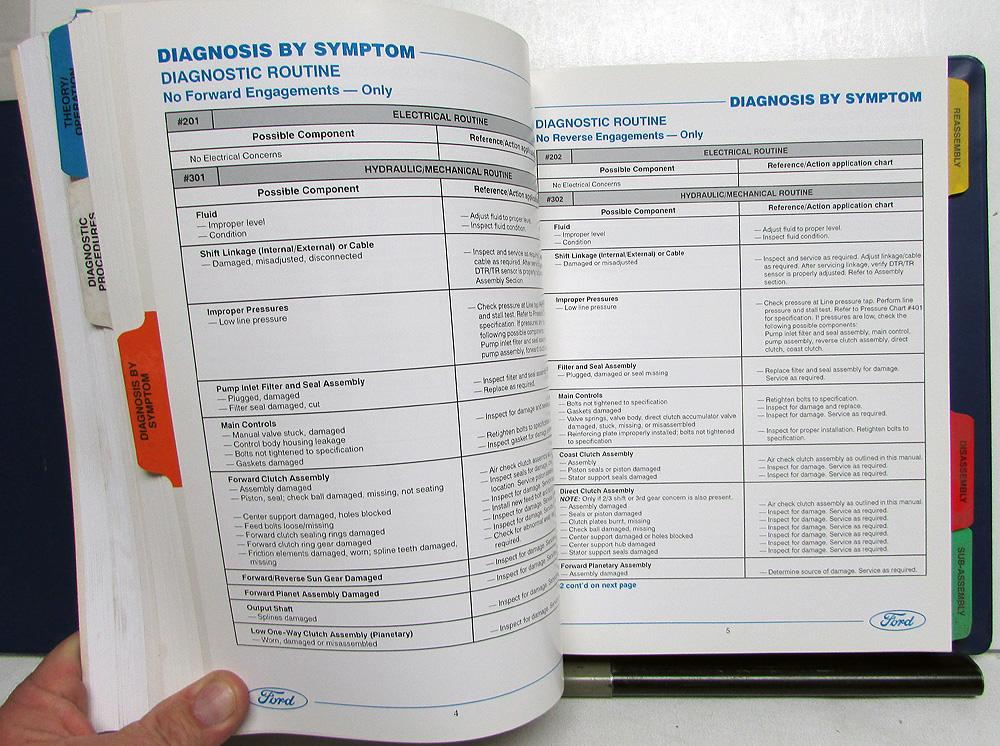

Diagnosis by Symptom

The E4OD diagnostic charts follow a new format. The enhanced format is used to separate electrical from mechanical causes or concerns.

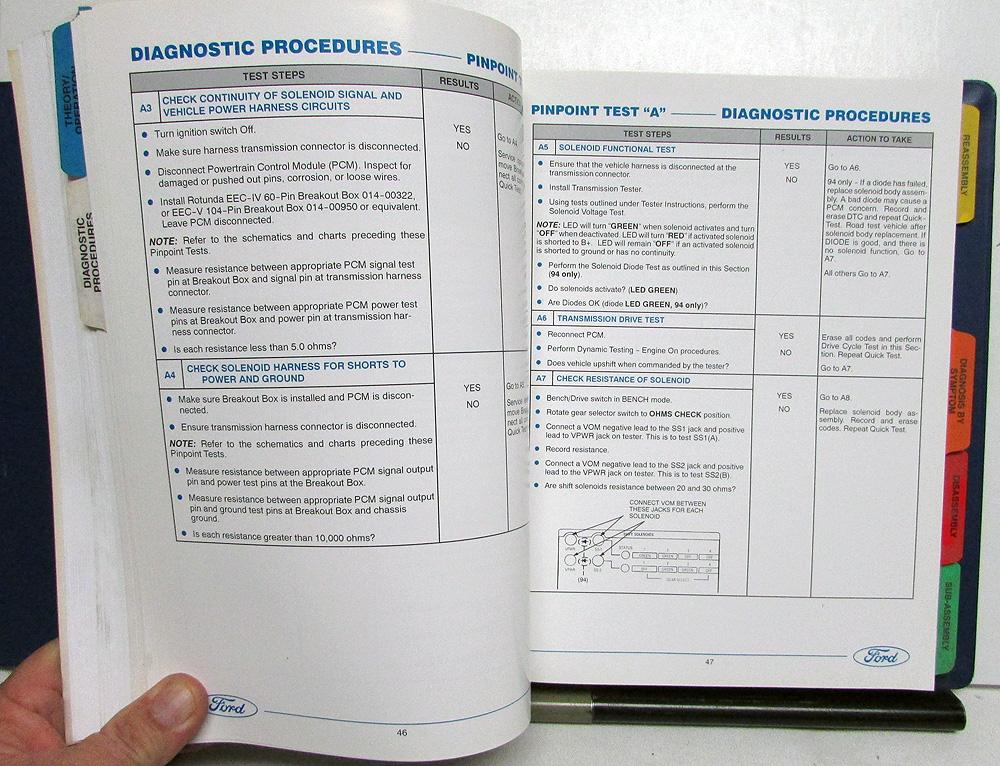

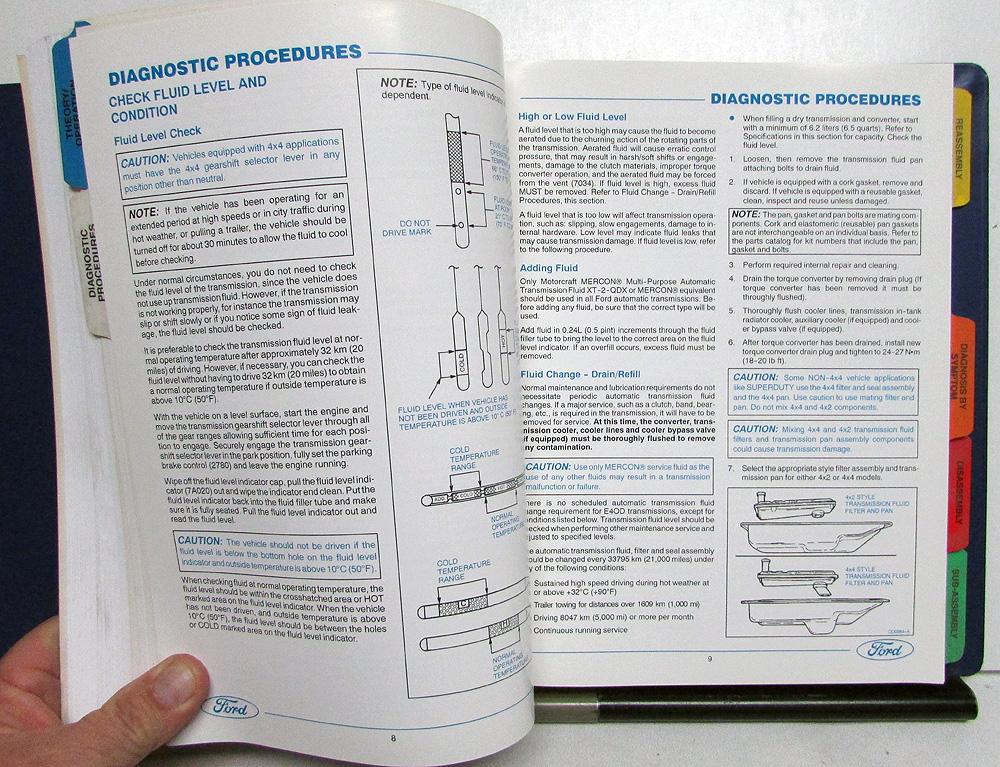

Diagnostic Procedures

The E4OD transmission is a fully automatic, electronically controlled, four-speed unit with a locking torque converter. The main operating components of the E4OD transmission include a converter clutch, six multiple-disc friction clutches, one band, two sprag one-way clutches and a roller one-way clutch which provide for the desired function of three planetary gearsets.

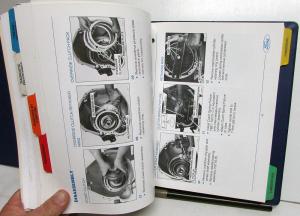

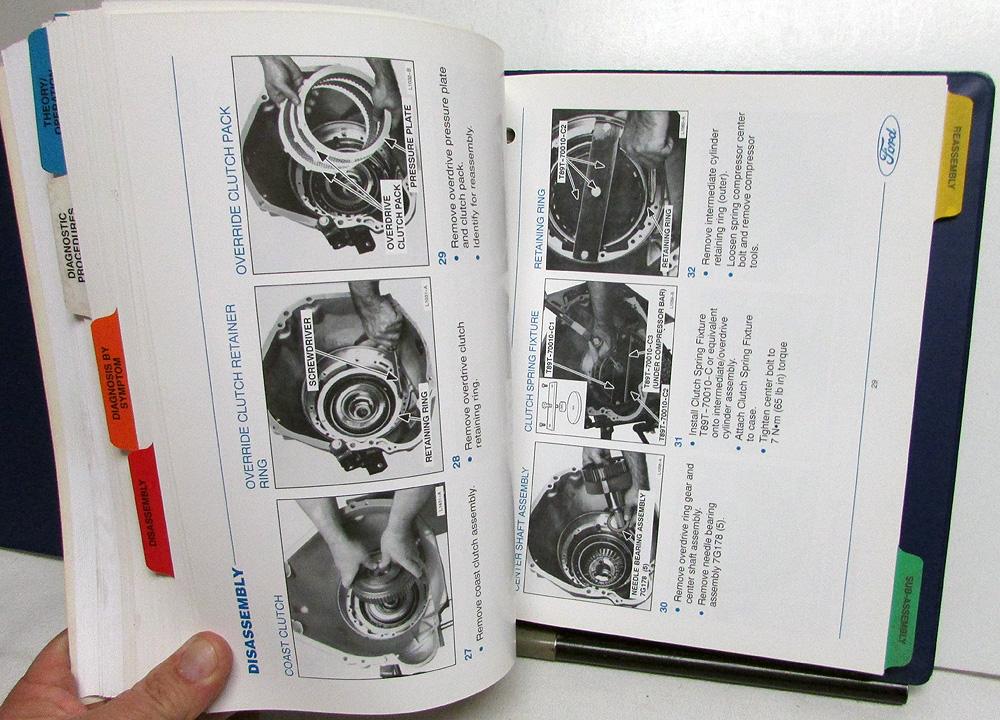

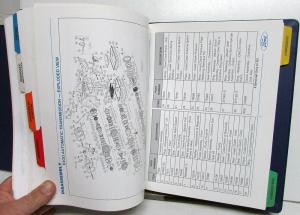

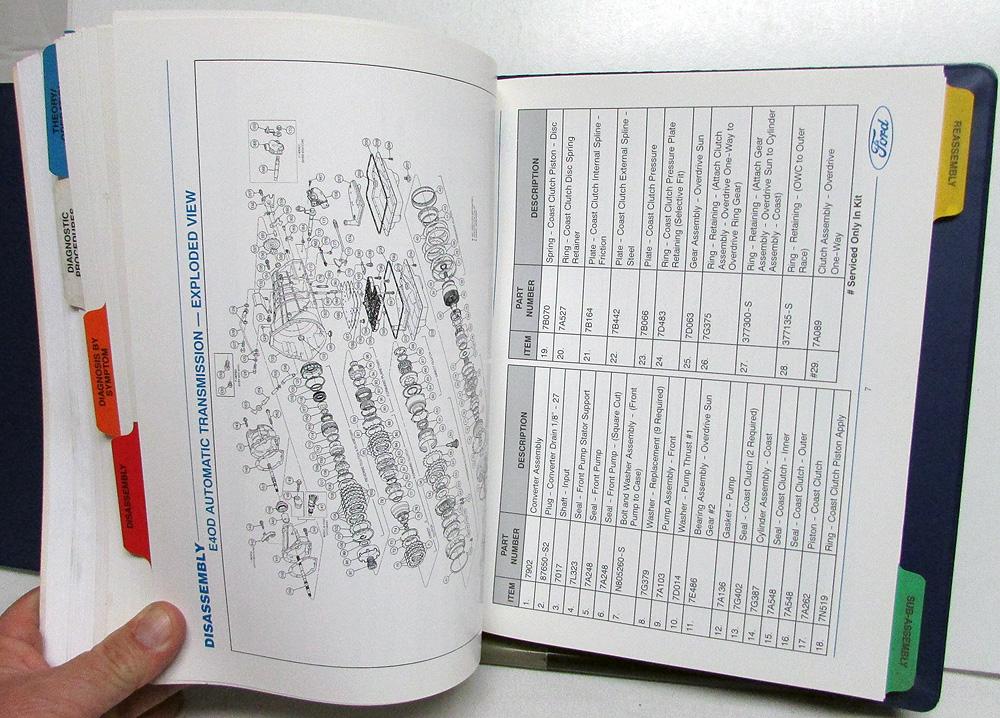

Disassembly/Reassembly

The flip chart pictorially illustrates step-by-step disassembly and assembly procedures of the E4OD Automatic Transmission. The use of special tools, when required, has been identified in the procedural step involved.

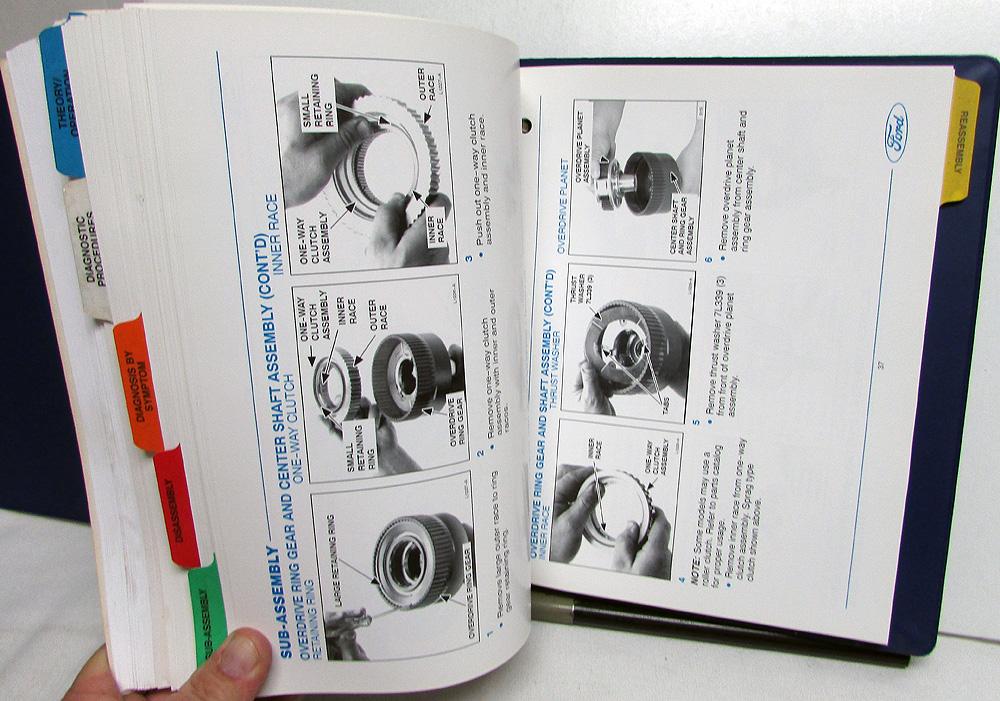

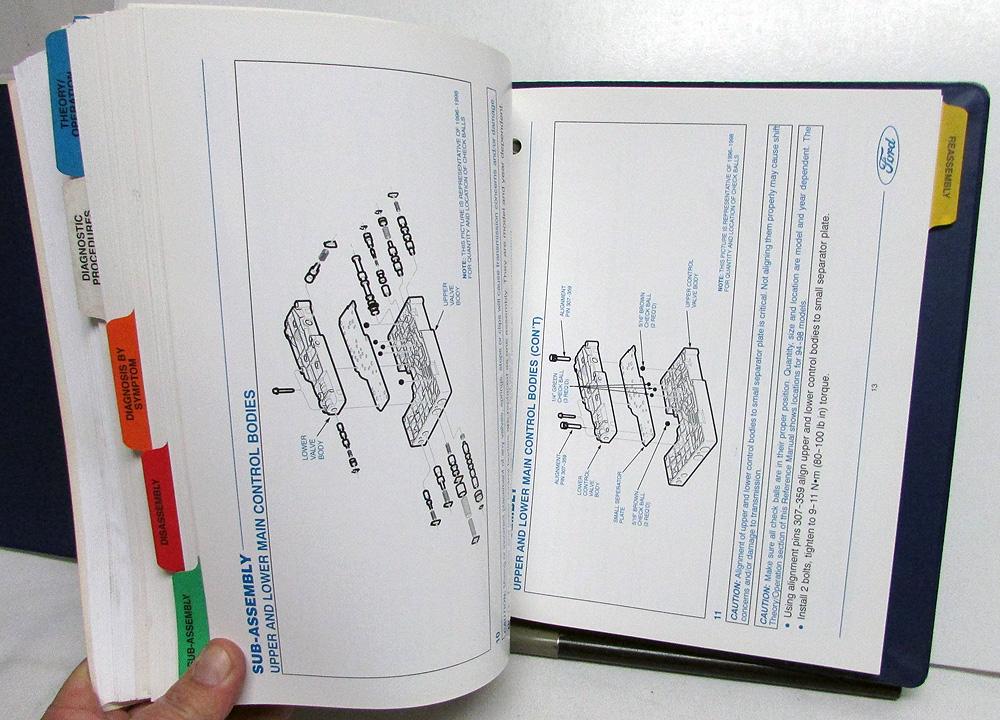

Sub-Assembly

Specifications

Very informative and useful tool for the Ford Owner.

Out of Stock.
