1994 Toyota Paseo Electrical Wiring Diagram Manual US & Canada

Price $19.00 $15.20 Details W: 8.5 x H: 11 x D: 0.25 Weight 0.63 lbs. Page Count 170+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-27835 OEM Number Pub No EWD178U In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $27.35

---

Description

1994 Toyota Paseo Electrical Wiring Diagram Manual. USA & Canada. ORIGINAL.

This wiring diagram manual has been prepared to provide information on the electrical system of the 1994 Toyota Paseo. The descriptions and specifications contained in the manual were in effect at the time of publication. Note: These manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments.

Applicable models: EL44 Series

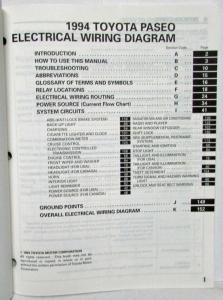

Contents:
Introduction
How to Use This Manual
Troubleshooting
Abbreviations
Glossary of Terms and Symbols
Relay Locations
Electrical Wiring Routing
Power Source (Current Flow Chart)
System Circuits
Ground Points
Overall Electrical Wiring Diagram

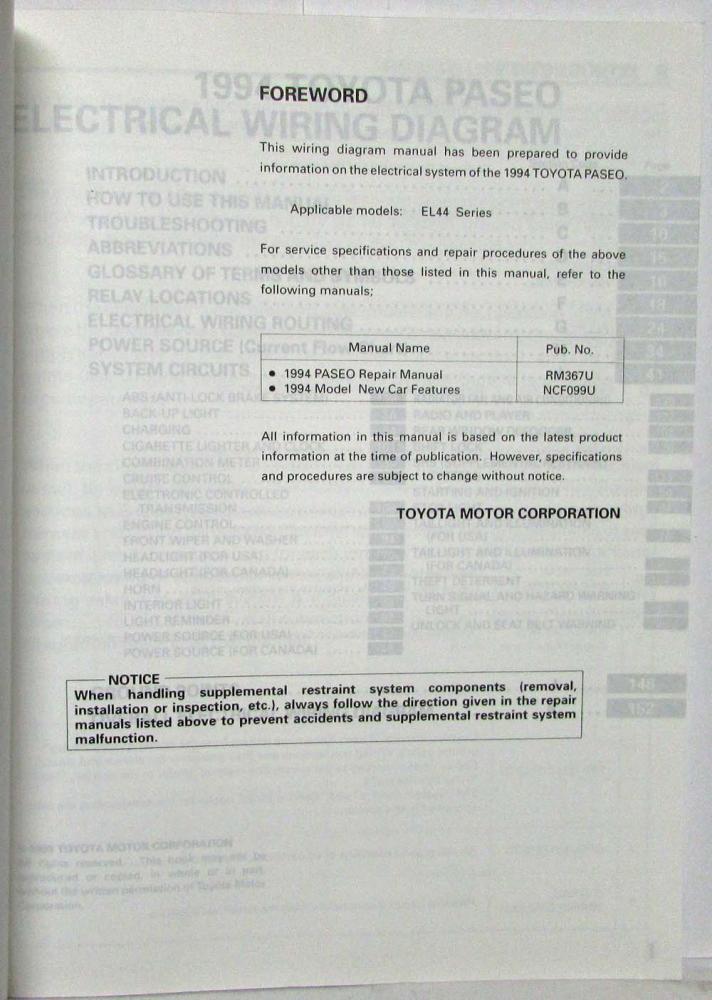

For service specifications and repair procedures of the above models other than those listed in this manual, refer to the following manuals (not included):

1994 Paseo Repair Manual (RM367U)
1994 Model New Car Features (NCF099U)

Condition: Wiring Diagrams have been used in Dealerships, Independent Garages and in Fleet Environments and thus reflect such use, most often showing signs of soiling and may show other signs of age and wear, but the information within is still legible and can give valuable insight in the care and maintenance of vehicles. The images shown are reflective of the of kind of condition one might find of manuals that are shipped.
