1996 Isuzu Rodeo Electrical Troubleshooting Manual

Price $39.00 $31.20 Details W: 8.5 x H: 11 x D: 0.75 Weight 1.62 lbs. Page Count 200+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-44644 OEM Number UC096-ETM-L01 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $33.35

Description

1996 Isuzu Rodeo (UC) Electrical Troubleshooting Manual. Original.

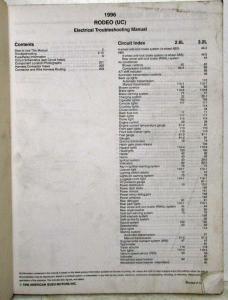

This manual contains the following troubleshooting information:

Fuse Information
Circuit Details

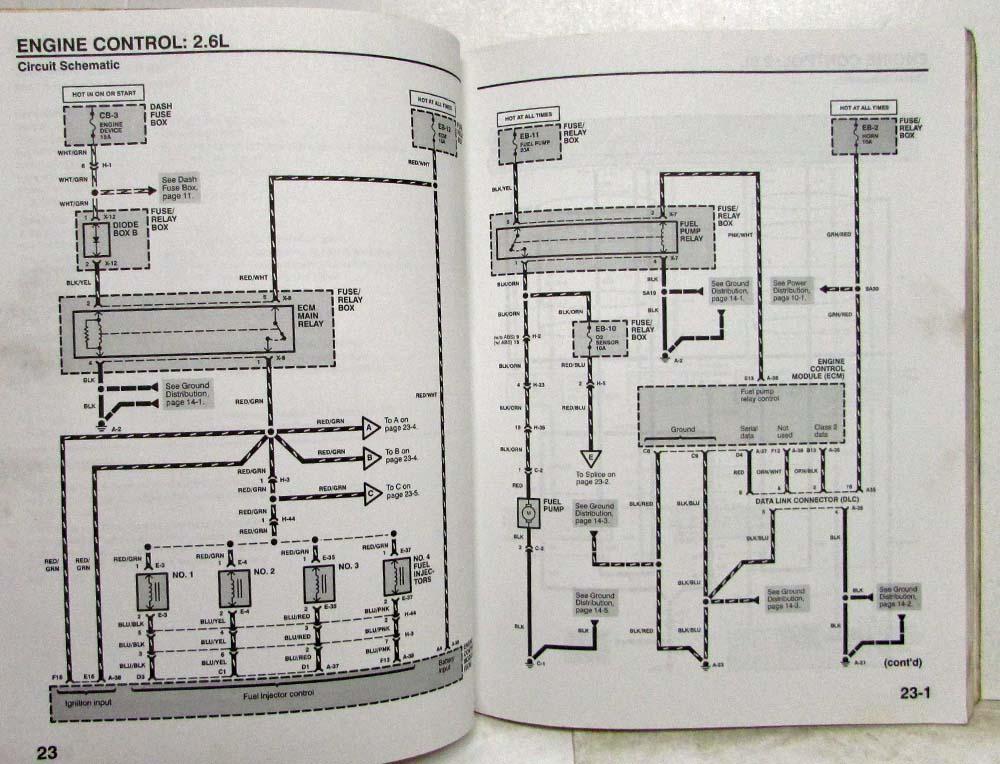

Electrical Circuit Schematic
Component Location Index
Circuit Operation
Quick Checks (if required)
Troubleshooting (if required)

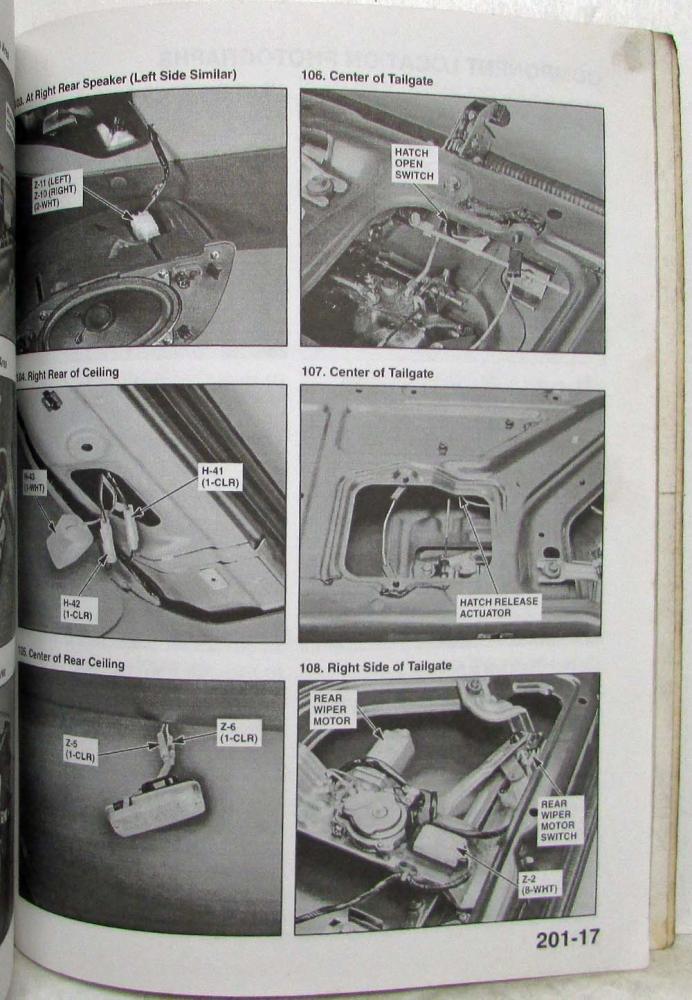

Component Location Photographs
Harness Connector Faces
Harness Routing Views
Connector and Ground Cross-reference Index


Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
