1996 Mazda 626 MX-6 Body Electrical Troubleshooting Manual

Price $49.00 $39.20 Details W: 8.5 x H: 11 x D: 1.1875 Weight 2.81 lbs. Page Count Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45371 OEM Number 9999-95-084F-96 In Stock
Flat US shipping rate: $19.95
Flat International shipping rate: $80.75
Description

1996 Mazda 626 MX-6 Body Electrical Troubleshooting Manual. Original.

This manual is intended as an aid for repairing the body electrical systems of the vehicle.

Note: These manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments.

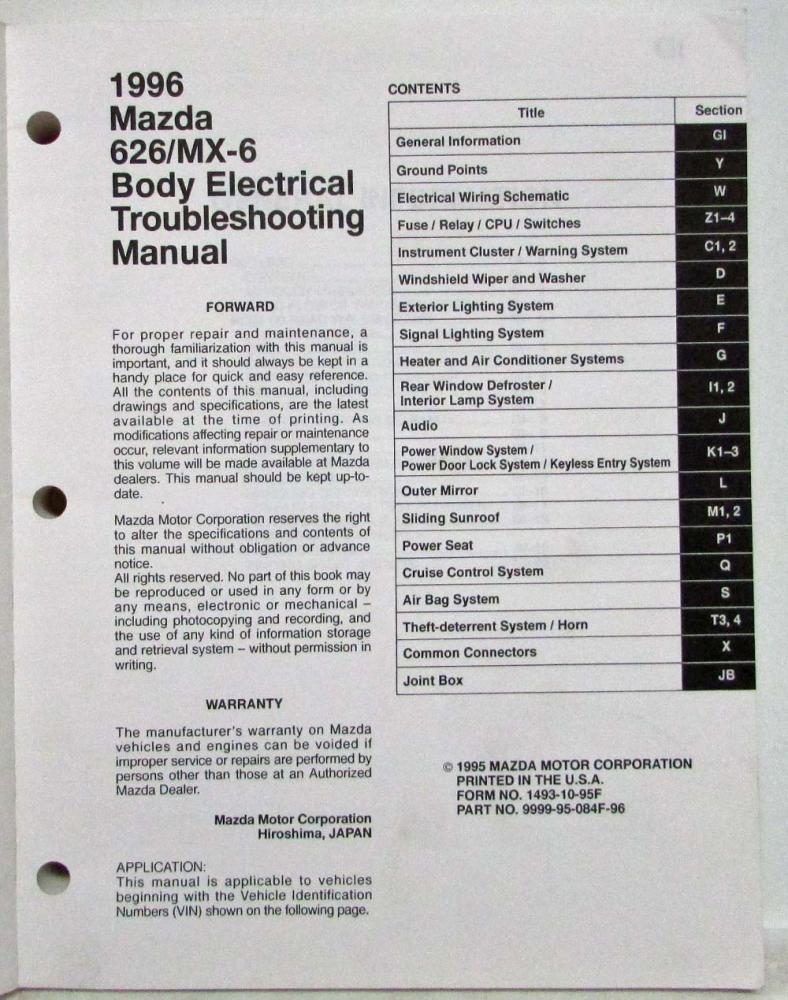

Contents:
General Information
Ground Points
Electrical Wiring Schematic
Fuse/Relay/CPU/Switches
Instrument Cluster/Warning System
Windshield Wiper and Washer

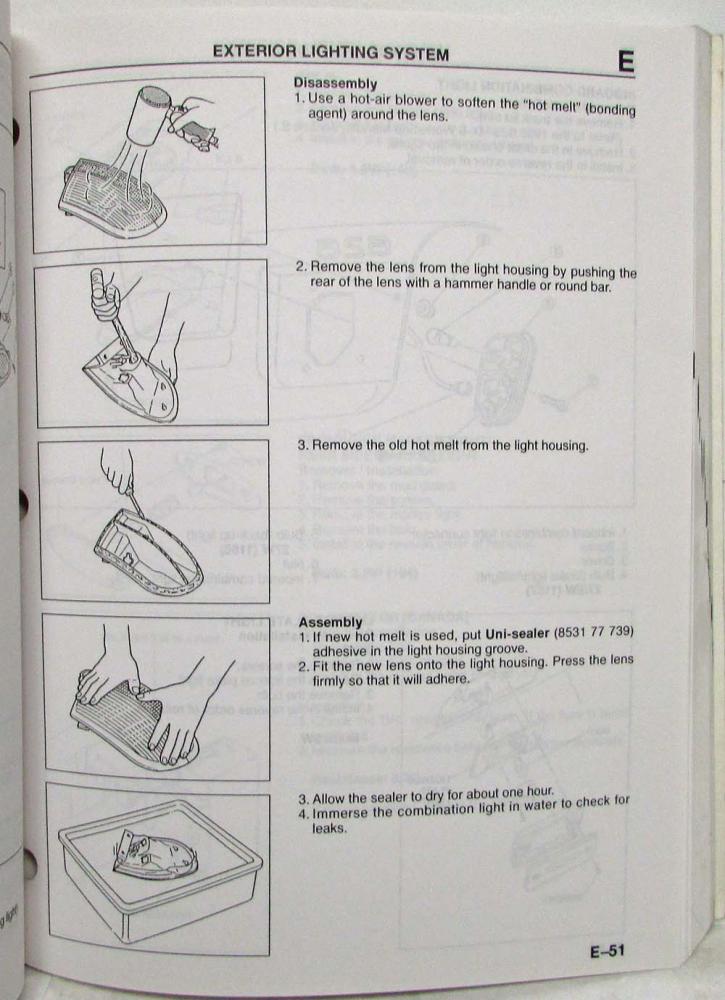

Exterior Lighting System
Signal Lighting System
Heater and Air Conditioner Systems
Rear Window Defroster/Interior Lamp System
Audio

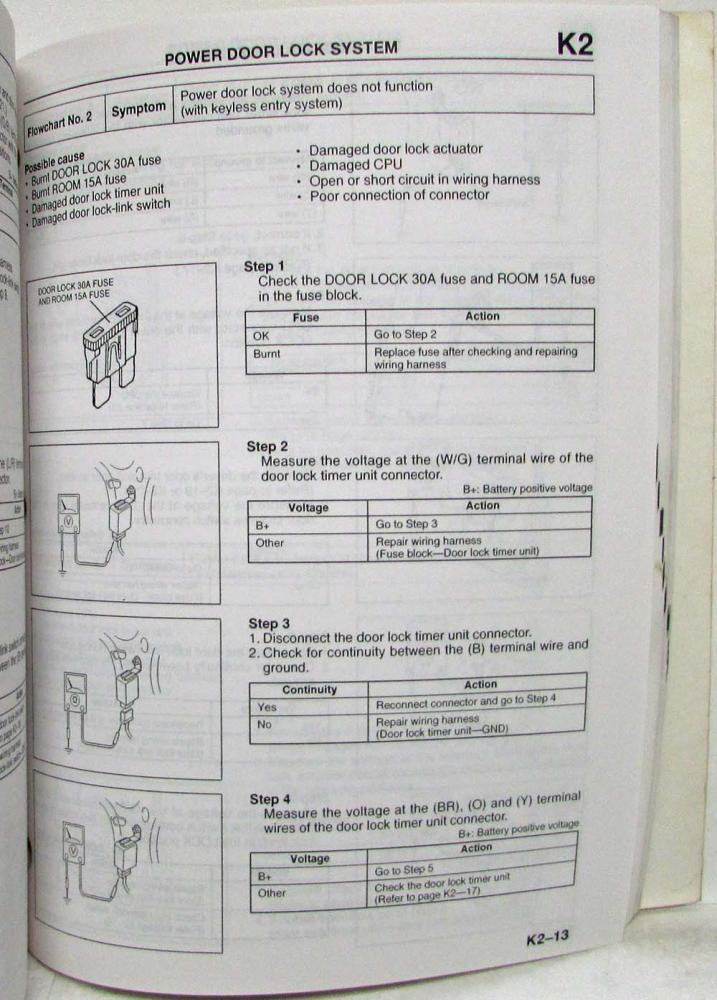

Power Window System/Power Door Lock System/Keyless Entry System
Outer Mirror
Sliding Sunroof
Power Seat
Cruise Control System
Air Bag System
Thef-deterrent System / Horn
Common Connectors
Joint Box

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped. Faded cover.
