1997 Mazda B4000 B3000 B2300 Pickup Truck Electrical Wiring Diagram Manual

Price $69.00 $55.20 Details W: 8.5 x H: 11 x D: 0.6875 Weight 1.50 lbs. Page Count 140+ Condition Used Original - Good Item Type Factory Manual Inventory Number WD-44978 OEM Number 9999-95-020G-97 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $33.35
Description

1997 Mazda B4000, B3000, B2300 Pickup Truck Electrical Wiring Diagram Manual.  Original.

This wiring diagram incorporates the wiring schematic for the basic vehicle and its available optional equipment. Actual vehicle wiring may vary slightly depending upon optional equipment and/or local specifications. All information contained in this booklet is based on the latest informatin available at the time of printing. Mazda Motor Corporation reserves the right to make changees without previous notice.

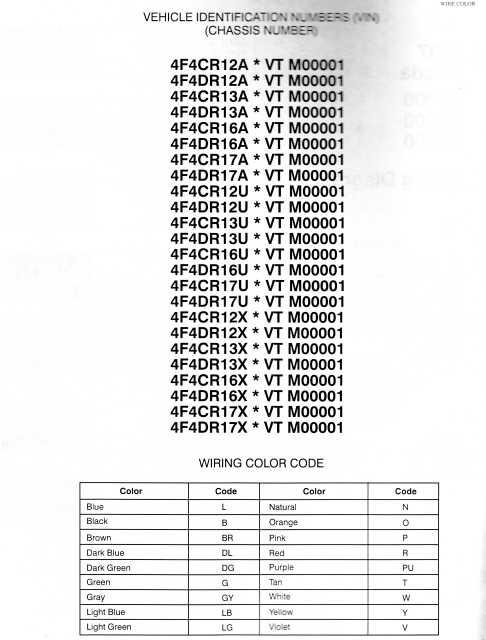

Application: This manual is applicable to vehicles beginning with the Vehicle Identification Numbers (VIN) shown in manual.

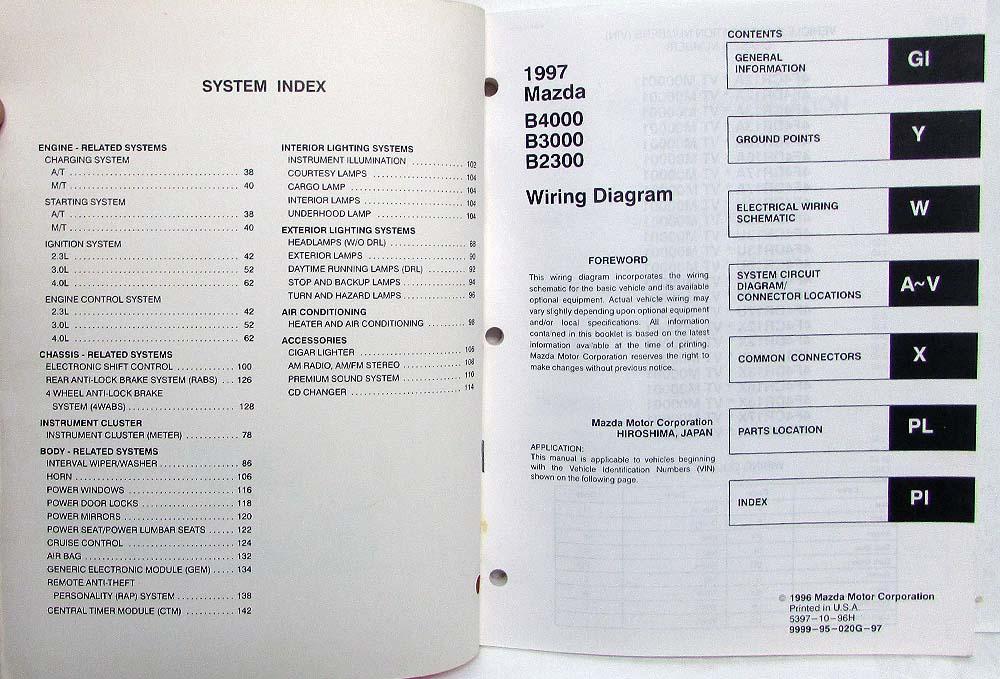

Contents:
General Information
Ground Points
Electrical Wiring Schematic
Systems Circuit Diagram/Connector Locations
Common Connectors
Parts Location
Index

Condition: Fading on the cover.
