1997 Subaru Legacy Service Shop Repair Manual Supplement - ABS 5.3i
PriceFlat US shipping rate: $14.95
Flat International shipping rate: $79.55
Description
1997 Subaru Legacy Service Shop Repair Manual Supplement - ABS 5.3i. Original.
Binder shows Volume 7. Not certain if the contents are what would have been in Volume 7 or if the binder was simply used to hold other sections. See contents below for what is in this binder.

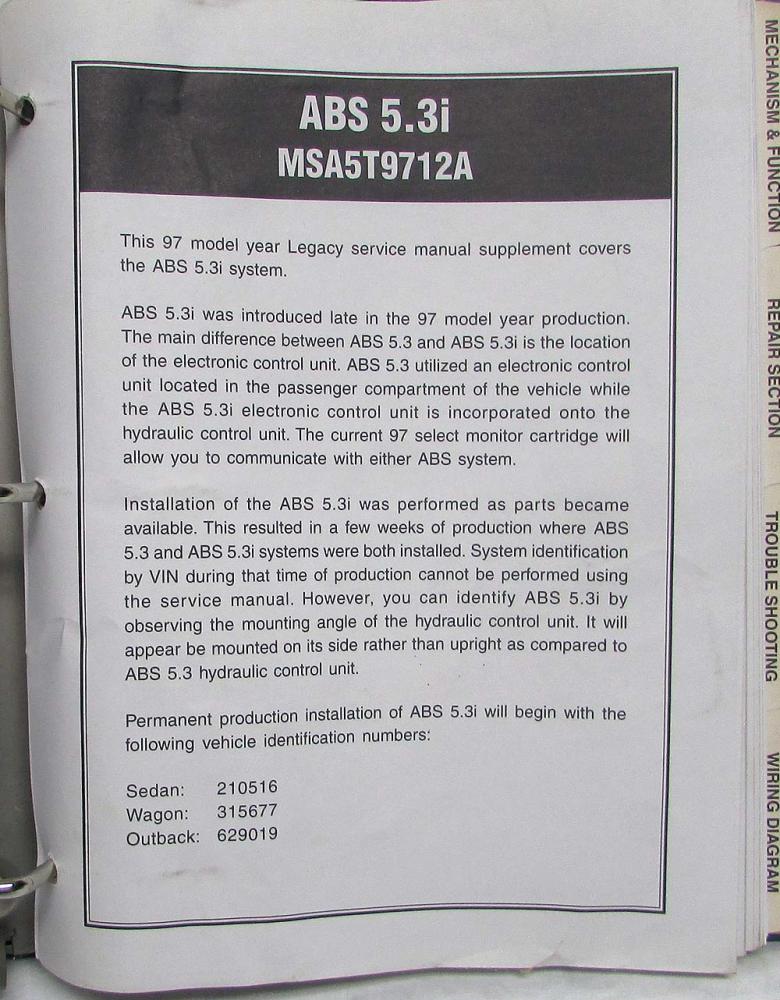

ABS 5.3i MSA5T9712A. This 1997 model year Legacy service manual supplement covers the ABS 5.3i system.
ABS 5.3i was introduced late in the 97 model year production. The main difference between ABS 5.3 and ABS 5.3i is the location of the electronic control unit. ABS 5.3 utilized an electronic control unit located in the passenger compartment of the vehicle while the AS 5.3i electronic control unit is incorporated onto the hydraulic control unit. The current 97 select monitor cartridge will allow you to communicate with either ABS system.
Installation of the ABS 5.3i was performed as parts became available. This resulted in a few weeks of production where ABS 5.3 and ABS 5.3i systems were both installed. System identification by VIN during that time of production cannot be performed using the service manual. However, you can identify ABS 5.3i by observing the mounting angle of the hydraulic control unit. It will appear be mounted on its side rather than upright as compared to ABS 5.3 hydraulic control unit.
Permanent production installation of ABS 5.3i was to bein with the following vehicle identification numbers:
Sedan: 210516
Wagon: 315677
Outback: 629019
Contents:

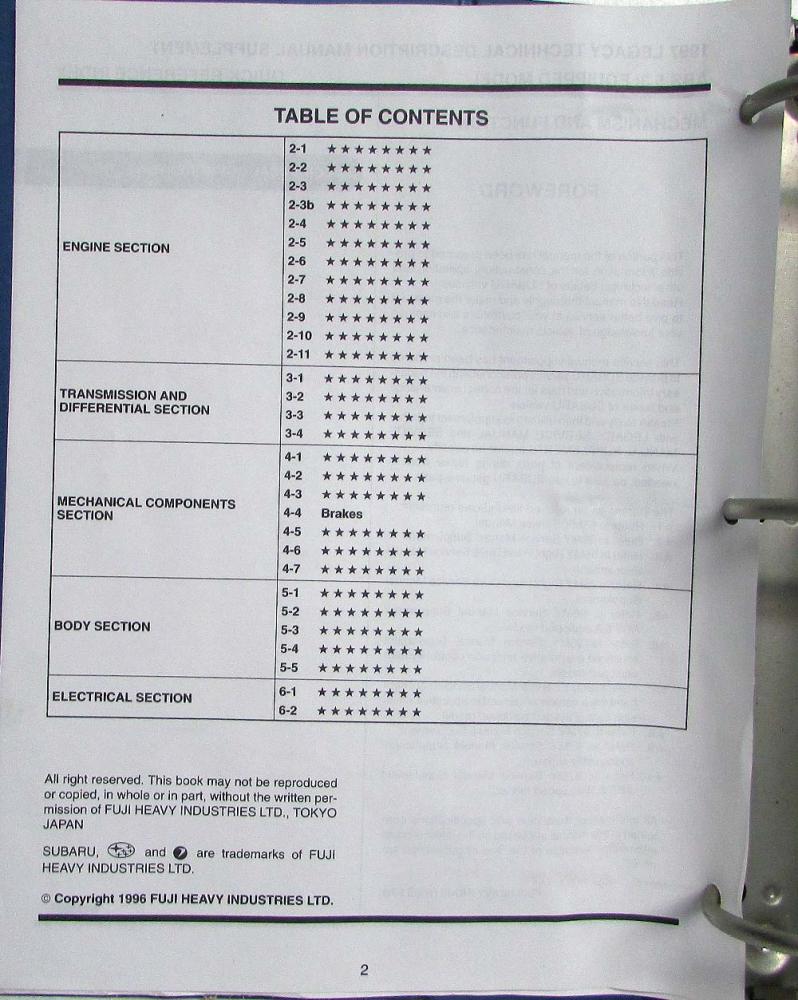

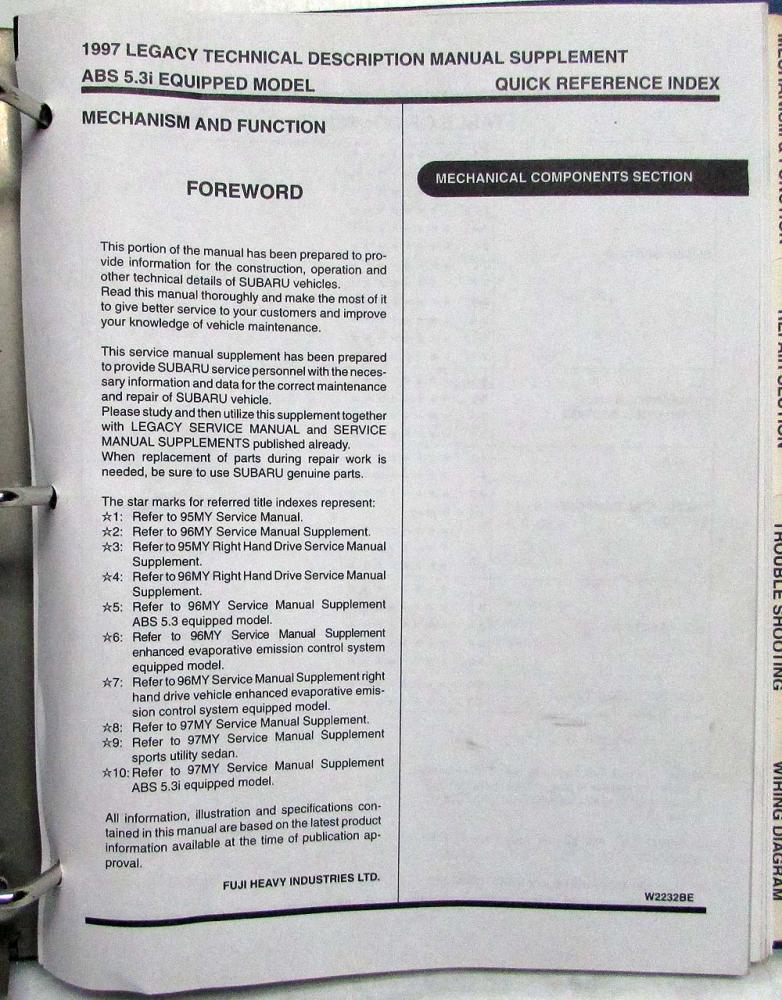

1997 Legacy Technical Description Manual Supplement ABS 5.3i Equipped Model
Mechanical Components Section 4-4
1997 Legacy Service Manual Supplement ABS 5.3i Equipped Model

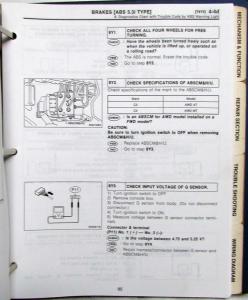

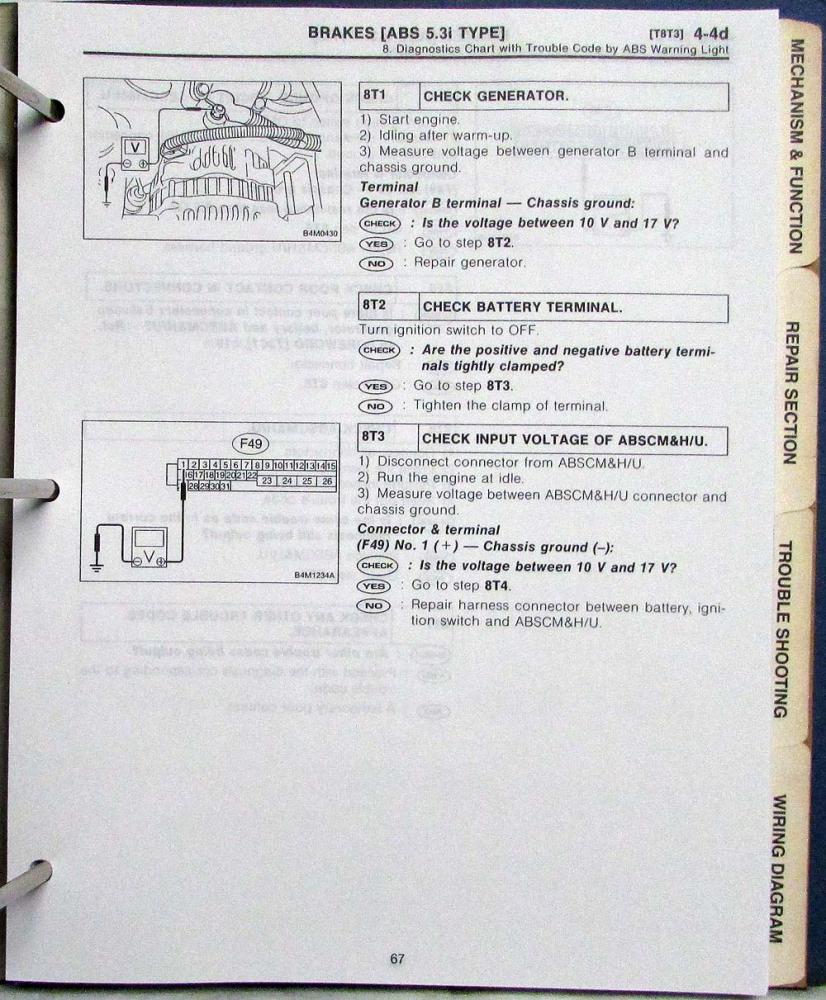

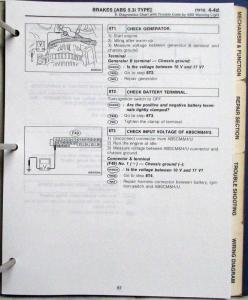

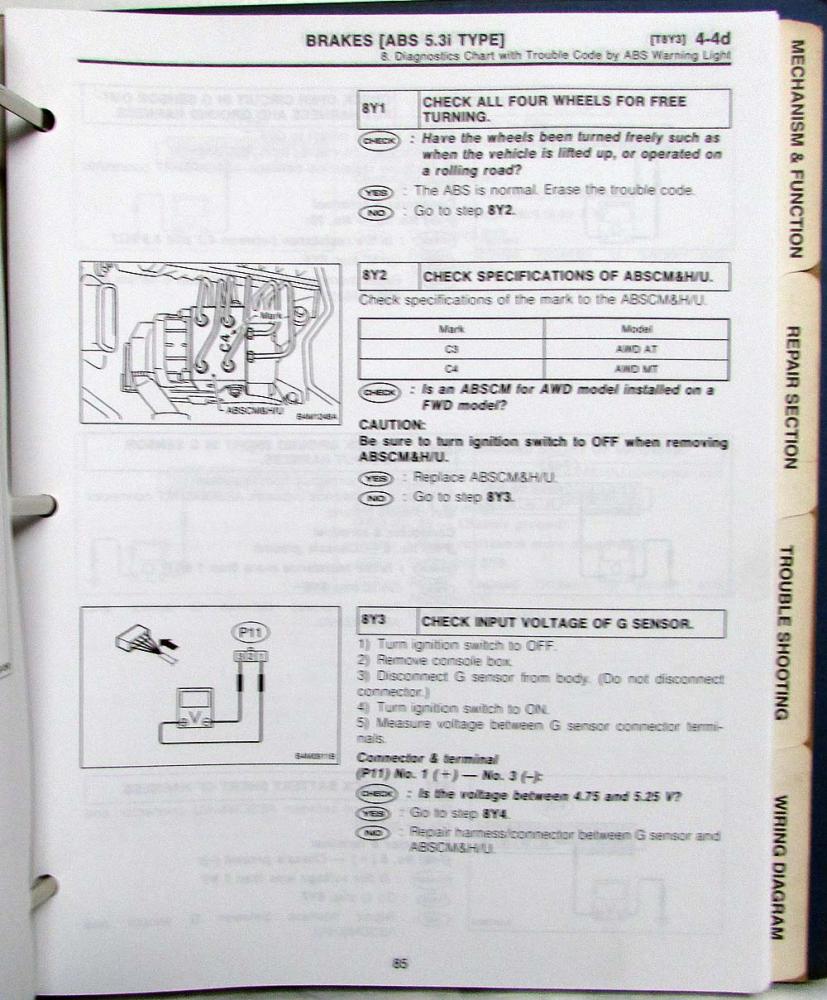

Brakes (ABS 5.3i Type) - Section 4-4d
1997 Legacy Service Manual Supplement ABS 5.3i Equipped Model
Wiring Diagram - Section 6-3
Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
