1997 Toyota Auto Transaxle Service Repair Manual A247E RAV4 US & Canada. ORIGINAL.
This repair manual covers disassembly, inspection and assembly procedures for the following automatic transaxle:
Automatic Transaxle: A247E
The descriptions and specifications contained in the manual were in effect at the time of publication. Note: These manuals were never meant as restoration manuals, as that is not within the regular scope of work done by dealership service departments.
Applicable models: RAV4

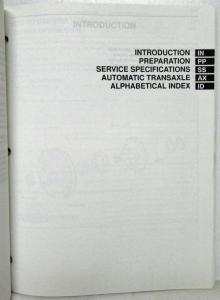

Contents:
Introduction
Preparation
Service Specifications
Automatic Transaxle
Alphatical Index
For on-vehicle servicing (inspection, adjustment, troubleshooting, removal and installation) of the automatic transaxle, refer to the repair manual for the applicable vehicle model (not included).
Condition: Service Manuals have been used in Dealerships, Independent Garages and in Fleet Environments and thus reflect such use, most often showing signs of soiling and may show other signs of age and wear, but the information within is still legible and can give valuable insight in the care and maintenance of vehicles. The images shown are reflective of the of kind of condition one might find of manuals that are shipped.
