1998 Kia Sportage Electrical Troubleshooting Vacuum Hose Manual - Preliminary

Price $22.05 $17.64 Details W: 8.5 x H: 11 x D: 0.5625 Weight 1.38 lbs. Page Count 200+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-51568 OEM Number UP 980 PS 011 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $34.00

---

Description

1998 Kia Sportage Electrical Troubleshooting and Vacuum Hose Routing. Original. Preliminary.

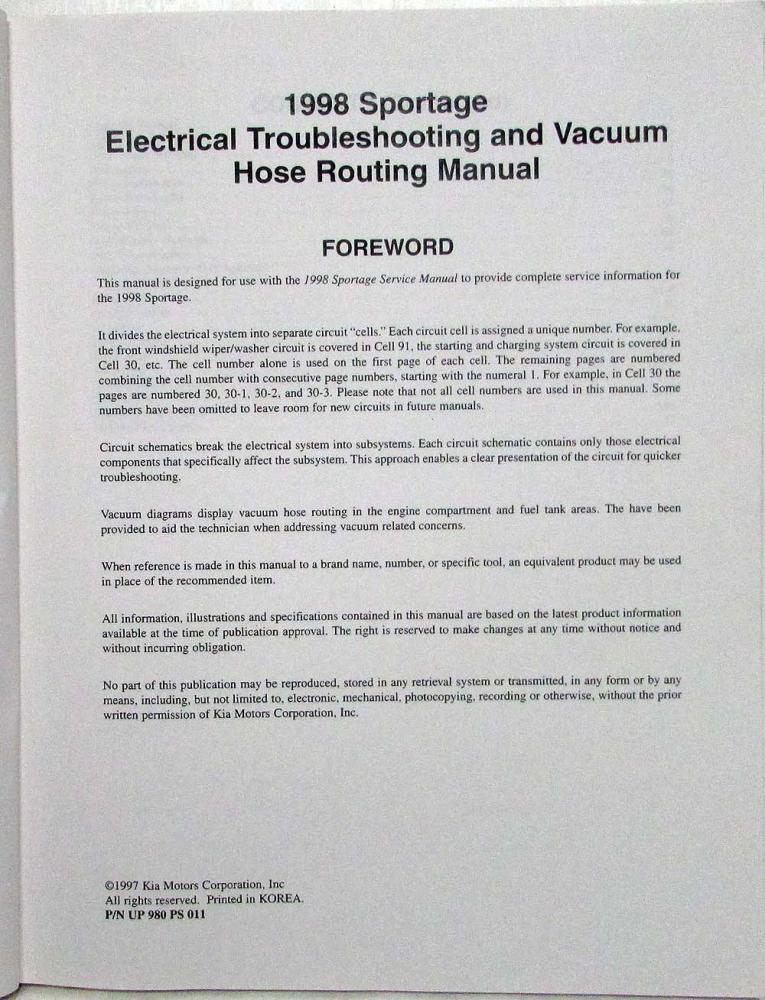

This Electronic Troubleshooting Manual and Vacuum Hose Routing Manual is designed for use with the 1998 Sportage Service Manual (NOT Included) to provide complete service information for the 1998 Sportage.

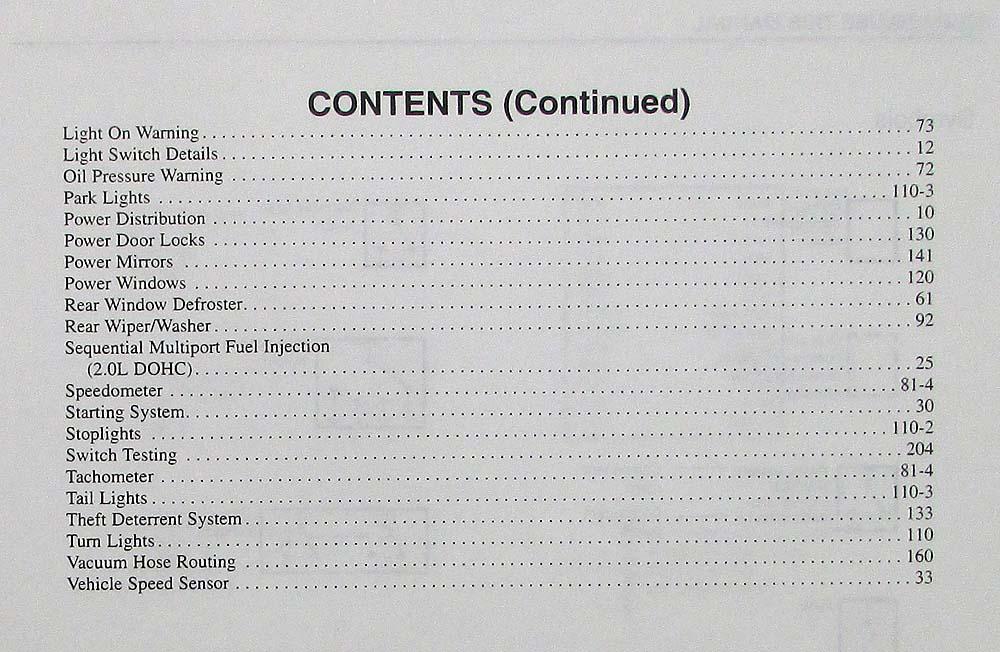

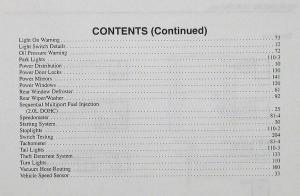

Contents:

Air Bag
Air Conditioner

Blower Controls
Compressor Controls

Audio System
Anti-Lock Braking System
A/T Gear Selection Indicator
A/T Shift Interlock System
Automatic Transmission
Back-Up Lights
Brake Warning System
Cargo Light
Charging System
Cigarette Lighter
Component Location Photographs

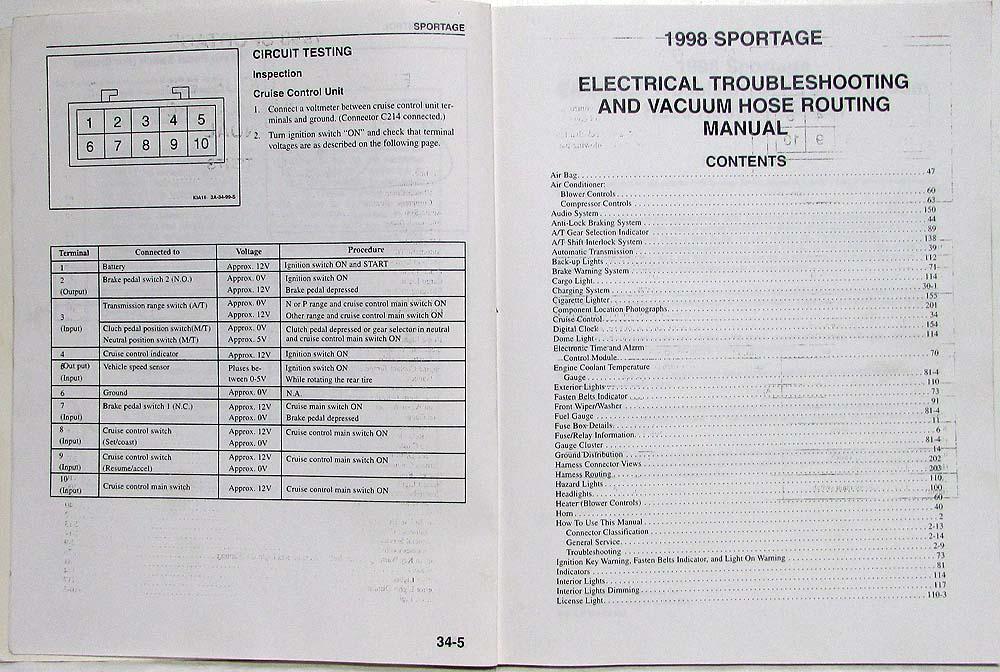

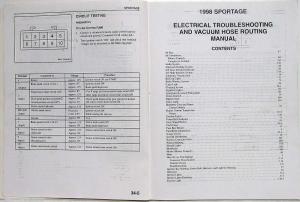

Cruise Control
Digital Clock
Dome Light
Electronic Time and Alarm Control Module
Engine Coolant Temperature Gauge
Exterior Lights
Fasten Belts Indicator
Front Wiper/Washer
Fuel Gauge
Fuse Box Details
Fuse/Relay Information
Gauge Cluster
Ground Distribution
Harness Connector Views
Harness Routing
Hazard Lights
Headlights
Heater (Blower Controls)
Horn
How to Use This Manual

Connector Classification
General Service
Troubleshooting

Ignition Key Warning, Fasten Belts Indicator and Light On Warning
Indicators
Interior Lights
Interior Lights Dimming
License Light
Light On Warning
Light Switch Details
Oil Pressure Warning
Park Lights
Power Distribution
Power Door Locks
Power Mirrors
Power Windows
Rear Window Defroster
Rear Wiper/Washer
Sequential Multiport Fuel Injection (2.0L DOHC)
Speedometer
Starting System
Stoplights
Switch Testing
Tachometer
Tail Lights
Theft Deterrent System
Turn Lights
Vacuum Hose Routing

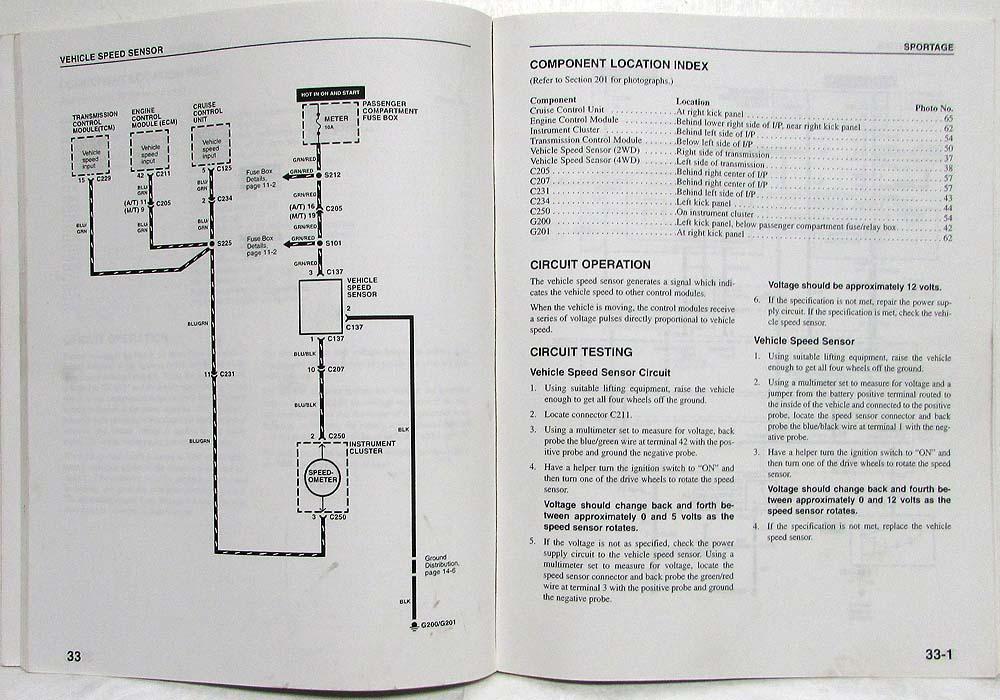

Vehicle Speed Sensor

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
