1998 Mazda B-Series Pickup Truck Electrical Wiring Diagram

Price $49.00 $39.20 Details W: 8.5 x H: 11 x D: 0.375 Weight 0.88 lbs. Page Count 154 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45099 OEM Number 9999-95-020G-98 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $33.35
Description

1998 Mazda B-Series Electrical Wiring Diagram. Original.

This wiring diagram incorporates the wiring schematics of the basic vehicle and available optional equipment. Actual vehicle wiring may vary slightly depending on optional equipment or local specifications, or both.

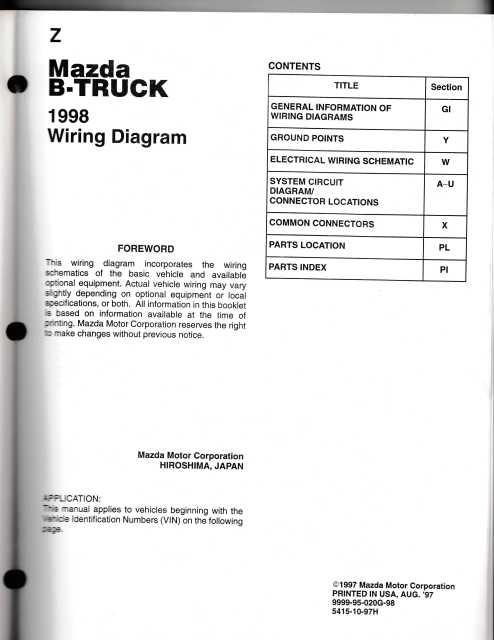

Contents:

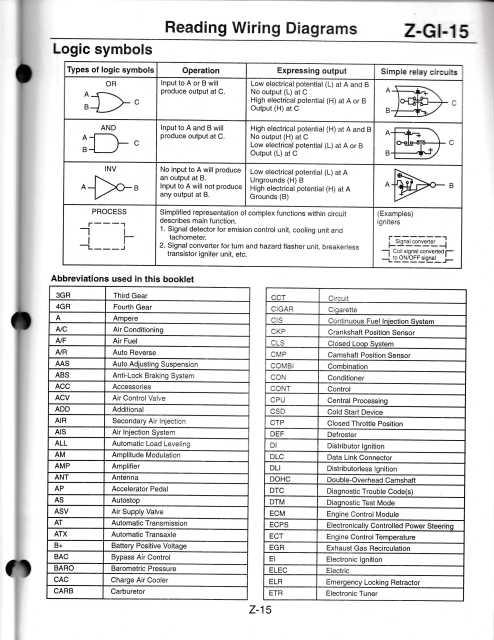

General Information of Wiring Diagrams
Ground Points
Electrical Wiring Schematic

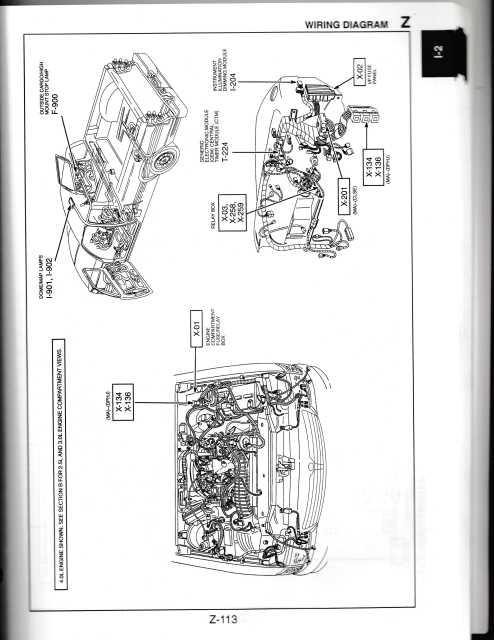

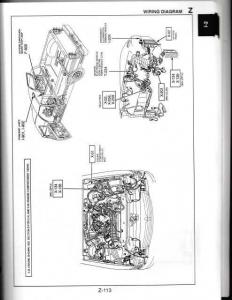

System Circuit Diagram/Connector Locations
Common Connectors
Parts Location
Parts Index

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
