1998 Mazda Millenia Electrical Wiring Diagram

Price $39.00 $31.20 Details W: 8.5 x H: 11 x D: 0.25 Weight 0.75 lbs. Page Count 124 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45096 OEM Number 9999-95-036G-98 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $33.35

Description

1998 Mazda Millenia Electrical Wiring Diagram. Original.

1998 Mazda Millenia Wiring Diagram Service Manual. This manual was used by the Mazda Dealership to diagnose and identify electrical problems on the Mazda Millenia.

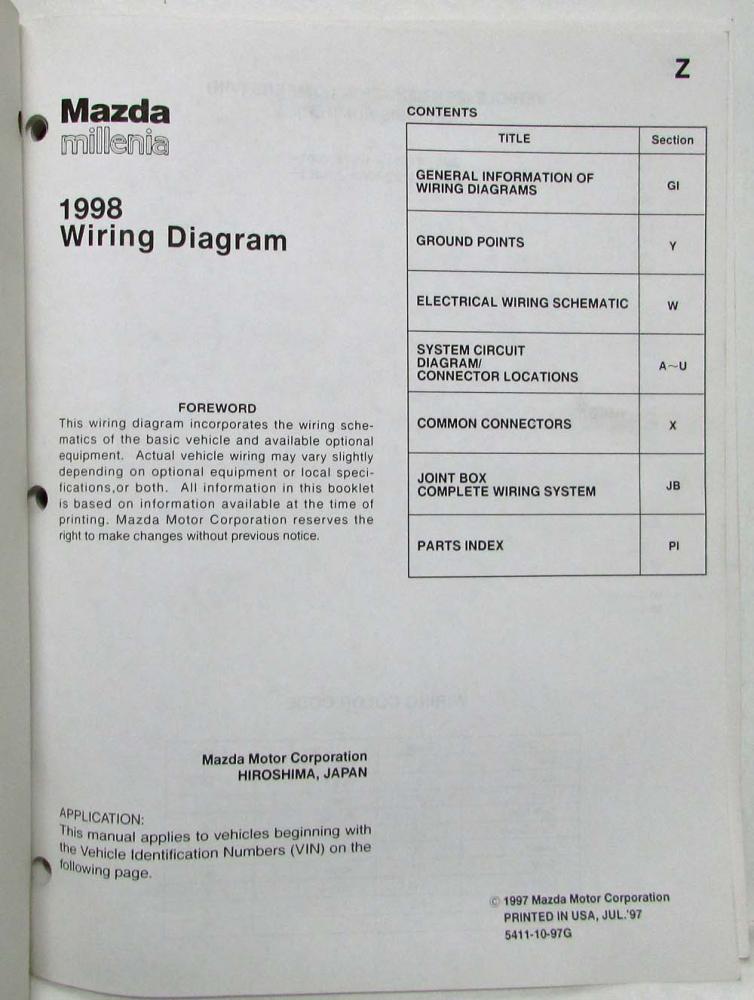

Contents:
General Information of Wiring Diagrams
Ground Points

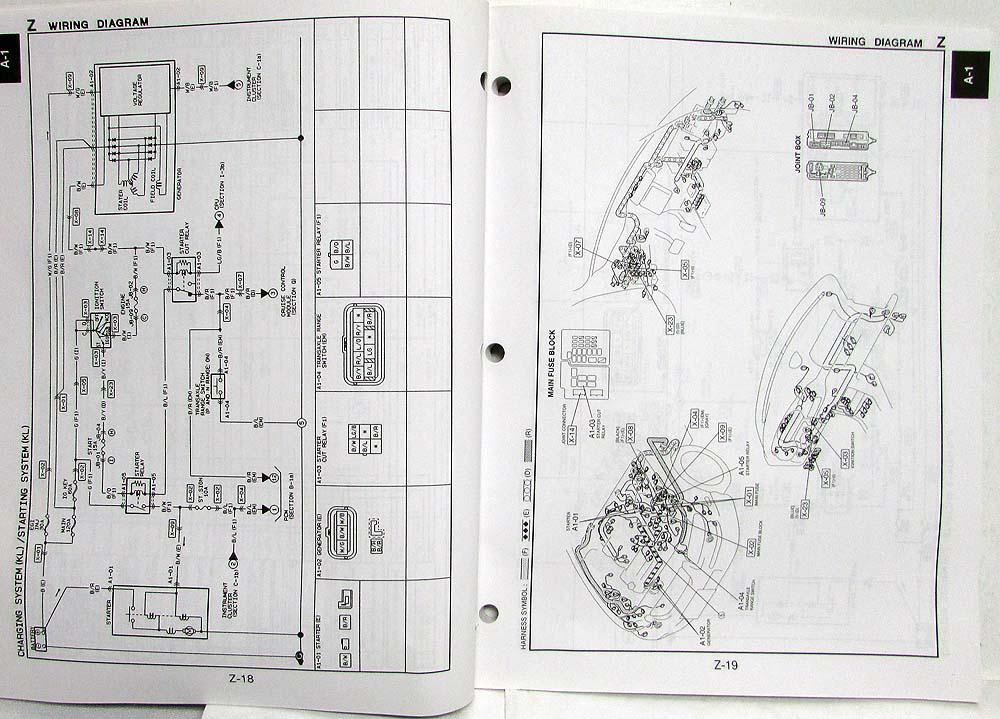

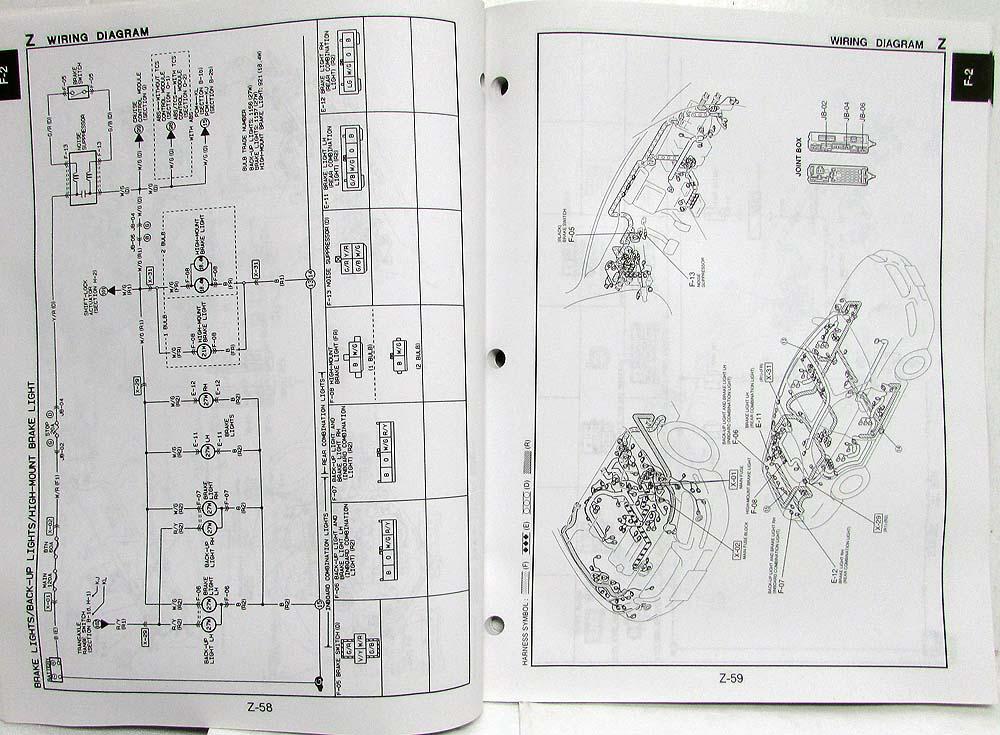

Electrical Wiring Schematic
System Circuit Diagram/Connector Locations
Common Connectors
Joint Box Complete Wiring Systems
Parts Index

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
