2002 Kia Sportage Electrical Troubleshooting Manual

Price $29.05 $23.24 Details W: 8.5 x H: 10.75 x D: 0.125 Weight 0.44 lbs. Page Count 83 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-51554 OEM Number UP020-PS-011
Flat US shipping rate: $5.95
Flat International shipping rate: $35.75

---

Description

2002 Kia Sportage Electrical Troubleshooting Manual. Original.

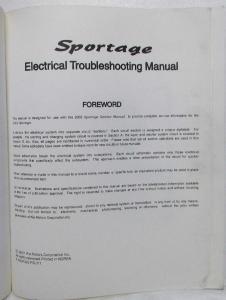

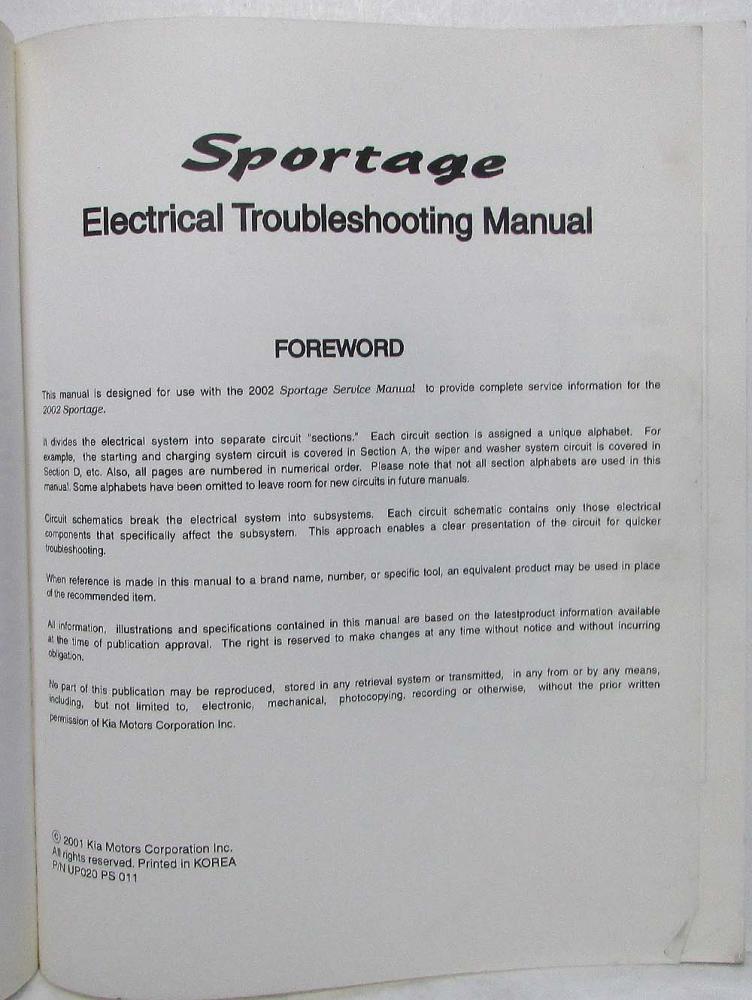

This Electronic Troubleshooting Manual (ETM) is designed for use with the 2002 Sportage Service Manual (NOT Included) to provide complete service information for the 2002 Sportage.

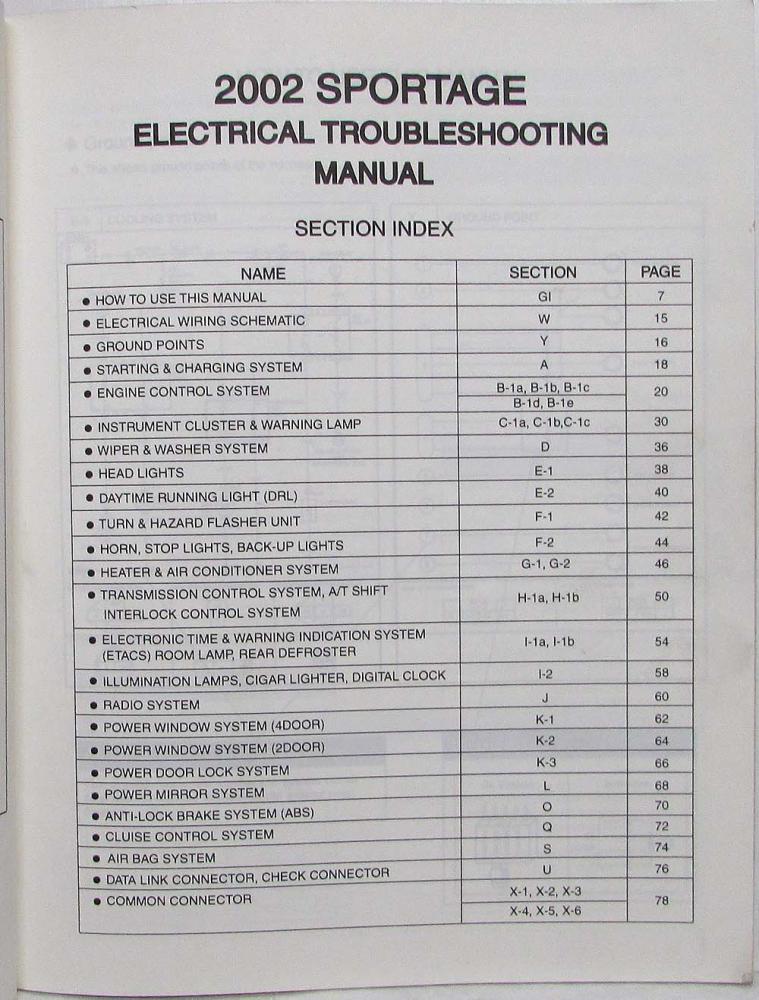

Contents:

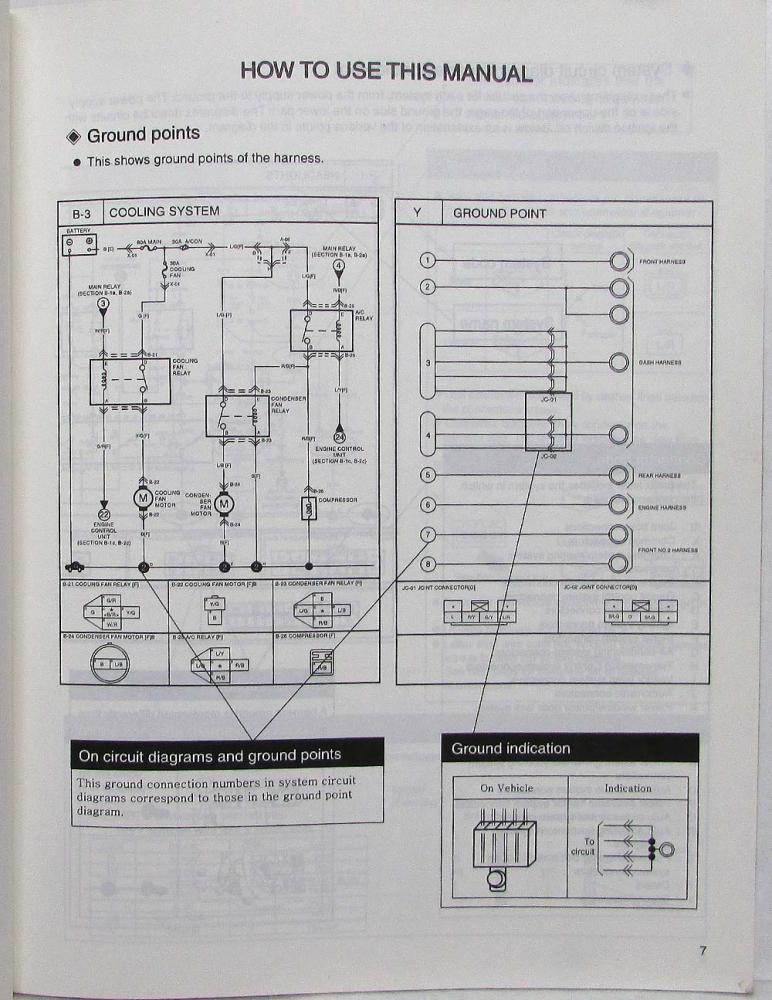

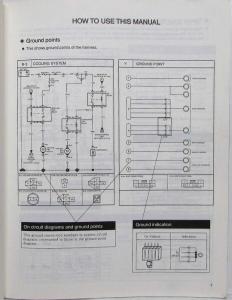

How to Use This Manual
Electrical Wiring Schematic
Ground Points

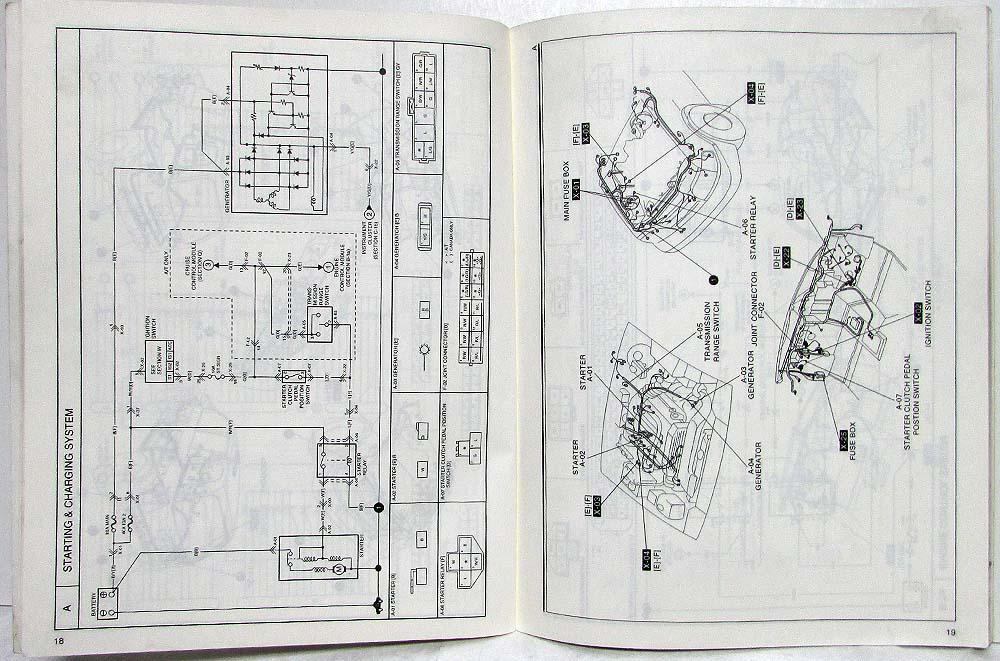

Starting & Charging System
Engine Control System
Instrument Cluster & Warning Lamp
Wiper & Washer System
Head Lights
Daytime Running Lights (DRL)
Turn & Hazard Flasher Unit
Horn, Stop Lights, Back-Up Lights
Heater & Air Conditioner System
Transmission Control System, A/T Shift Interlock Control System
Electronic Time & Warning Indication System (ETACS) Room Lamp, Rear Defroster
Illumination Lamps, Cigar Lighter, Digital Clock
Radio System
Power Window System (4Door)
Power Window System (2Door)
Power Door Lock System
Power Mirror System
Anti-Lock Brake System (ABS)
Cruise Control System
Air Bag System
Data Link Connector, Check Connector
Common Connector

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.

Out of Stock.
