2004 Mazda B-Series Pickup Truck Electrical Wiring Diagram

Price $49.00 $39.20 Details W: 8.5 x H: 11 x D: 0.25 Weight 0.56 lbs. Page Count 168 Condition Used Original - Good Item Type Factory Manual Inventory Number SM-45158 OEM Number 9999-95-020G-04 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $33.35

Description

2004 Mazda B-Series Pickup Truck Electrical Wiring Diagram. Original.

2004 Mazda B-Series Truck Electrical Wiring Diagram Service Manual. This manual was used by the Mazda Dealership to help diagnose and identify electrical problems on the Mazda B-Series Pickup Trucks.

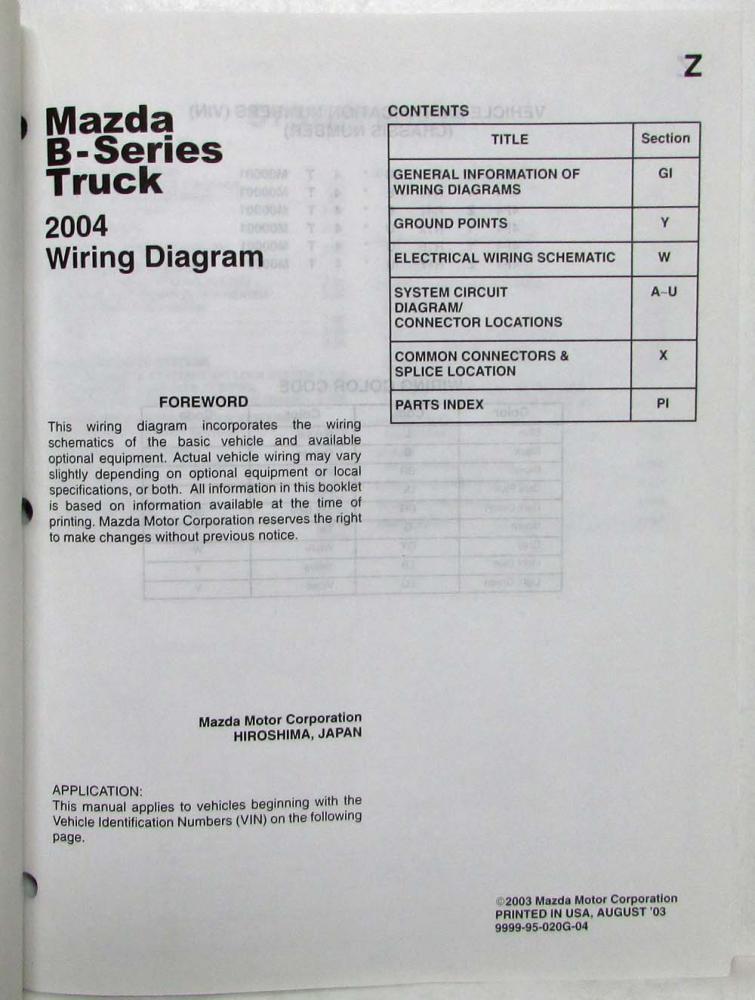

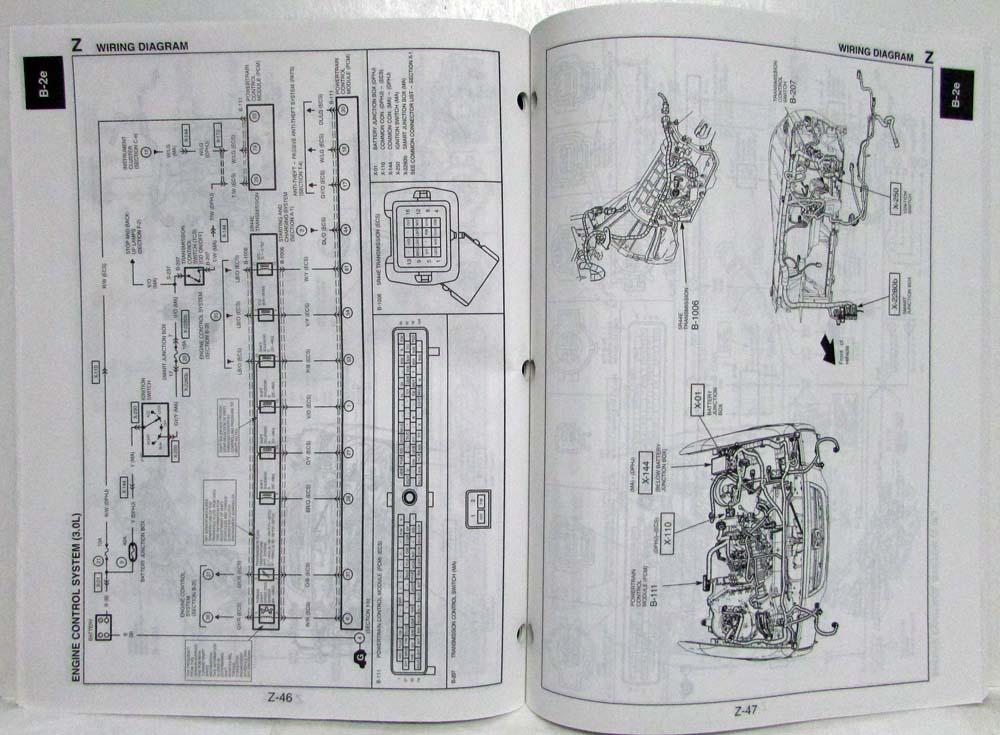

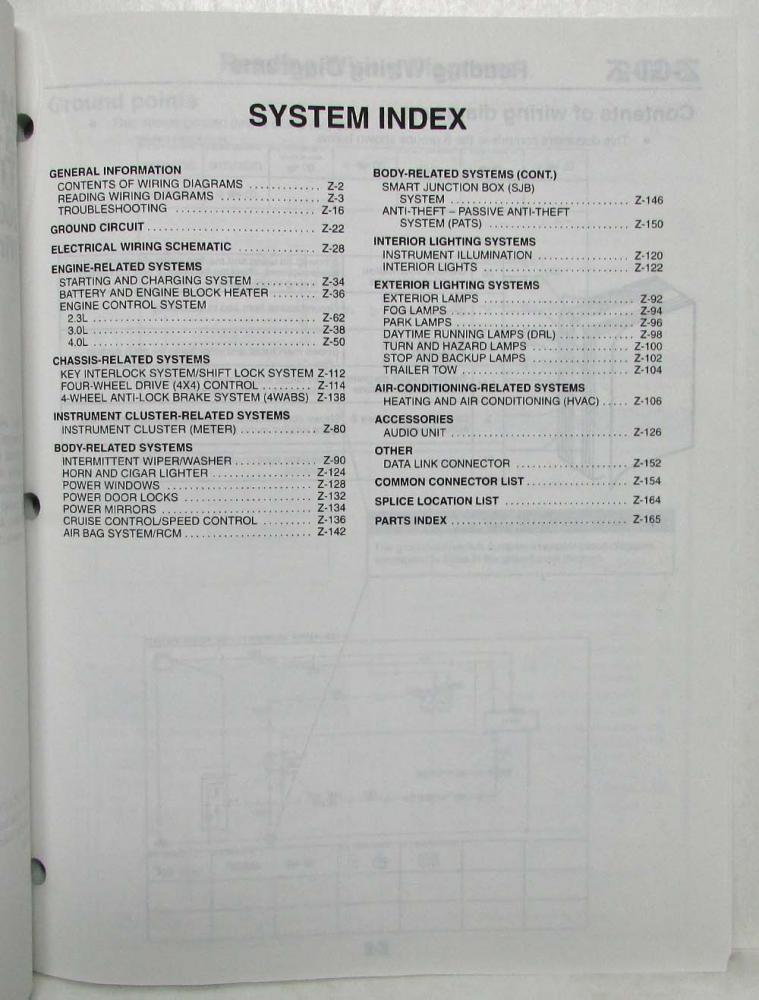

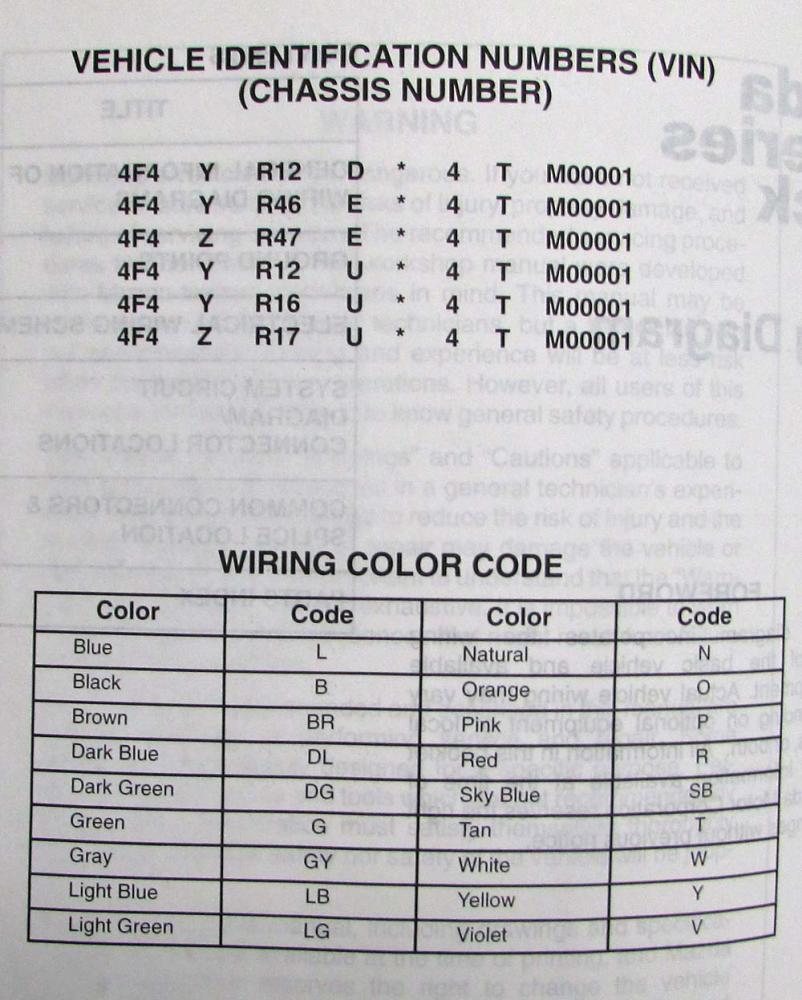

Condition: Service Manuals are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling, age, and wear. The information within is still legible and can give valuable insight. The images shown are representative of what is shipped.
