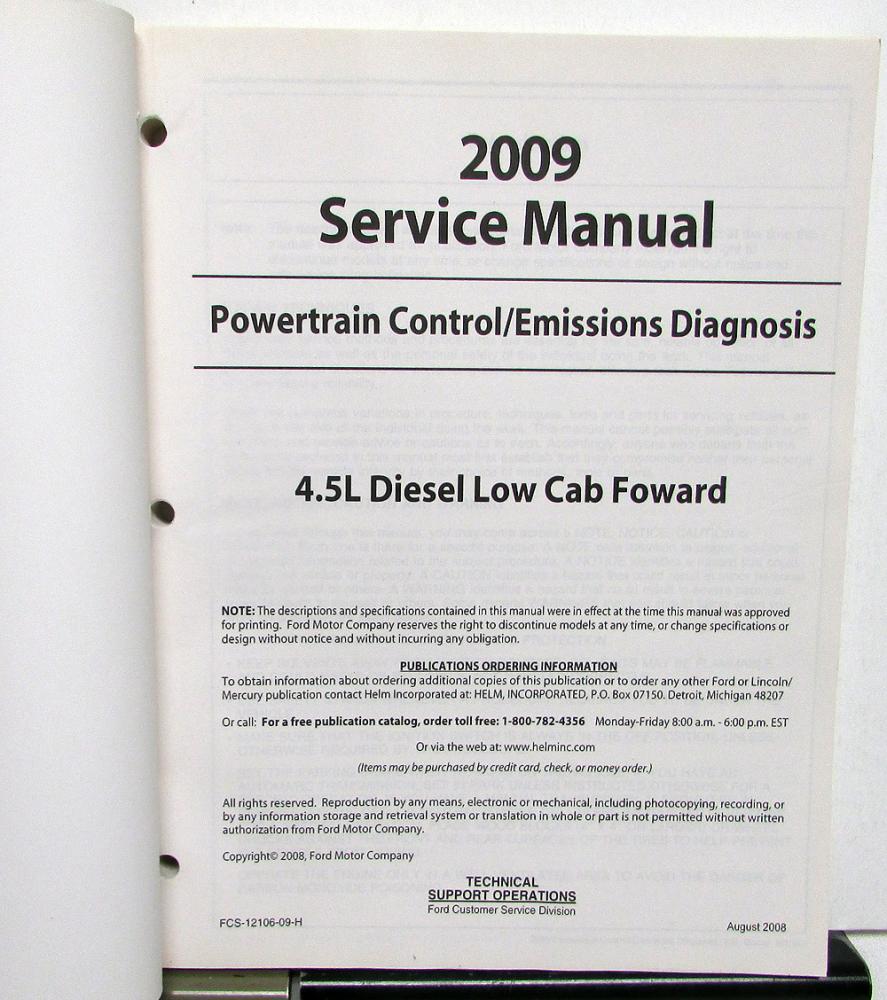

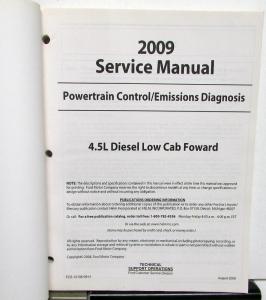

2009 Ford 4.5L LCF Diesel Powertrain Control Emissions Diagnosis Service Manual

Price $24.00 $19.20 Details W: 8.5 x H: 11 x D: 0.5625 Weight 1.25 lbs. Page Count 300+ Condition Used Original - Good Item Type Factory Manual Inventory Number SM-34953 OEM Number FCS-12106-09-H In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $42.00
Description

2009 Ford 4.5L Low Cab Forward Diesel Powertrain Control/Emissions Diagnosis Service Manual. ORIGINAL

Information contained within this official Ford Motor Company reference manual provides the user a step-by-step approach for diagnosing drivability, emission and power train control system symptoms. This manual should be used in conjunction with the Shop Manual and Wiring Diagram.

Appropriate service methods and procedures are essential for the safe, reliable operation of all motor vehicles as well as the personal safety of the individual doing the work. This manual provides general directions for performing service with tested, effective techniques. Following them will help assure reliability. There are numerous variations in procedure, techniques, tools and parts for servicing vehicles, as well as in the skill of the individual doing the work. This manual cannot possibly anticipate all such variations and provide advice or cautions as to each. The descriptions and specifications contained in the manual were in effect at the time of publication.

Applicable models:
Low Cab Forward

Contents:

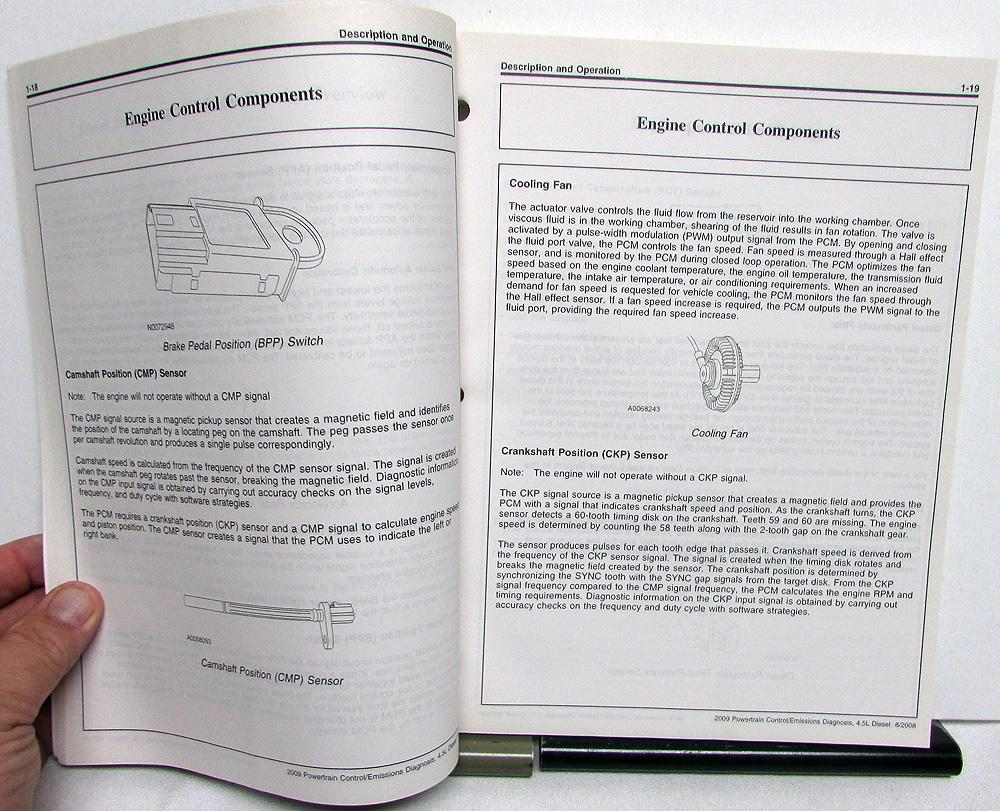

Description and Operation

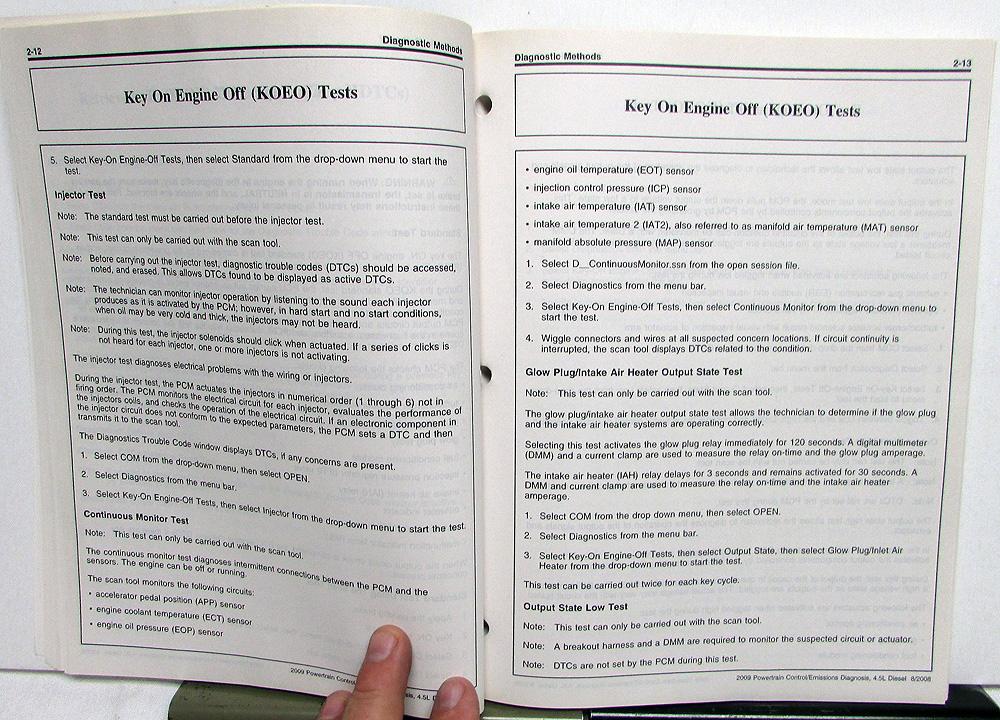

Diagnostic Methods
Symptom Charts

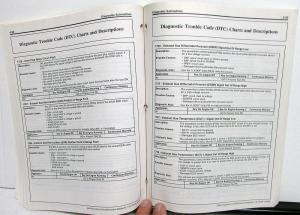

Powertrain Diagnostic Trouble Code (DTC) Charts and Descriptions
Pinpoint Tests
Reference Values

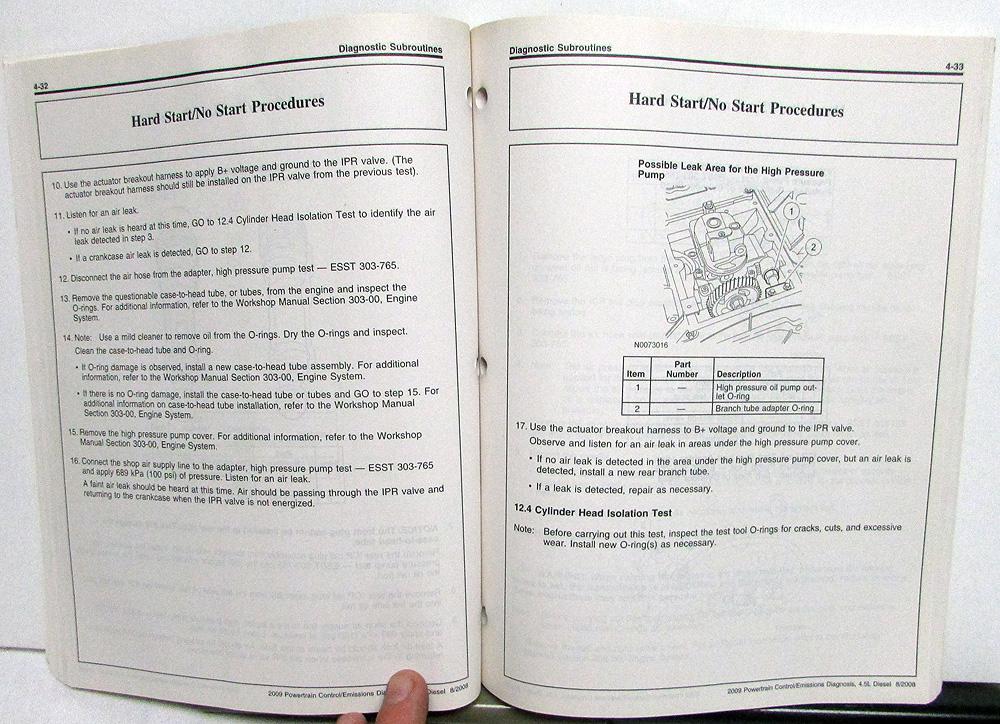

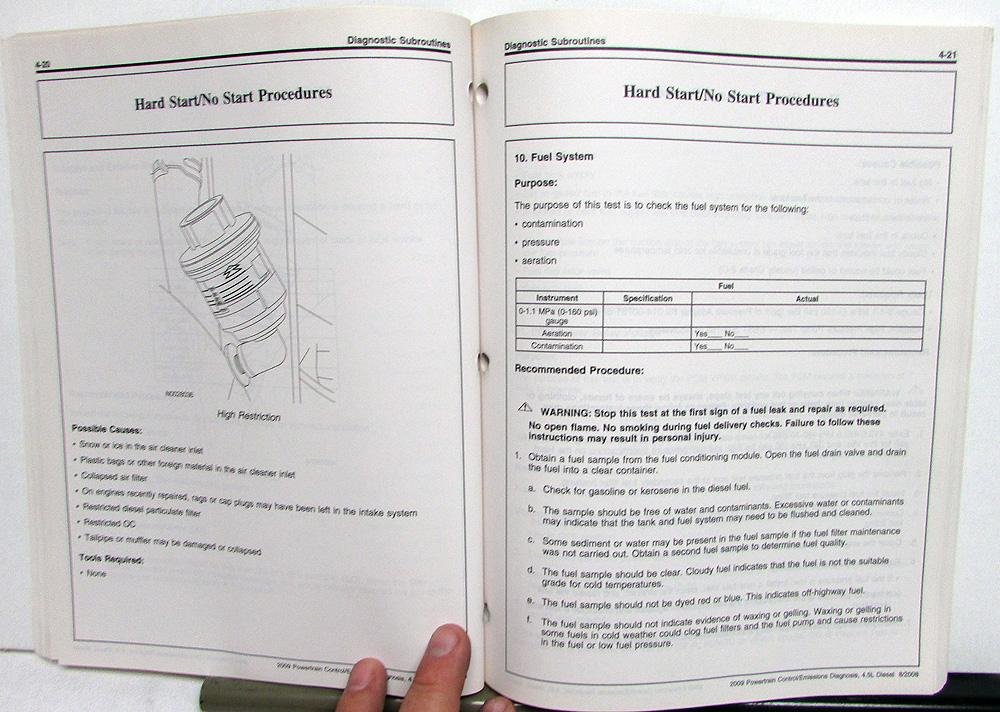

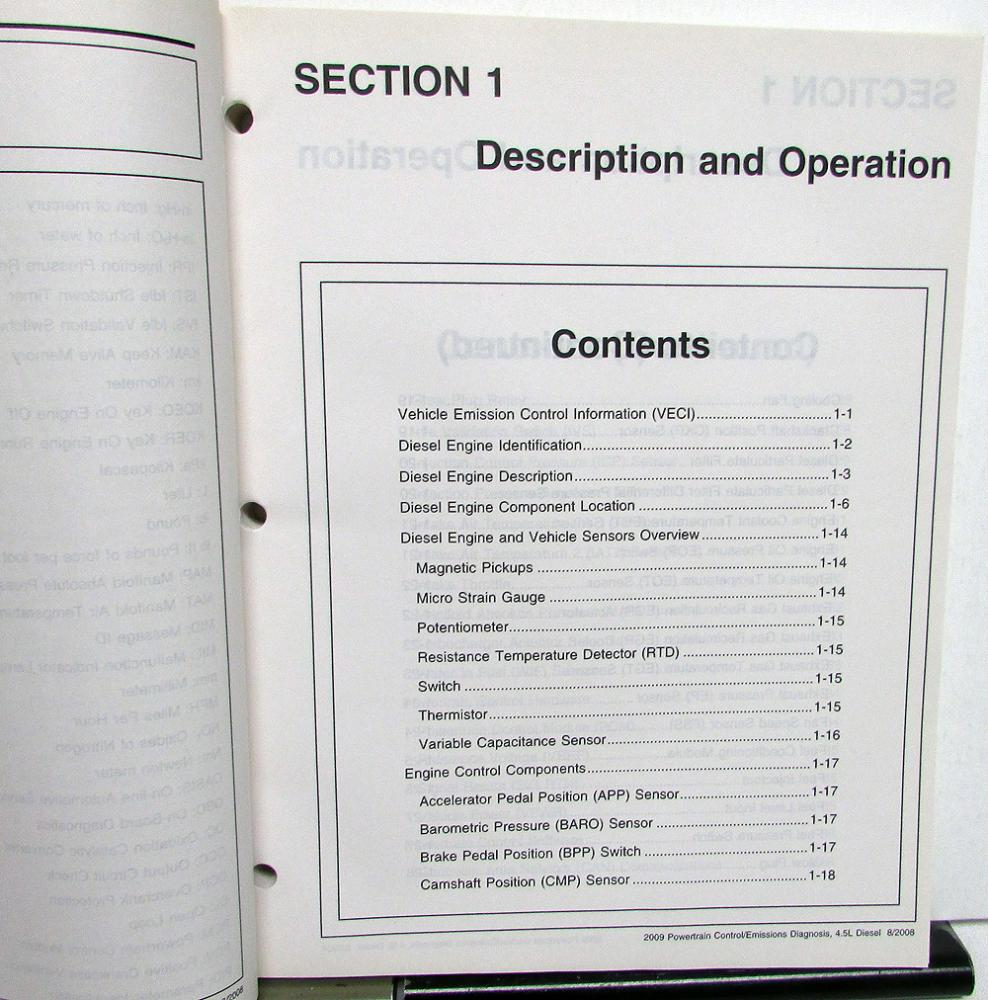

Very good condition with minor wear [see photos].
