2011 Ford Flex Electrical Wiring Diagrams Manual

Price $29.00 $23.20 Details W: 11 x H: 8.5 x D: 0.75 Weight 1.66 lbs. Page Count 350+ Condition Used Original - Excellent Item Type Factory Manual Inventory Number SM-28211 OEM Number FCS-15107-11 In Stock
Flat US shipping rate: $8.95
Flat International shipping rate: $40.55
Description

2011 Ford Flex Electrical Wiring Diagrams. ORIGINAL. Ford Authorized Manual by Helm, Inc.

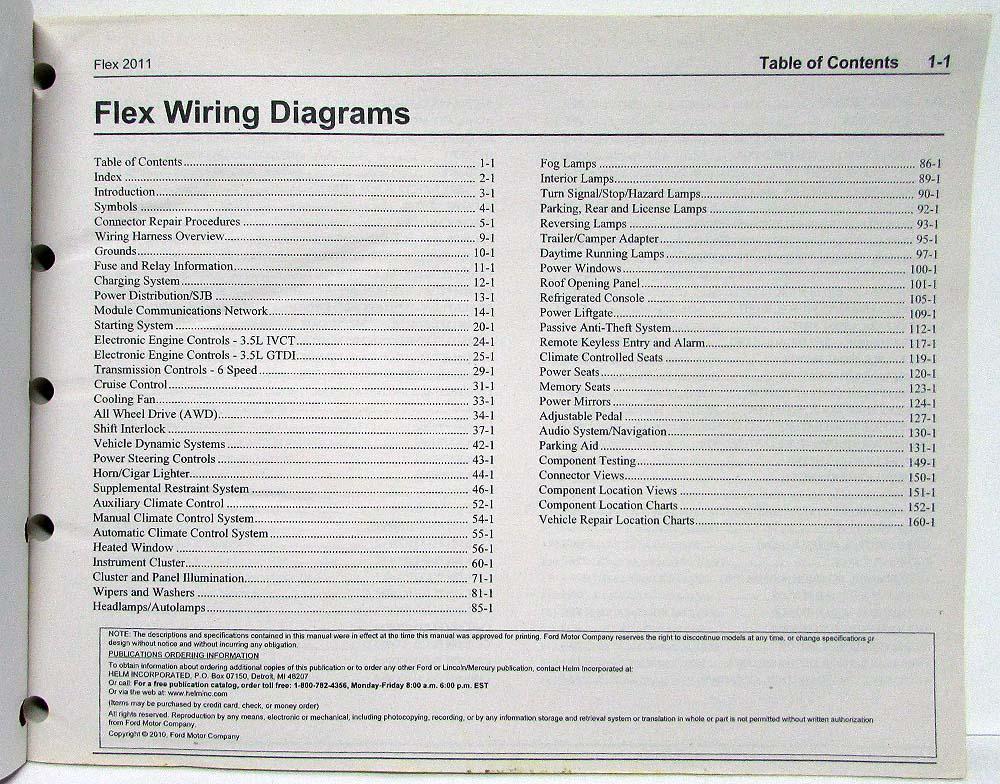

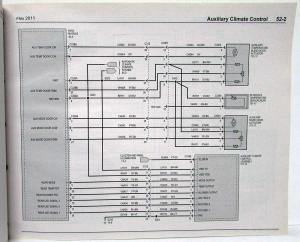

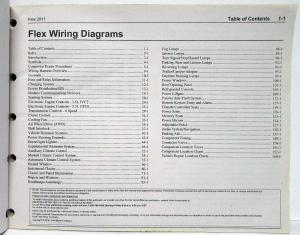

Detailed wiring schematics, illustrations and component descriptions developed by Ford Motor Company. Information contained in each vehicle specific manual, has been developed to aid technicians in diagnosing and repairing vehicle wiring and electrical systems. Each manual covers the entire vehicle bumper to bumper including connectors, splices, grounds and component location and testing.

Years/Models Covered
2011 / Flex

Keywords: 1st Generation, AWD, 3.5L IVCT, 3.5L GTDI

Condition: What you see pictured is what you get. Fresh from a Ford Dealership. Light use in the shop, if any. Wiring Diagrams are used in Dealership Shops, Independent Garages and in Fleet Environments and thus can reflect such use, most often showing extensive signs of soiling you aren't seeing here.
